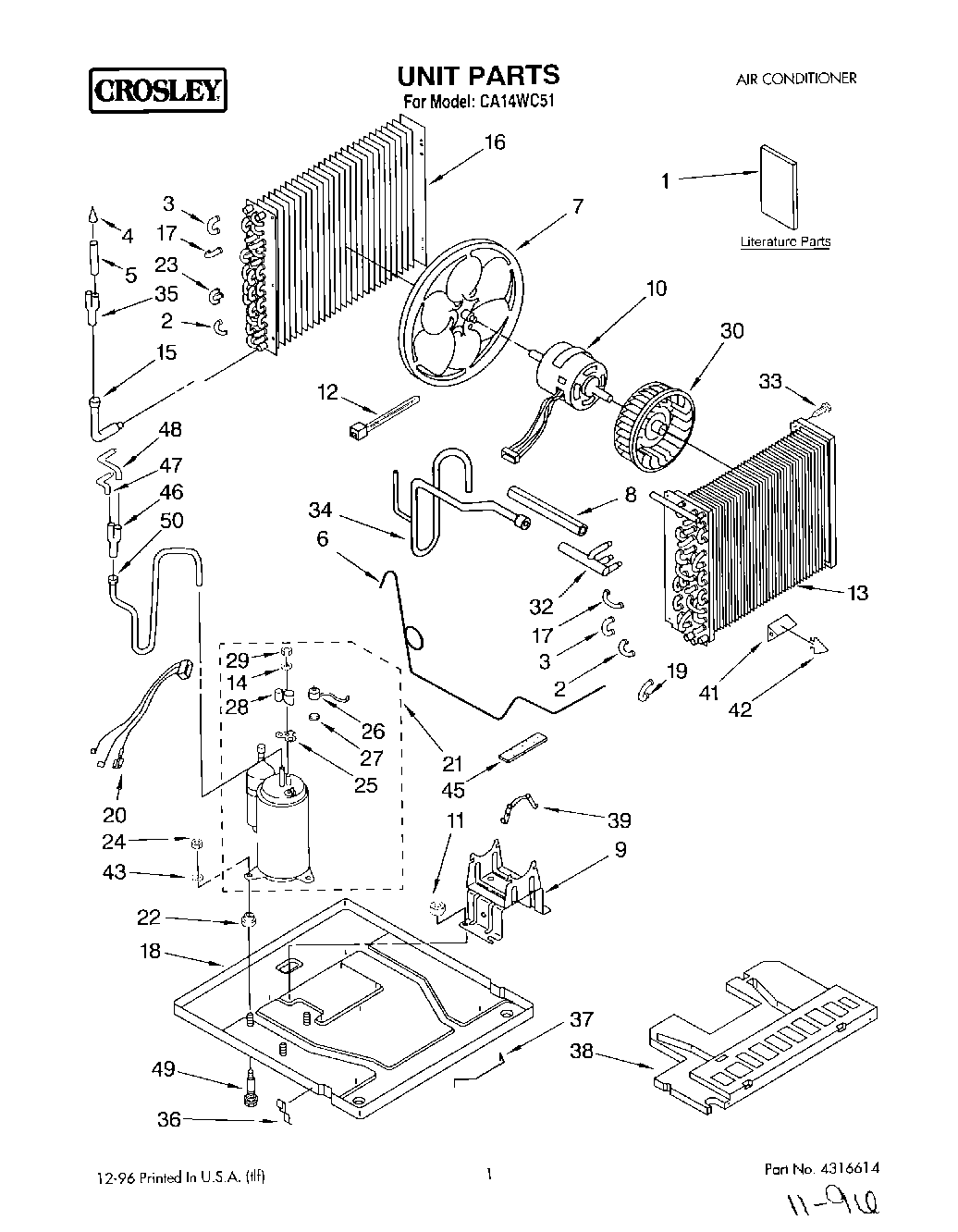

CA14WC51 01 – UNIT, LITERATURE

Products

Position	Product
1	Owners Manual
1	Tech Sheet
1	Wiring Diagram
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (3)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket, Nut
15	Tube, Connecting
16	Condenser
17	Tube, Riser (2)
18	Base
19	Bend, Return Condenser (1)
20	Harness, Wiring (Compressor Service)
21	Compressor
22	WP950021 Whirlpool Grommet
23	Bend, Return (3-Way)
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	Overload, Protector
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Wheel, Blower
32	Manifold, Suction
33	WP489069 Whirlpool Compactor Screw
34	Tube, Suction
35	Tube, Flow Divider
36	Clamp (2)
37	WPL 647971
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
41	Anticipator
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
45	Seal, Restrictor Tube
46	Flow, Divider
47	Tube, Feeder
48	Tube, Feeder
49	Bolt, Compressor
50	Tube, Discharge
