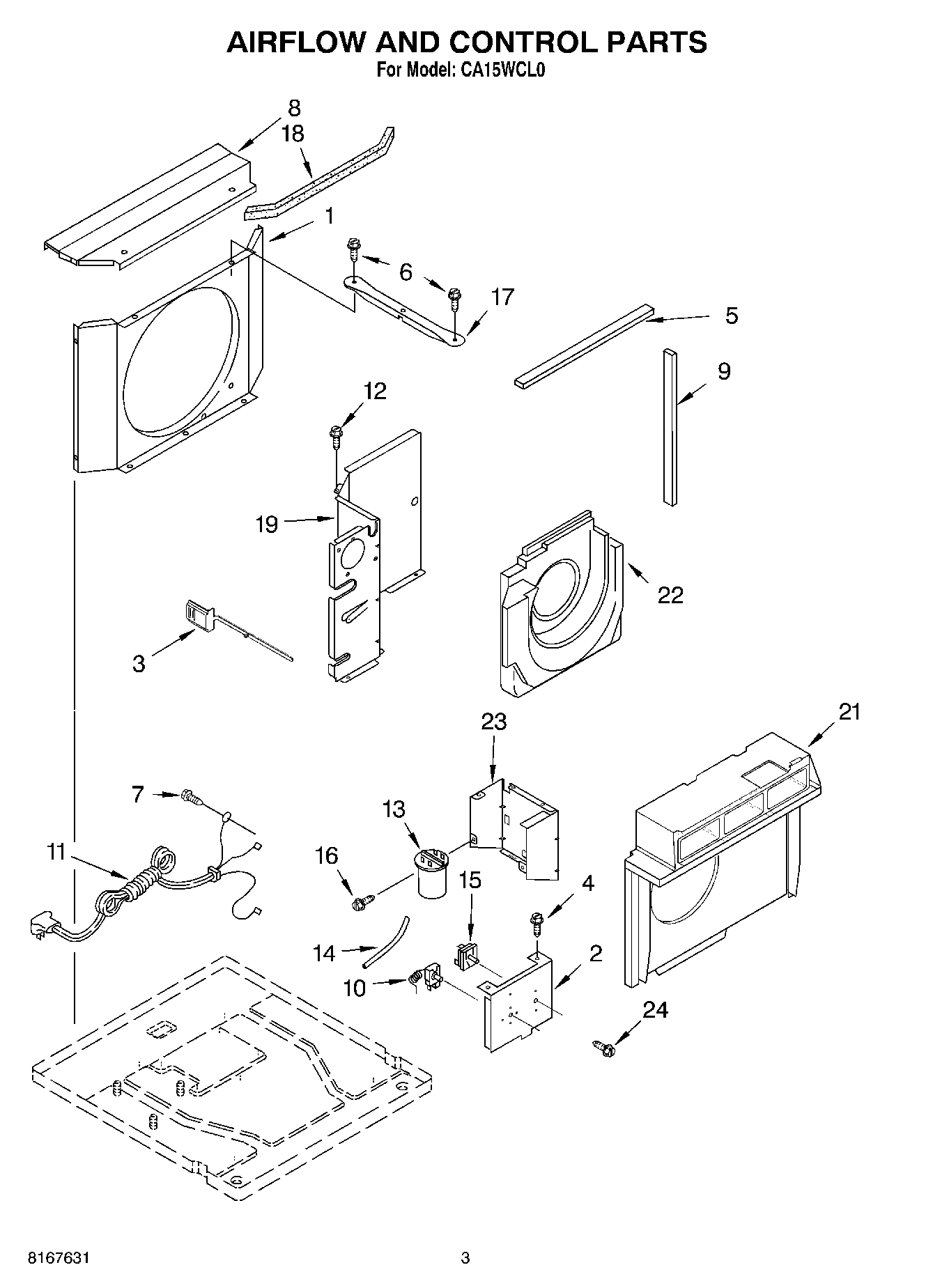

CA15WCL0 02 – AIR FLOW AND CONTROLadmin2025-04-26T10:52:10+00:00CA15WCL0 02 – AIR FLOW AND CONTROL
Products
| Position | Product |
|---|
| 1 | Shroud, Condenser |
| 2 | Panel, Control |
| 3 | Door, Exhaust |
| 4 | Screw 8-18 x .295 |
| 5 | Seal (Top) |
| 6 | WP308685 Whirlpool Microwave Screw |
| 8 | Top, Condenser |
| 9 | Seal (Side) |
| 10 | Thermostat |
| 11 | Cord, Appliance |
| 12 | Screw, 8 x 3/8 |
| 13 | Capacitor |
| 14 | Sleeve, Insulator |
| 15 | Switch, Rotary |
| 16 | WP489069 Whirlpool Compactor Screw |
| 17 | Support, Unit (2) |
| 18 | Seal, Shroud |
| 19 | Dividing Wall |
| 21 | Shroud Assembly, Evaporator |
| 22 | Housing, Air |
| 23 | Control Box |
| 24 | Screw, 6-32 x .175 |
