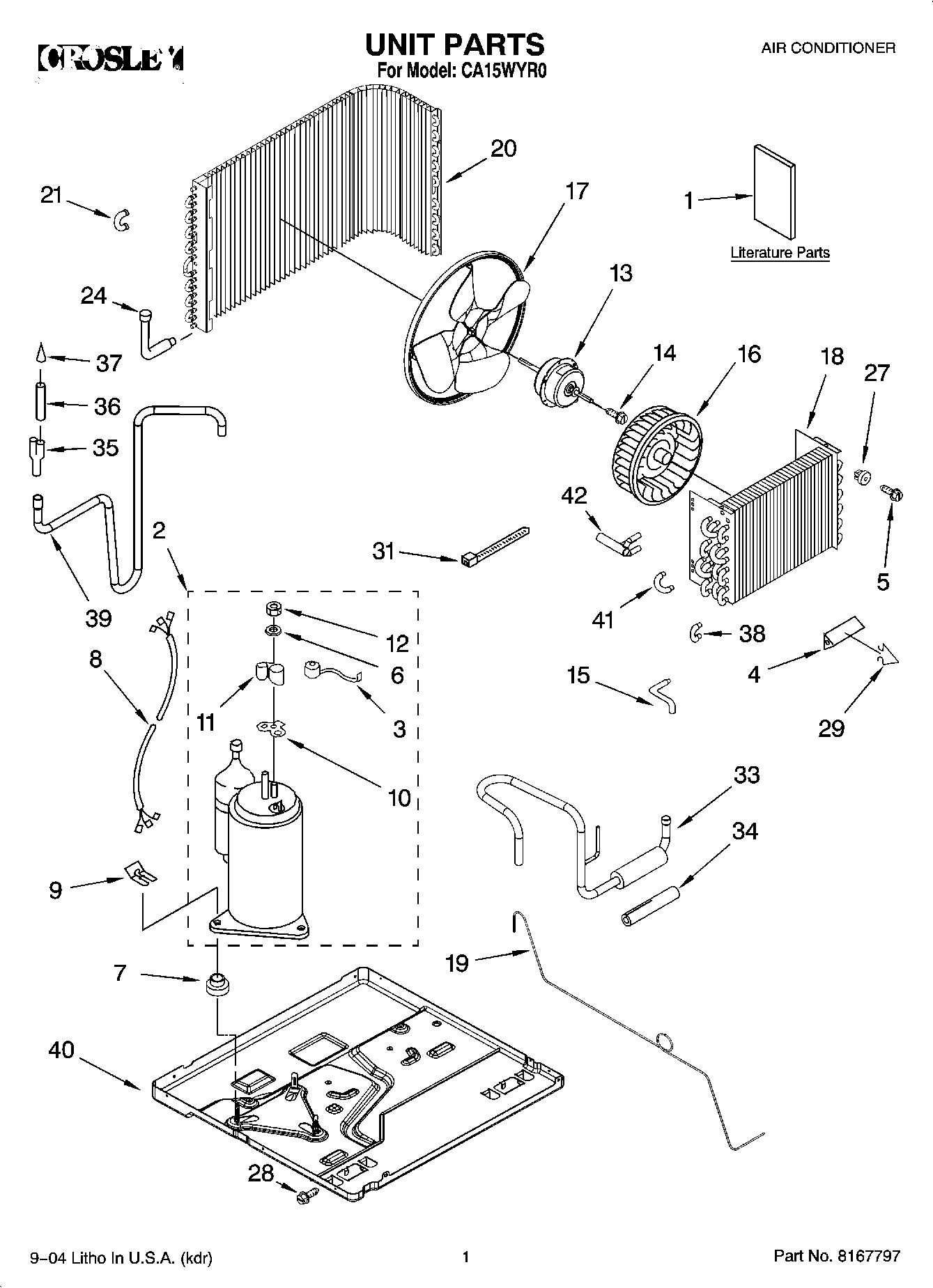

CA15WYR0 01 – UNIT PARTS

CA15WYR0 01 – UNIT PARTS

Written by

in

CA15WYR0 01 – UNIT PARTS

Products

PositionProduct
1Energy Guide
1Use & Care Guide
1Wiring Diagram
2Compressor
3Overload
4Anticipator, Temperature
5WP489463 Whirlpool Refrigerator Screw
6Gasket
7WP950021 Whirlpool Grommet
8Harness, Wiring Compressor
9Clip, Compressor
10Gasket, Terminal Cover
11Cover, Terminal
12W10833054 Whirlpool Air Conditioner Mounting Nut
13Motor, Fan
14WPW10109200 Whirlpool Screw
15Tube, Feeder
16Wheel, Blower
17Blade, Fan
18Evaporator
19Tube, Restrictor
20Condenser
21Bend, Return
24Tube, Connecting
27Grommet, Screw
28Screw, 8 x 3/8
29Clip, Anticipator
31WPW10339879 Whirlpool Wire Tie
33Tube, Suction (Includes Item 34)
34Seal, Suction Tube
35Tube, Flow Divider
36Tube, Outlet (Includes Illus. 24)
37Strainer
38Bend, Return Evaporator (11)
39Tube, Discharge
40Base
41Bend, Return Evaporator (4)
42Manifold, Suction
42REFRIGERANT CHARGE 20.00 oz.
