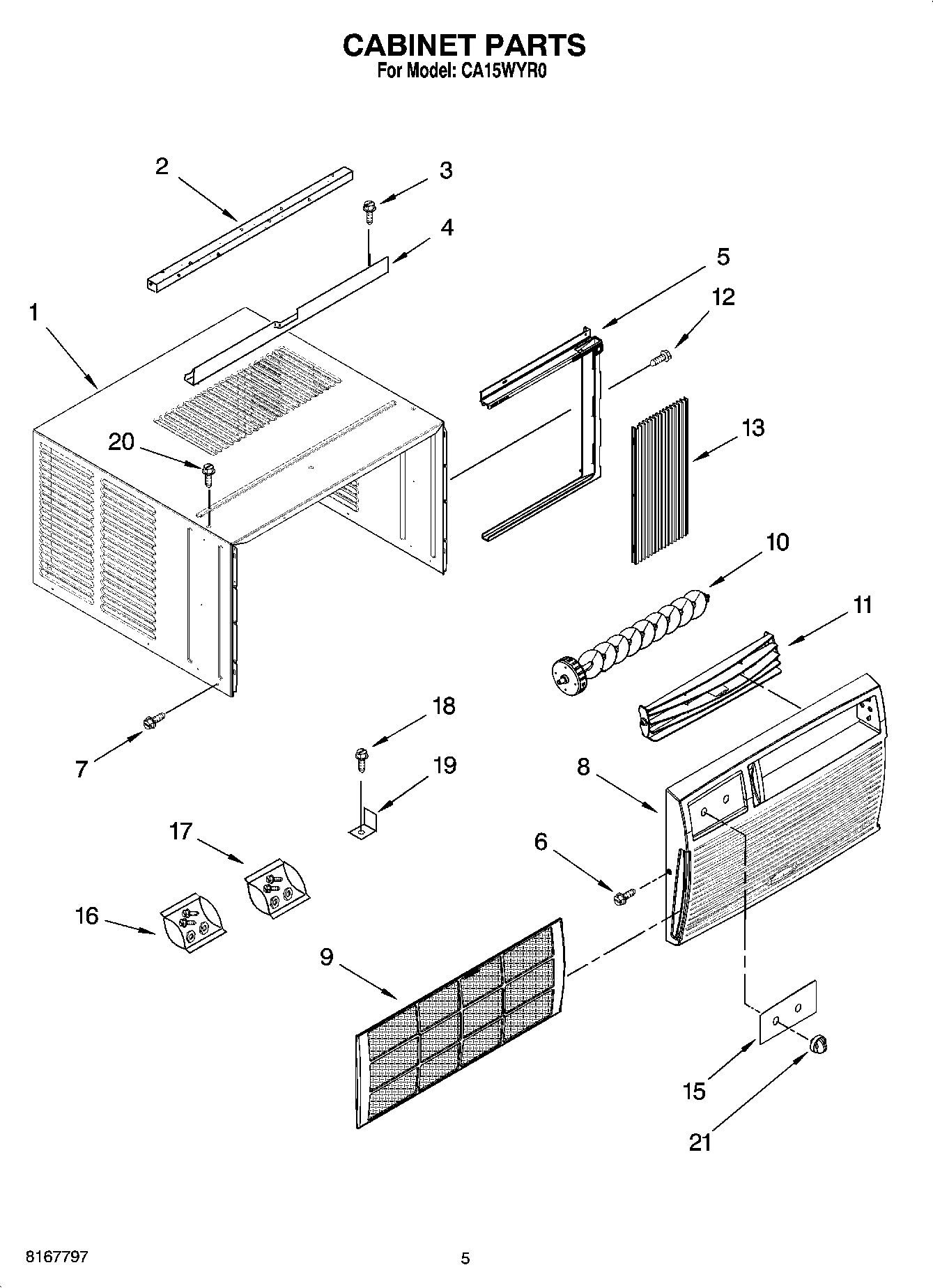

CA15WYR0 03 – CABINET PARTSadmin2025-04-26T10:53:16+00:00CA15WYR0 03 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | CABINET |
| 2 | Gasket, Meeting Rail |
| 3 | WP3390631 Whirlpool Screw |
| 4 | Channel, Top |
| 5 | Frame, Curtain (Left Side) |
| 5 | Frame, Curtain (Right Side) |
| 6 | WP3196557 Whirlpool Screw |
| 7 | Screw, 8 x 3/8 |
| 8 | Front |
| 9 | Filter |
| 10 | Louver, Vertical |
| 11 | Louver Horizontal |
| 12 | WP965173 Whirlpool Dishwasher Screw |
| 13 | CURTAIN |
| 15 | Escutcheon |
| 16 | Bag, Accessory |
| 17 | Bag, Accessory (for Curtains) |
| 18 | Screw, Wood 8-15 x .750 |
| 19 | Bracket |
| 20 | WP9740848 Whirlpool Dishwasher Screw |
| 21 | Knob, Control |
