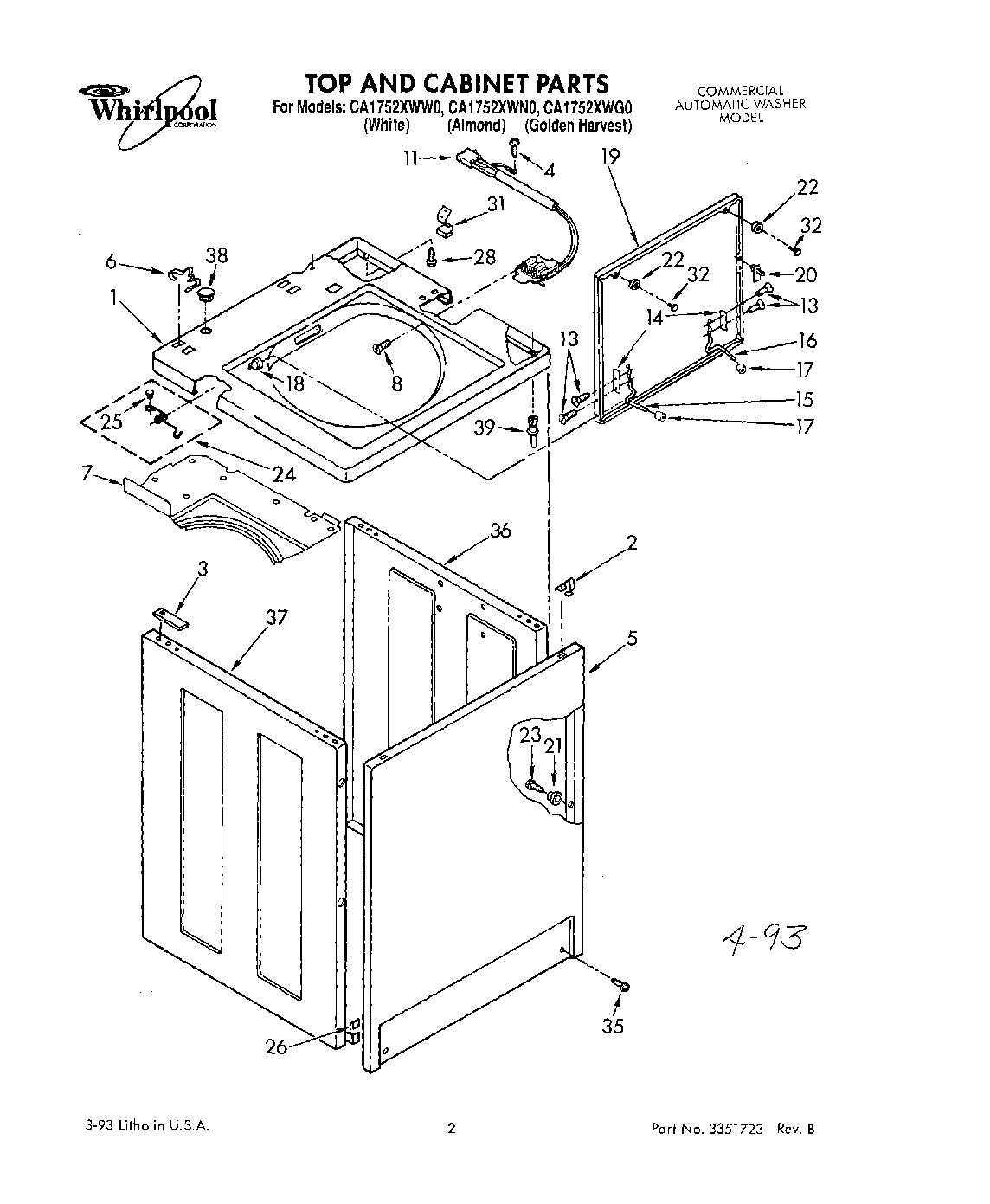

CA1752XWG0 01 – TOP AND CABINET, LIT/OPTIONAL
Written by
in
CA1752XWG0 01 – TOP AND CABINET, LIT/OPTIONAL
Products
Position
Product
350930 Whirlpool White Spray Paint
Golden Harvest
Golden Harvest (Uncut)
Shipping Kit
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WP285195 Whirlpool Sealer Assembly
WPL LIT3353830
WPL LIT3360614
WPL LIT3351723
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350572 Whirlpool Oil Transmission 15 Oz
350938 Whirlpool Spray Gun
Almond (Uncut)
Leveler (Thinner)
350956 Whirlpool Spray Assembly
WP72107 Whirlpool Touchup
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
1
Top (Golden Harvest)
1
Top (Almond)
1
Top (White)
2
WP18776 Whirlpool Lock
3
Spacer, Cabinet To Top (4)
4
WP3351614 Whirlpool Screw
5
Panel, Front (For Golden Harvest Model)
5
Panel, Front (For Almond Model)
5
WP3358500 Whirlpool Panel
6
Clip, Top & Cabinet & Rear Panel (2)
7
Shield, Lid
8
Screw & Washer, Lid Switch (2)
11
Switch, Lid
13
SCREW
14
WP21097 Whirlpool Pad
15
WP54584 Whirlpool Hinge
16
WP91770 Whirlpool Hinge
17
Bumper, Lid Hinge
18
WP21258 Whirlpool Washer Lid Hinge Bearing
19
Lid (Golden Harvest)
19
WPW10193854 Whirlpool Lid Assembly
19
Lid (For Almond Model)
20
WP358684 Whirlpool Strike Assembly
21
Locator (4)
22
Bumper, Lid (1)
23
WP9741232 Whirlpool Dishwasher Screw
24
Spring & Button, Lid
25
Plug, Button
26
WP98234 Whirlpool Nut
28
Screw (2)
31
WP90016 Whirlpool Clip
32
WP356907 Whirlpool Rivet
35
WP3373329 Whirlpool Dishwasher Screw
36
Panel, R. H. (Almond)
36
Panel, R. H. (White)
36
Panel, R. H. (Golden Harvest)
37
Panel, L. H. (White)
37
Panel, L. H. (Almond)
37
Panel, L. H. (For Golden Harvest Model)
38
WP387371 Whirlpool Plug
39
Pin, Locator (2)
←
TFG22PRSCWW 1
