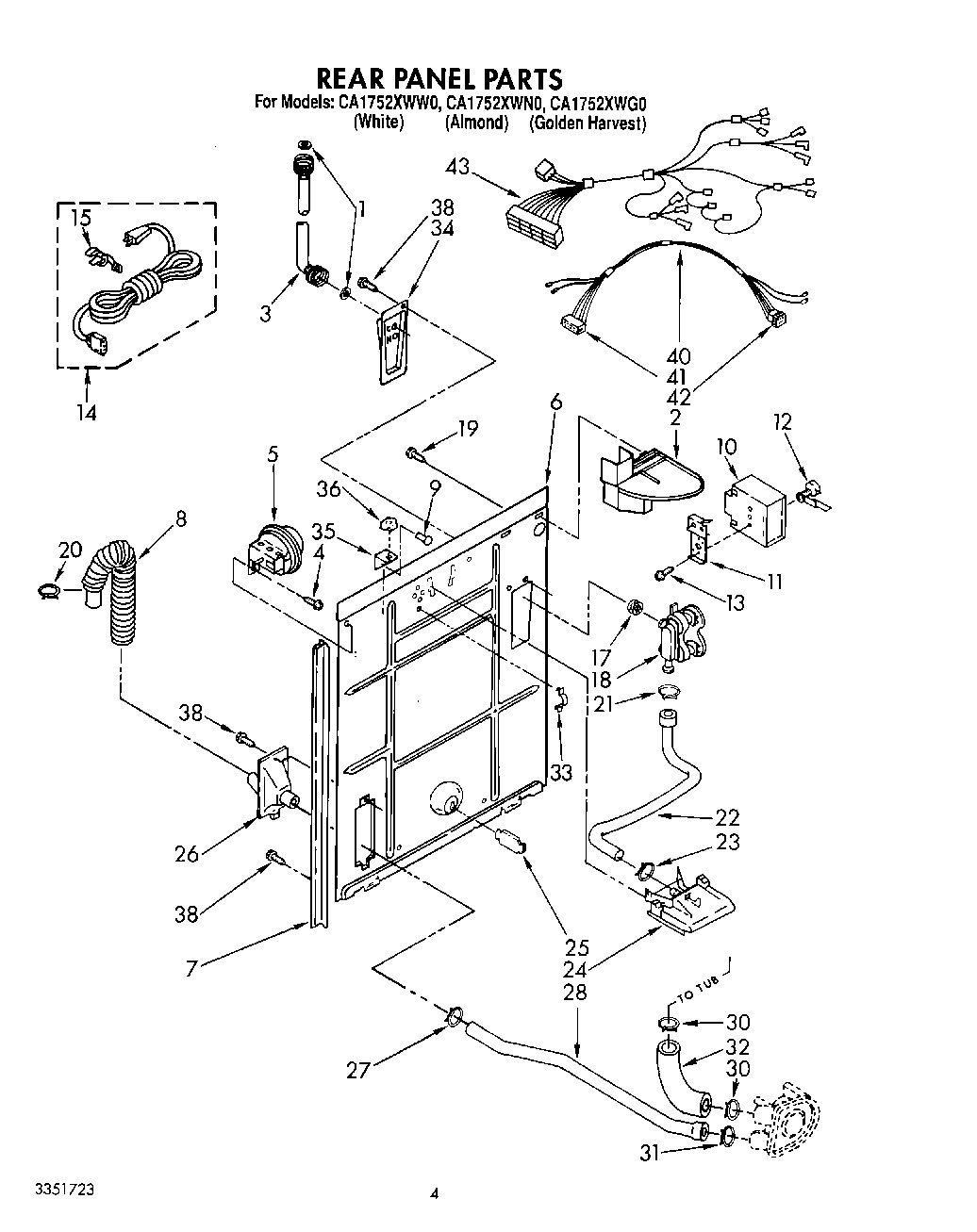

CA1752XWN0 02 – REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	Shield, Harness & ETC
3	WP89503 Whirlpool Washer Fill Hose
4	WP90767 Whirlpool Screw
5	Pressure Switch
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
9	Rivet (2)
10	Timer, 115V. - 60Hz.
11	Bracket, Mtg.
12	WP354987 Whirlpool C-Clip
12	Clutch, Timer
12	Setscrew, 10-32
13	WP356418 Whirlpool Screw
14	285928 Whirlpool Power Cord Assembly
15	Strain Relief, Power Cord
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
20	WP3357331 Whirlpool Clamp
22	Hose, Vacuum Break
23	WP596669 Whirlpool Hose Clamp
24	WP3347034 Whirlpool Vacuum Break
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	WP3348552 Whirlpool Hose
30	WP371502 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Retainer, Hose
34	Plate, Mixing Valve
35	Bracket, Top Lock
36	WP90406 Whirlpool Nut
38	WP3390631 Whirlpool Screw
40	Harness, Timer (Includes Illus. 68 & 69)
41	W10876590 Whirlpool Connector
42	Cap, Terminal (15 Way)
43	Harness, Console
