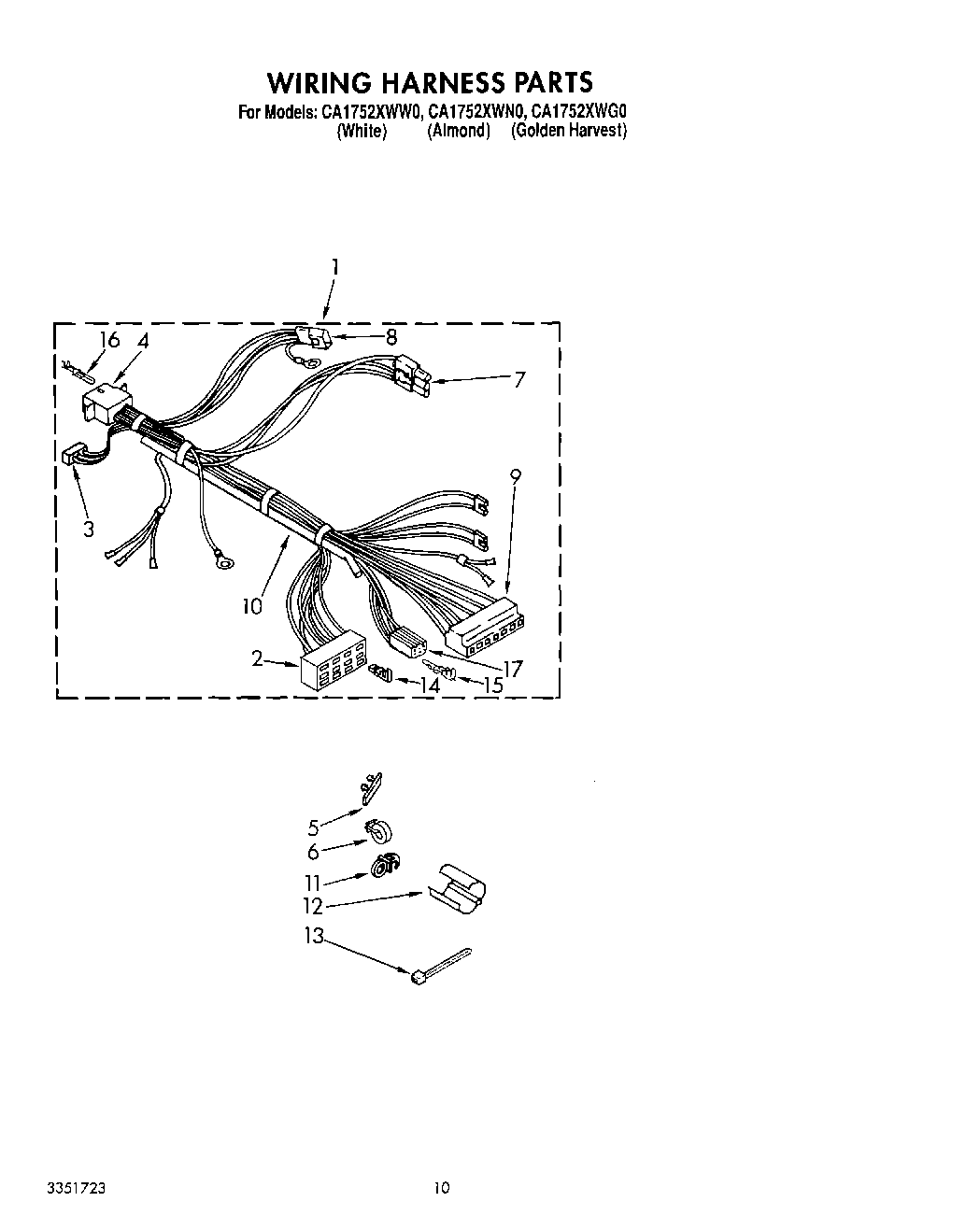

CA1752XWW0 07 – WIRING HARNESS

CA1752XWW0 07 – WIRING HARNESS

Written by

in

CA1752XWW0 07 – WIRING HARNESS

Products

PositionProduct
1Harness, Base
2Receptacle (2) (Uses Terminals 94614)
3Connector
4Plug, Terminal (12-Way) (Use W/96413 Terminal)
5WP389379 Whirlpool Retainer
68559320 Whirlpool Clip
7WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
8353424 Whirlpool Connector
9WP62505 Whirlpool Connector
10WP353244 Whirlpool Hose
11Clip, Harness
12Protector, Harness
13Clip, Harness
14WP94614 Whirlpool Terminal
15WP596797 Whirlpool Terminal
16Terminal
17Cap, Terminal (Console Harness)
