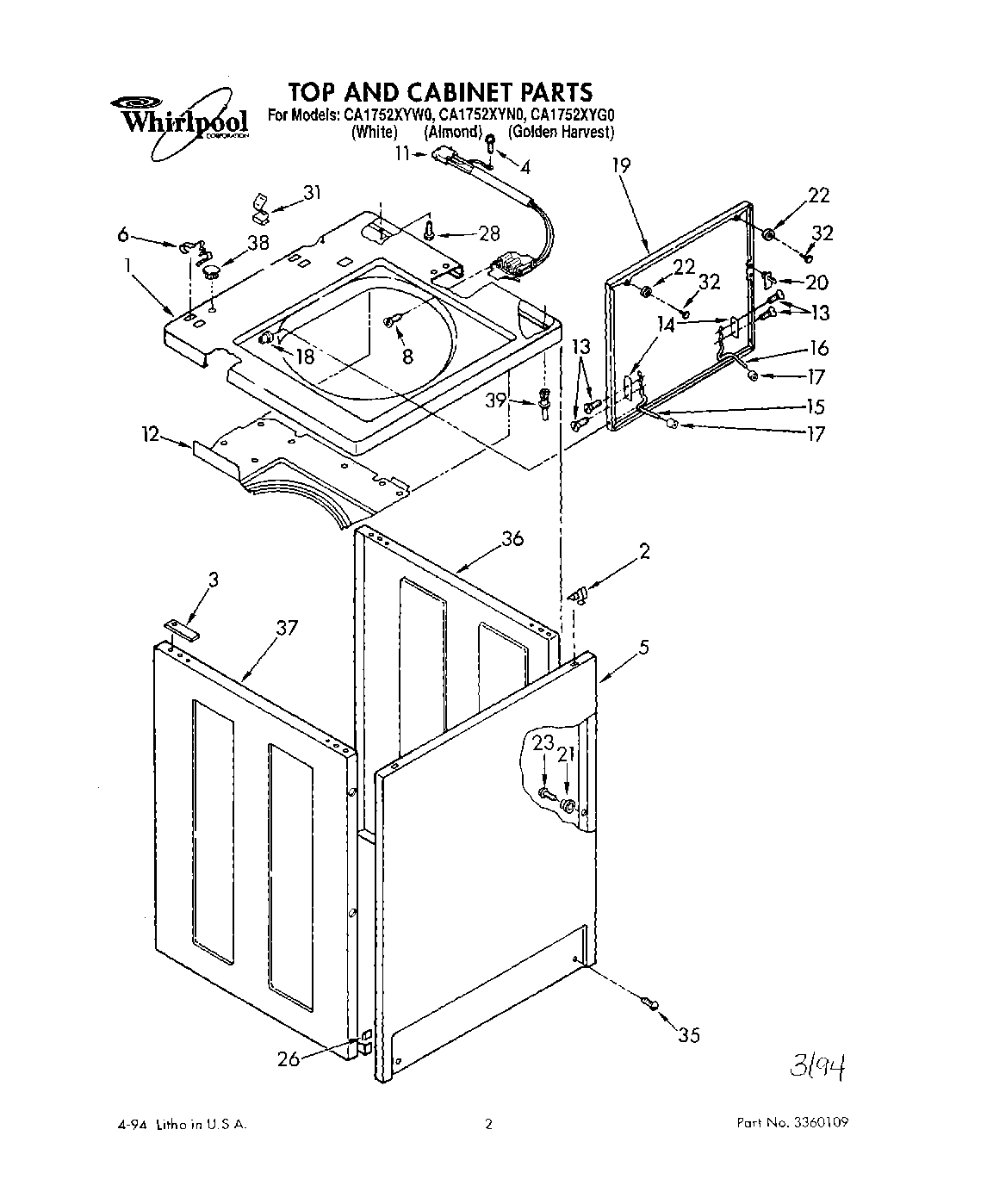

CA1752XYG0 01 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Golden Harvest
	Golden Harvest (Uncut)
	Shipping Kit
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WPL LIT3360614
	WP285195 Whirlpool Sealer Assembly
	WPL LIT3353830
	WPL LIT3360109
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350572 Whirlpool Oil Transmission 15 Oz
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	350956 Whirlpool Spray Assembly
	Leveler (Thinner)
	Almond (Uncut)
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
1	Top (Golden Harvest)
1	Top (Almond)
1	Top (White)
2	WP18776 Whirlpool Lock
3	Spacer, Cabinet To Top (4)
4	SCREW
5	Panel, Front (White)
5	Panel, Front (Almond)
5	Panel, Front (For Golden Harvest Model)
6	Clip, Top & Cabinet & Rear Panel (2)
8	WP3356311 Whirlpool Screw
11	Switch, Lid
12	Shield, Lid Switch
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP91770 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (Almond)
19	Lid (Golden Harvest)
19	WPW10193854 Whirlpool Lid Assembly
20	WP358684 Whirlpool Strike Assembly
21	Locator (4)
22	BUMPER
23	WP9741232 Whirlpool Dishwasher Screw
26	WP98234 Whirlpool Nut
28	Screw (2)
31	WP90016 Whirlpool Clip
32	WP356907 Whirlpool Rivet
35	WP3373329 Whirlpool Dishwasher Screw
36	Panel, R. H. (Golden Harvest)
36	Panel, R. H. (Almond)
36	Panel, R. H. (White)
37	Panel, L. H. (For Golden Harvest Model)
37	Panel, L. H. (Almond)
37	Panel, L. H. (White)
38	WP387371 Whirlpool Plug
39	Pin, Locator (2)
