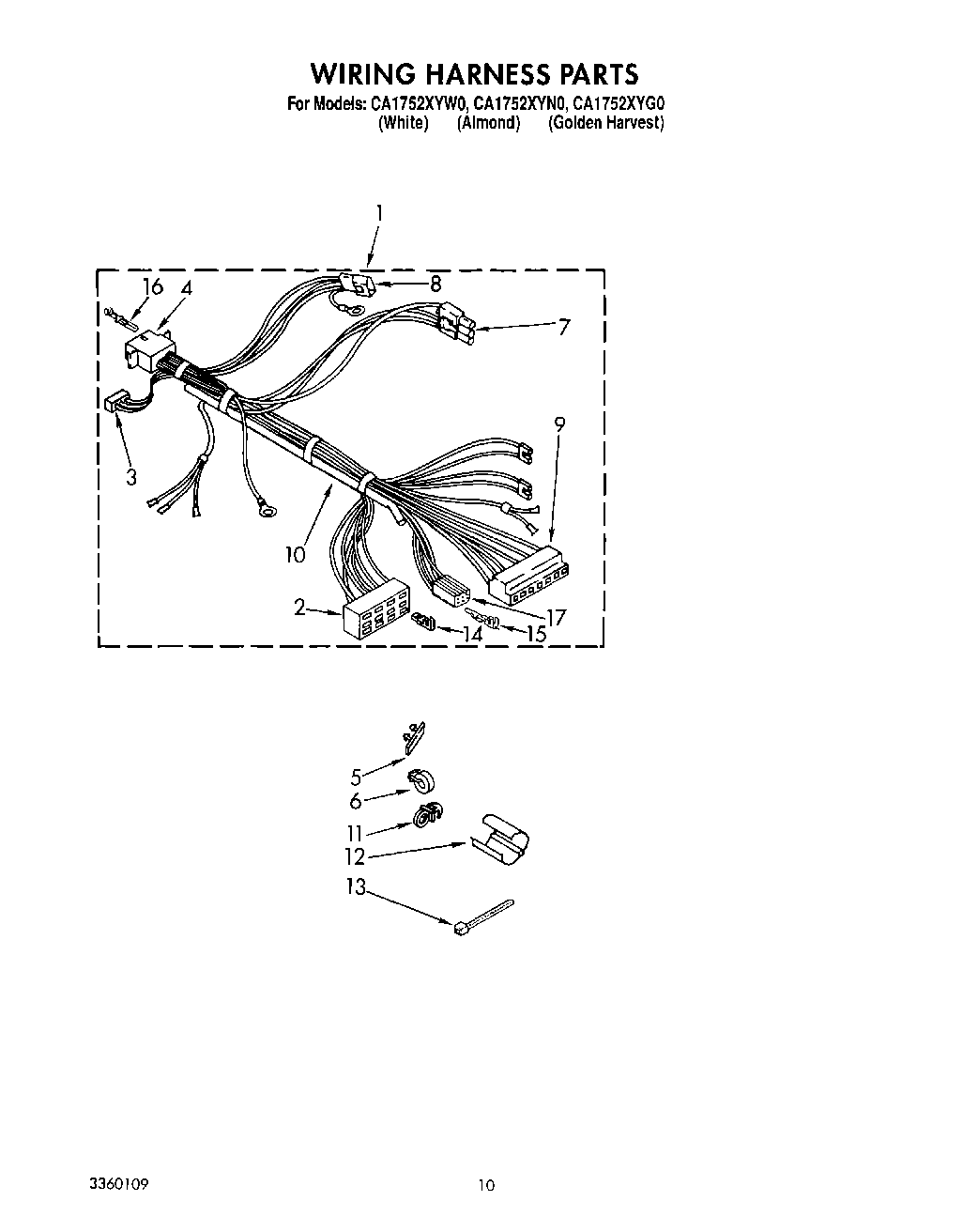

CA1752XYW0 07 – WIRING HARNESSadmin2025-04-26T10:52:20+00:00CA1752XYW0 07 – WIRING HARNESS ProductsPositionProduct1Harness, Base2Receptacle (2) (Uses Terminals 94614)3Connector4Plug, Terminal (12-Way) (Use W/96413 Terminal)5WP389379 Whirlpool Retainer68559320 Whirlpool Clip7WP62889 Whirlpool Washer Lid Switch Terminal Receptacle8353424 Whirlpool Connector9WP62505 Whirlpool Connector10WP353244 Whirlpool Hose11Clip, Harness12Protector, Harness13Clip, Harness14WP94614 Whirlpool Terminal15WP596797 Whirlpool Terminal16Terminal17Cap, Terminal (Console Harness)
