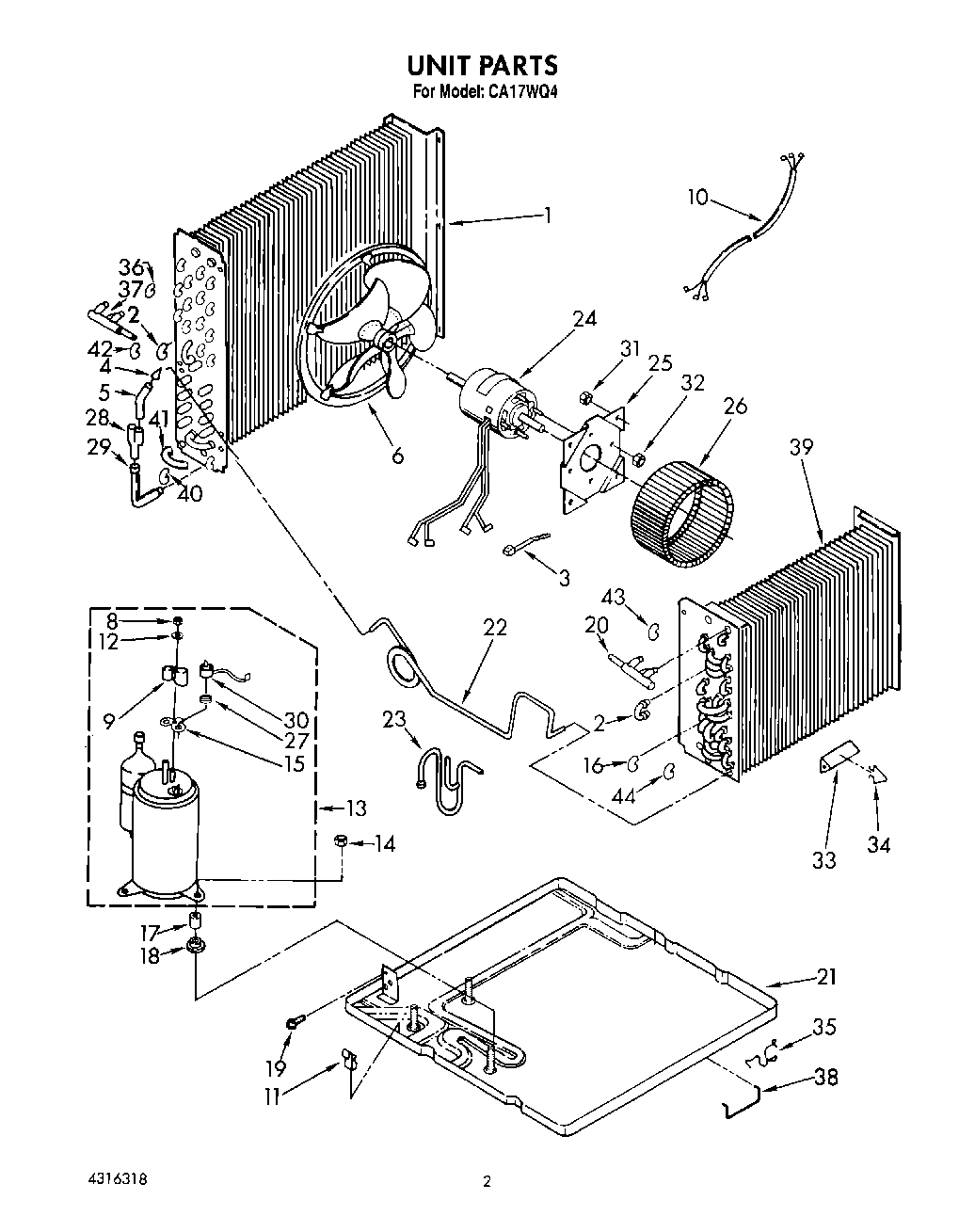

CA17WQ4 02 – UNIT, LIT/OPTIONAL

Products

Position	Product
	Sheet, Tech
	List, Repair Parts
	Wiring Diagram
	Guide, Use And Care
	Instructions, Installation
1	Condenser
2	Bend, Return Evaporator (11)
3	WPW10339879 Whirlpool Wire Tie
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Blade, Fan
8	WP950027 Whirlpool Mounting Nut
9	WP950036 Whirlpool Cover Assembly
10	Harness, Wiring
11	Clamp, Restrictor Tube
12	Gasket, Nut
13	Compressor
14	Locknut (3)
15	WP950035 Whirlpool Cover Gasket
16	WP855199 Whirlpool Bend Return
17	Sleeve (3)
18	WP950021 Whirlpool Grommet
19	WP488729 Whirlpool Refrigerator Door Screw
20	Tube, Manifold
21	Base
22	Tube Restrictor (3) (Length 46.0“)
23	Tube, Suction
24	Motor, Fan
25	WPL 998024
26	Wheel, Blower
27	Spring, Overload
28	Tube, Flow Divider
29	Tube, Connecting
30	WP1161170 Whirlpool Air Conditioner Overload
31	Nut, Hex (4)
32	WP488130 Whirlpool Air Conditioner Nut
33	Anticipator
34	Clip (2)
35	Clip, Mtg. (3)
36	Bend, Return Condenser (10)
37	Tube, Manifold
38	WPL 647971
39	Evaporator
40	Bend, Return Condenser (4)
41	Bend, 3-Way
42	Tube, Riser (2)
43	Bend, Return
44	Bend, Return
