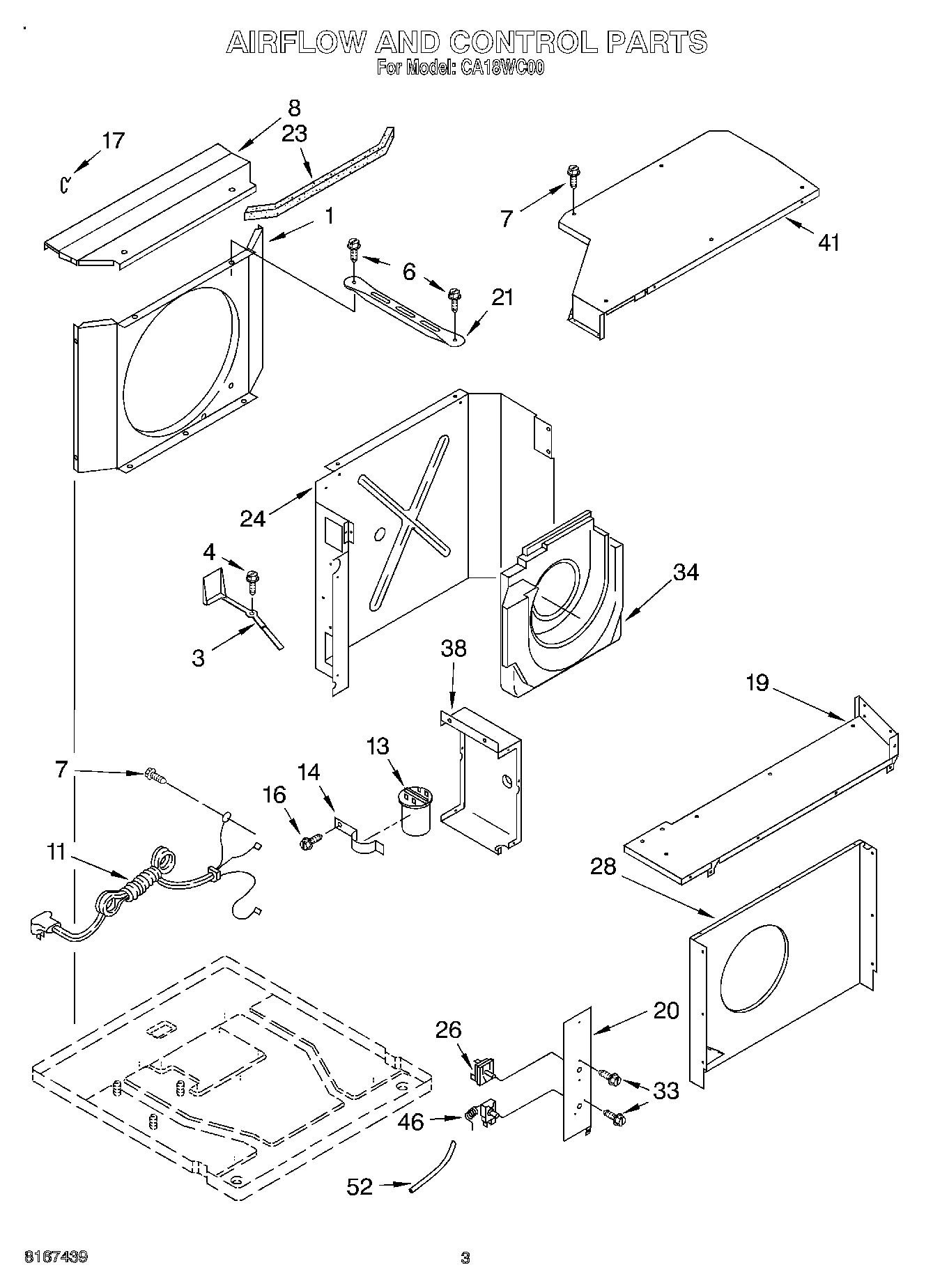

CA18WC00 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
3	Door, Exhaust
4	Screw, 8-18 x .437
6	WP308685 Whirlpool Microwave Screw
8	Top, Condenser
11	Cord, Appliance
13	Capacitor, Running
14	Bracket, Capacitor
16	WP489069 Whirlpool Compactor Screw
17	Clip, Shroud (2)
19	Top, Evaporator Shroud
20	Panel, Control
21	Support, Unit (2)
23	Seal, Shroud
24	Dividing Wall
26	Switch, Rotary
28	Shroud Assembly, Evaporator
33	Screw, 6-32 x .175
34	Housing, Air
38	Control Box (R.S.)
41	Cover, Top
46	Control, Temperature
52	Sleeve, Insulating
