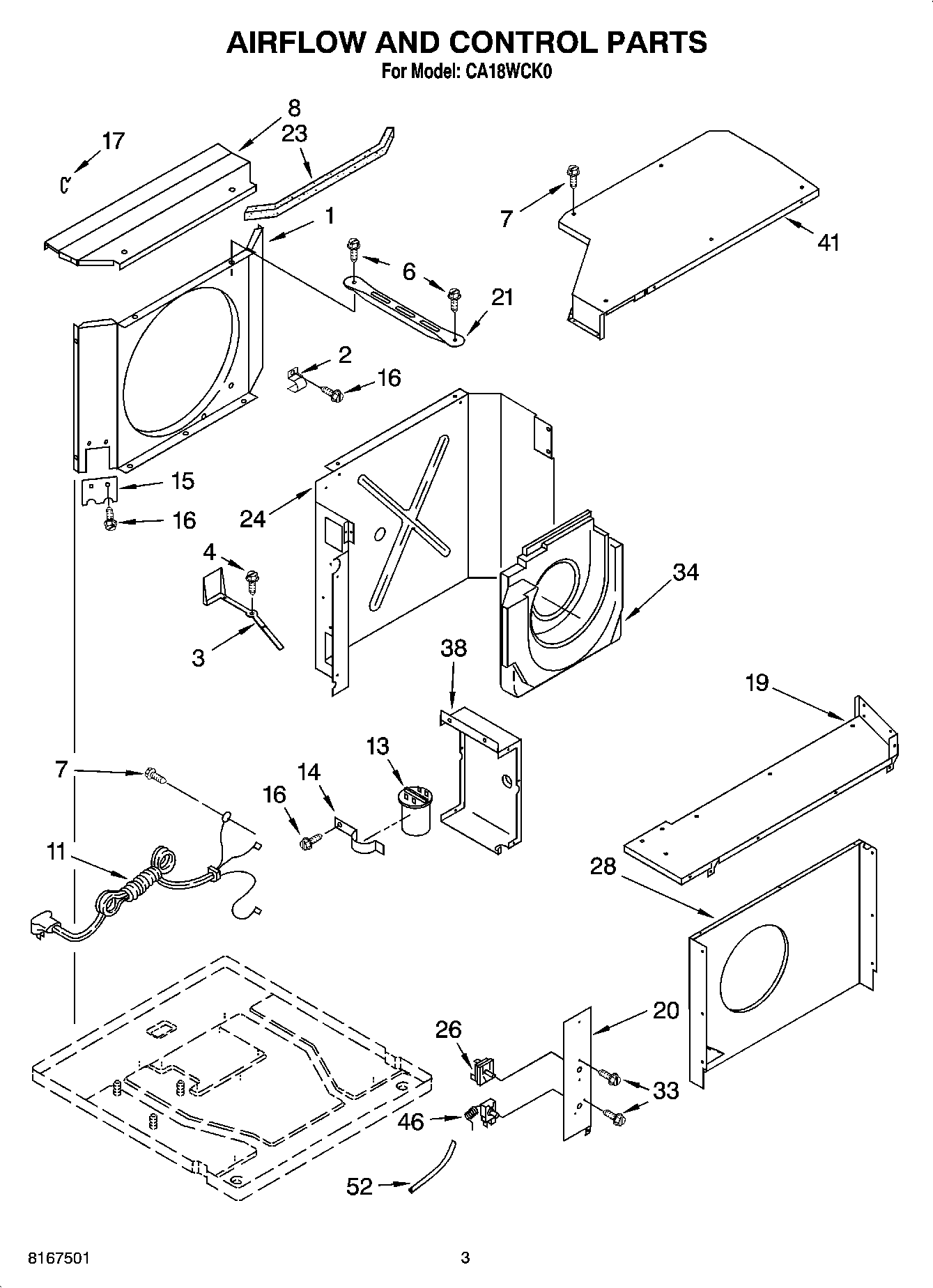

CA18WCK0 02 – AIRFLOW AND CONTROL PARTS

Products

PositionProduct
1Shroud, Condenser
2Clip, Wet Loop
3Door, Exhaust
4Screw, 8-18 x .437
6WP308685 Whirlpool Microwave Screw
8Top, Condenser
11Cord, Appliance
13Capacitor
14Bracket, Capacitor
15Clip, Nylon
16WP489069 Whirlpool Compactor Screw
17Clip, Shroud (2)
19Top, Evaporator Shroud
20Panel, Control
21Support, Unit (2)
23Seal, Shroud
24Dividing Wall
26Switch, Rotary
28Shroud Assembly, Evaporator
33Screw, 6-32 x .175
34Housing, Air
38Control Box (R.S.)
41Cover, Top
46Control, Temperature
52Sleeve, Insulating
