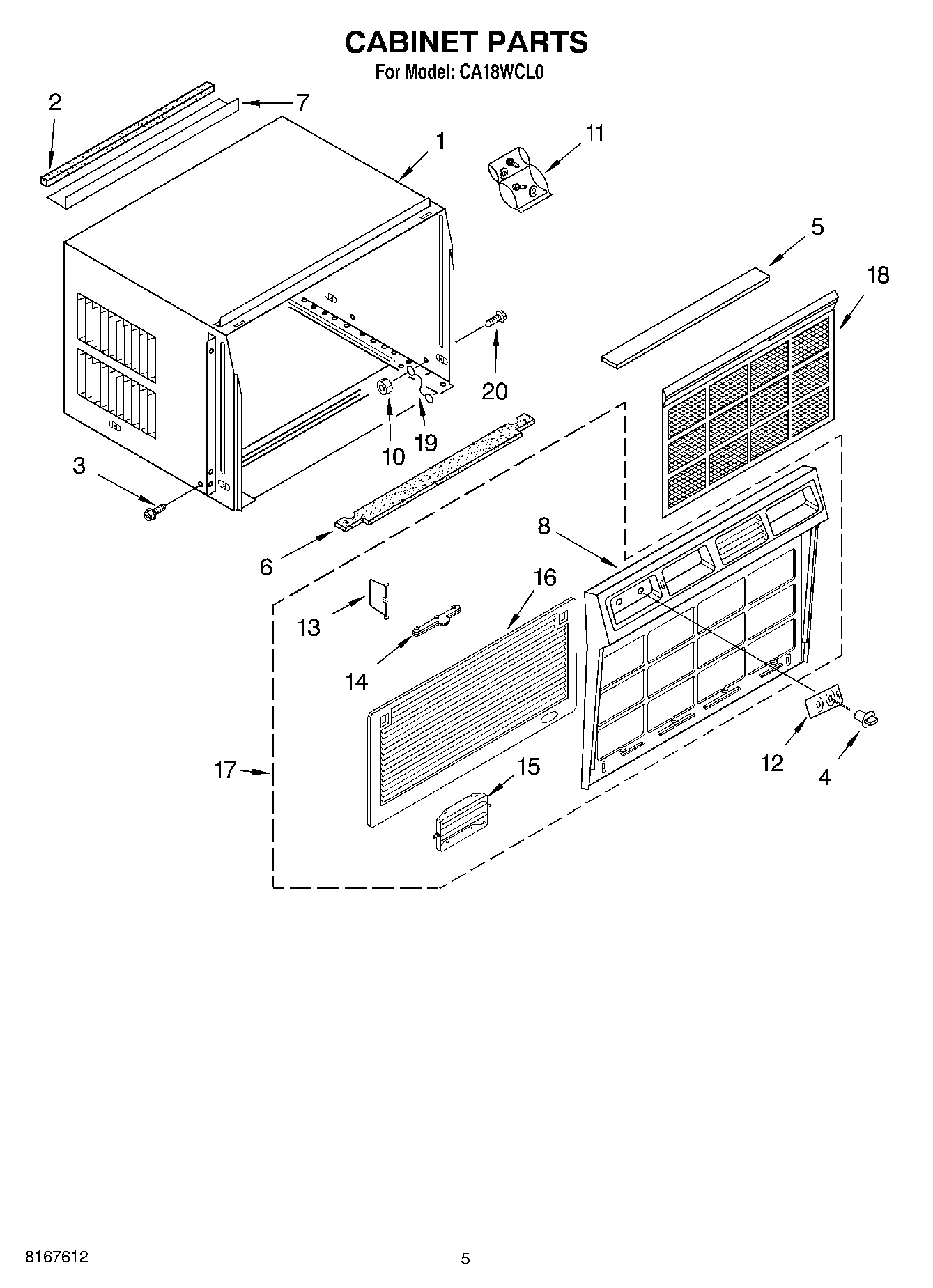

| 1 | Cabinet |
| 2 | Gasket, Meeting Rail |
| 3 | WP489069 Whirlpool Compactor Screw |
| 4 | WP8031121 Whirlpool Air Conditioner Control Knob |
| 5 | Seal |
| 6 | Seal |
| 7 | Angle (Top) |
| 8 | Frame, Front |
| 10 | WP486255 Whirlpool Air Conditioner Nut |
| 11 | Bag, Accessory |
| 12 | Escutcheon |
| 13 | Louver, Verticle |
| 14 | Link, Verticle Louver (2) |
| 15 | Cartridge |
| 16 | Door, Filter |
| 17 | Front, Complete |
| 18 | Filter |
| 19 | Wire, Ground |
| 20 | WP488234 Whirlpool Air Conditioner Screw |
