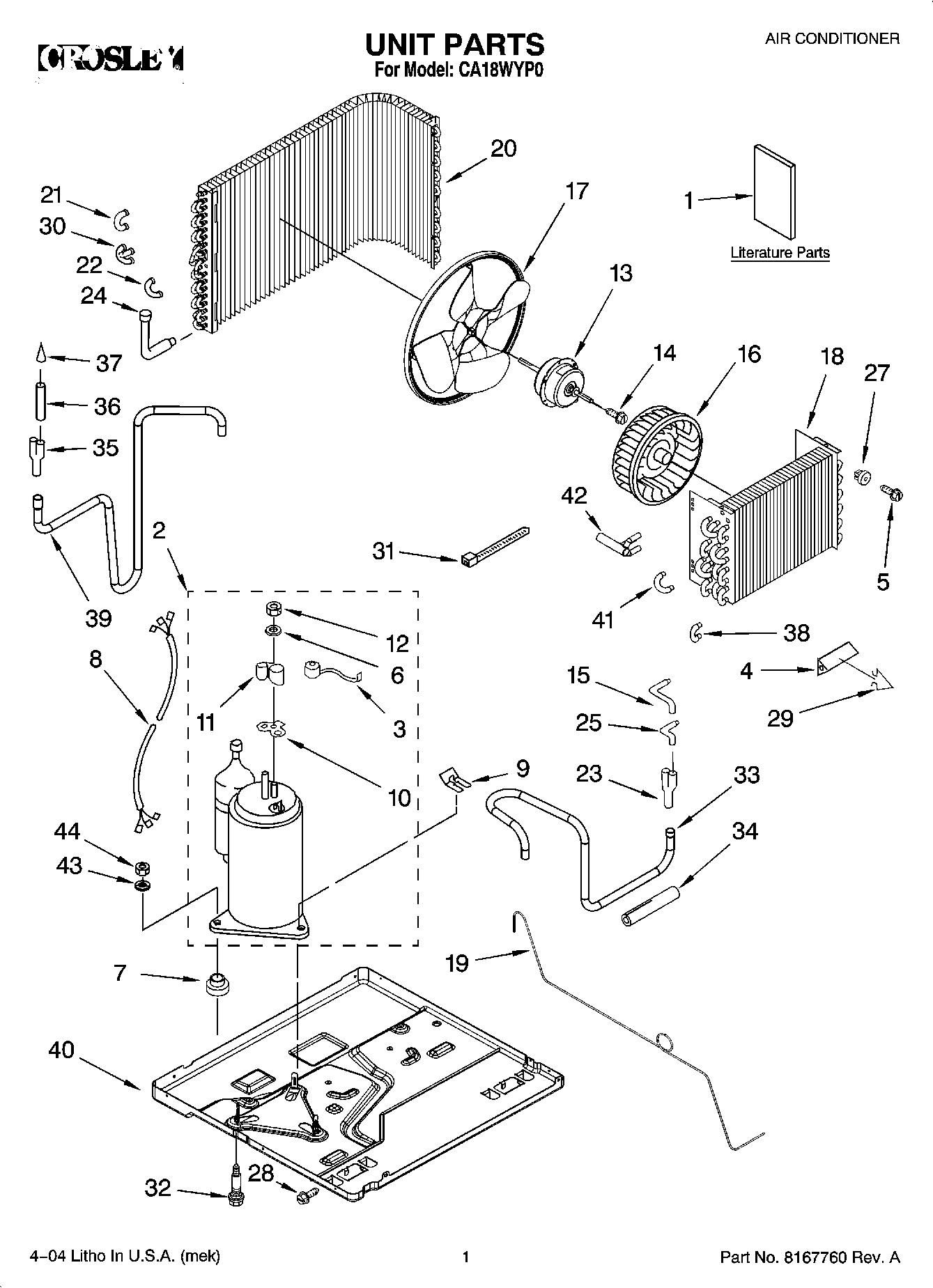

| 1 | Energy Guide |
| 1 | Literature Parts (Wiring Diagram) |
| 1 | Literature Parts (Use & Care Guide) |
| 2 | COMPRESSOR |
| 3 | OVERLOAD |
| 4 | Anticipator, Temperature |
| 5 | WP489463 Whirlpool Refrigerator Screw |
| 6 | Gasket |
| 7 | WP950021 Whirlpool Grommet |
| 8 | Harness, Wiring Compressor |
| 9 | Clip, Compressor |
| 10 | Gasket, Terminal Cover |
| 11 | Cover, Terminal |
| 12 | W10833054 Whirlpool Air Conditioner Mounting Nut |
| 13 | Motor, Fan |
| 14 | WPW10109200 Whirlpool Screw |
| 15 | Tube, Feeder |
| 16 | Wheel, Blower |
| 17 | Blade, Fan |
| 18 | Evaporator |
| 19 | Tube, Restrictor |
| 20 | CONDENSER |
| 21 | Bend, Return |
| 22 | Bend, Return |
| 23 | Tube, Flow Divider |
| 24 | Tube, Connecting |
| 25 | Tube, Feeder |
| 27 | Grommet, Screw |
| 28 | Screw, 8 x 3/8 |
| 29 | Clip, Anticipator |
| 30 | Return Bend, Three Way Evaporator (2) |
| 31 | WPW10339879 Whirlpool Wire Tie |
| 32 | Bolt, Compressor |
| 33 | Tube, Suction (Includes Item 34) |
| 34 | Seal, Suction Tube |
| 35 | Tube, Flow Divider |
| 36 | Tube, Outlet (Includes Item 4) |
| 37 | Strainer |
| 38 | Bend, Return Evaporator (11) |
| 39 | Tube, Discharge |
| 40 | BASE |
| 41 | Bend, Return Evaporator (4) |
| 42 | Manifold, Suction |
| 43 | W11236646 Whirlpool Washer Assembly |
| 44 | Locknut (3) |
| 44 | REFRIGERANT CHARGE 30.00 oz. |
