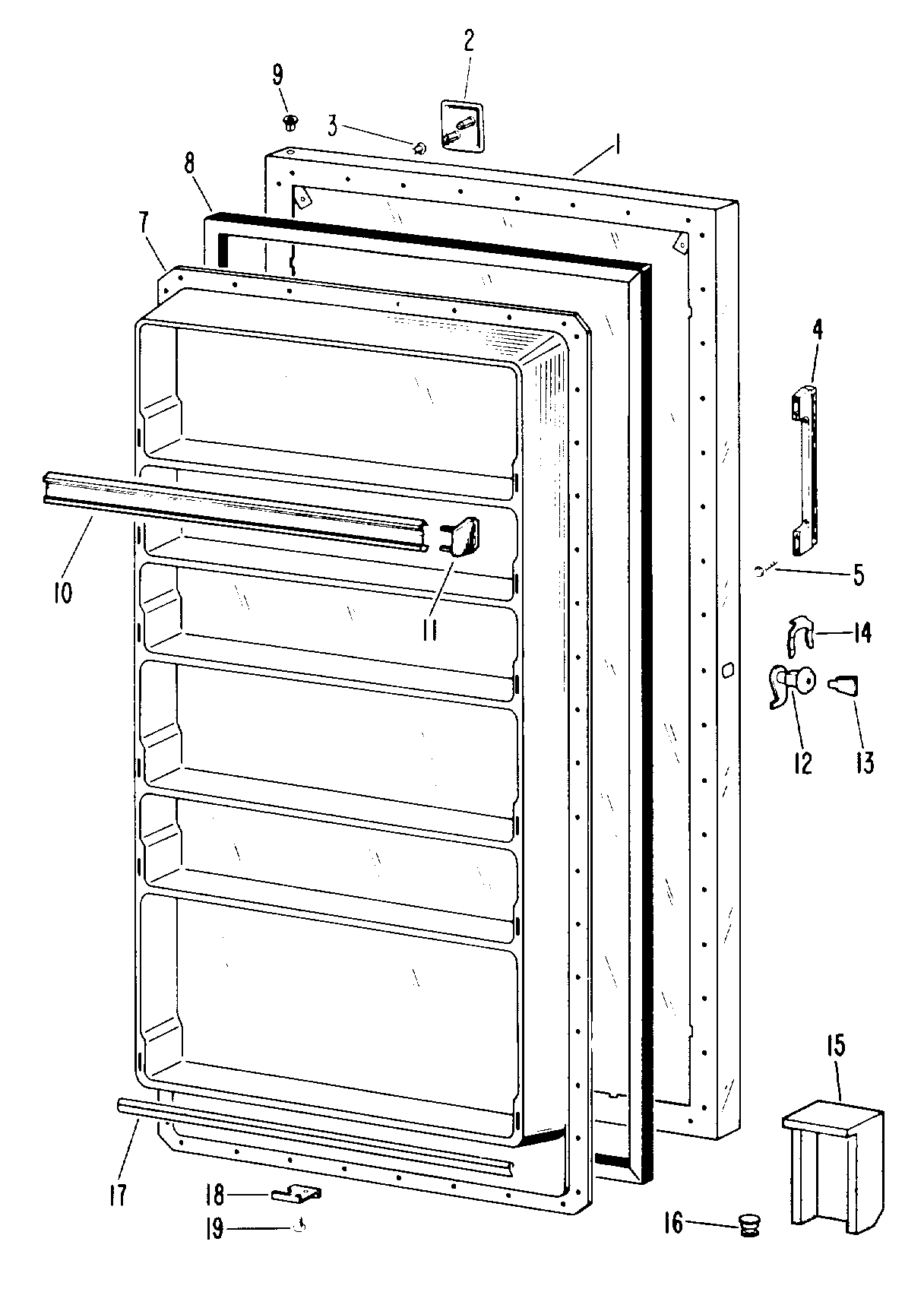

| 1 | WASHER-SCREW |
| 1 | O.D.PANEL (WH) |
| 1 | BRKT WIRE (BTM OF DOOR) |
| 1 | SCREW BRACKET |
| 2 | GEN WR03X0408 |
| 3 | GEN WR02X3757 |
| 4 | GEN WR12X5116 |
| 5 | GEN WZ06X0112 |
| 5 | GEN WR01X1530 |
| 7 | WR02X13481 GE Screw 8-18 x 0.50 AB 10 |
| 7 | GEN WR01X5405 |
| 7 | GEN WR77X5596 |
| 8 | GEN WR24X5169 |
| 9 | GEN WR13X5102 |
| 10 | GEN WR71X5763 |
| 11 | GEN WR02X6882 |
| 11 | GEN WR02X6883 |
| 12 | LOCK ASM. |
| 13 | KEY |
| 14 | HOOK-LOCK |
| 15 | GEN WR02X6054 |
| 16 | GEN WR17X5719 |
| 17 | GEN WR01X5406 |
| 17 | GEN WR14X5097 |
| 18 | GEN WR02X5637 |
| 18 | GEN WR13X5013 |
| 19 | GEN WR01X5485 |
