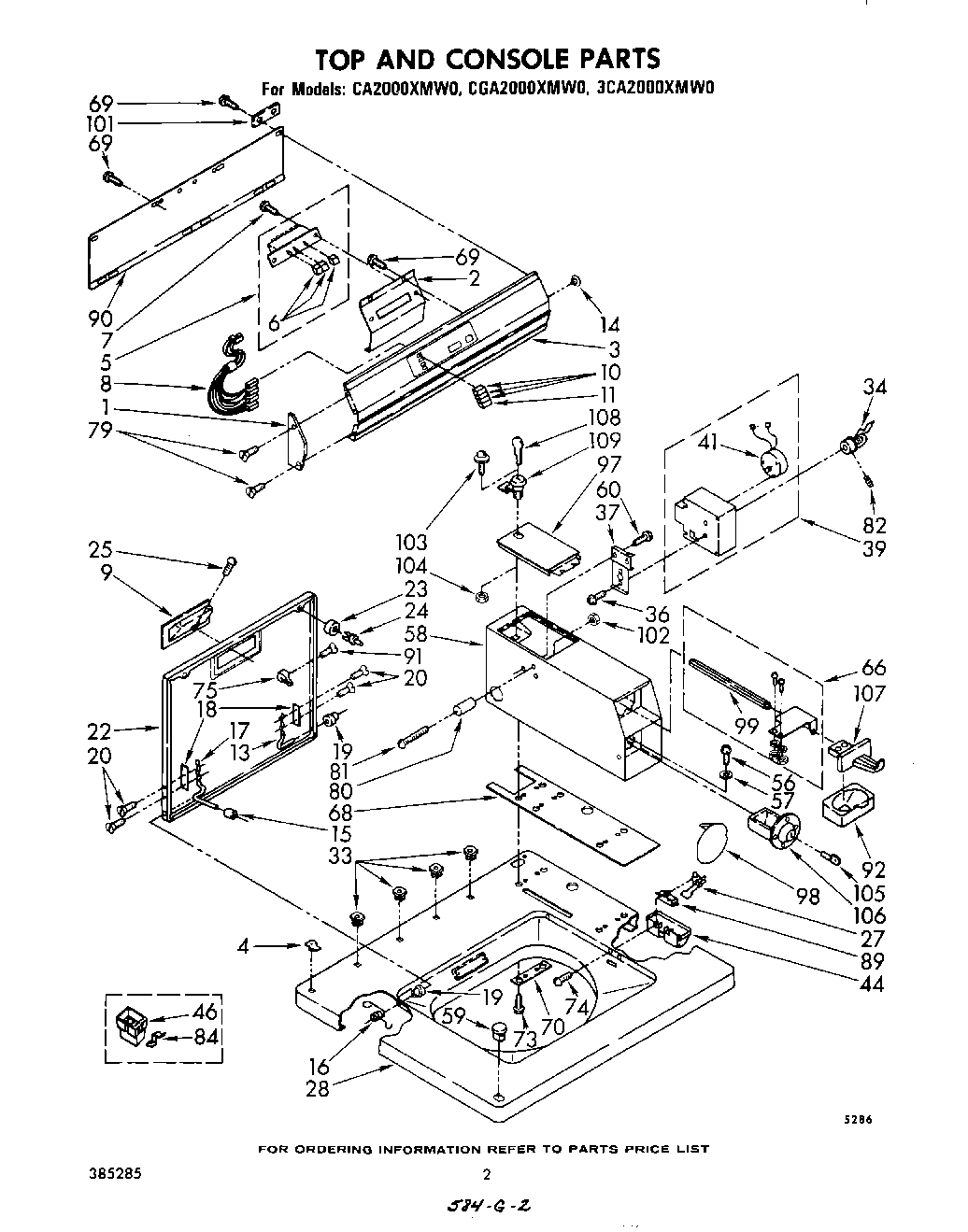

CA2000XMW0 02 – TOP AND CONSOLE

CA2000XMW0 02 – TOP AND CONSOLE

Written by

in

CA2000XMW0 02 – TOP AND CONSOLE

Products

PositionProduct
1Cap, End (L.H.)
2Bracket, Control
3Billboard, Console
4Nut, Push-In (1)
5Switch, Cycle Selector
6Pushbutton (4)
7WP965173 Whirlpool Dishwasher Screw
8Lights, Indicator (120 Volt) (Use W\/\C\A\2\1\\00X\M\W0 & GCA2100XMW0)
9Handle, Lid (New Avocado)
9Handle, Lid (Golden Harvest)
9Handle, Lid (Almond)
9Handle, Lid (White)
10Lens, Amber (3)
11Lens, Yellow (1)
13WP91770 Whirlpool Hinge
14Plug, Button
15Bumper, Lid Hinge
16Spring, Hinge
17Hinge, L.H.
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
22Lid (Almond)
22Lid (New Avocado)
22Lid (White)
22Lid (Golden Harvest)
23BUMPER
24WP356907 Whirlpool Rivet
25Screw
27Switch Actuator Assembly
28Top (Golden Harvest)
28Top (White)
28Top (Almond)
28Top (New Avocado)
33Nut, Push-In (2)
34Clutch, Timer
36WP356418 Whirlpool Screw
37Bracket, Timer
39Timer, 60 Hz. (120 Volt) (Use W/Models CA2000XMW0 & GCA2000XMW0)
39Timer, 50 Hz. (240 Volt) (Use W/Model 3CA2000XMW0)
41Motor, Timer (50 Hz.)
41Motor, Timer (60 Hz.)
44WP359231 Whirlpool Shield
46Cap, Terminal
56Bolt, 5/16-24 x 3/4 (4)
57Lockwasher, 5/16
58Meter Case Assembly (Almond)
58Meter Cas
58Meter Case Assembly (White)
58Meter Case Assembly (New Avocado)
59WP387371 Whirlpool Plug
60339805 Whirlpool Screw
66WPL 385558
68WP3954812 Whirlpool Cushion
69SCREW
70Plate & Nut Assembly
73Screw
74Screw & Washer, Lid Switch (2)
75Strike, Lid Switch
79WP355515 Whirlpool Screw
80Stop, Lid
81WPL 132926
82Setscrew, 10-32
84WP90016 Whirlpool Clip
89W10820036 Whirlpool Door Switch Kit
90WPL 356441
91Screw & Washer
92WP385421 Whirlpool Coin Operated Laundry Funnel
97Door, Service (Almond)
97Door, Service (Golden Harvest)
97Door, Service (New Avocado)
97W11283272 Whirlpool Washer Dryer Meter Case Access Door
98WPL 376429
99WP8576635 Whirlpool Bolt
101WPL 357856
102Nut, Hex
103Screw & Washer
104WP90406 Whirlpool Nut
