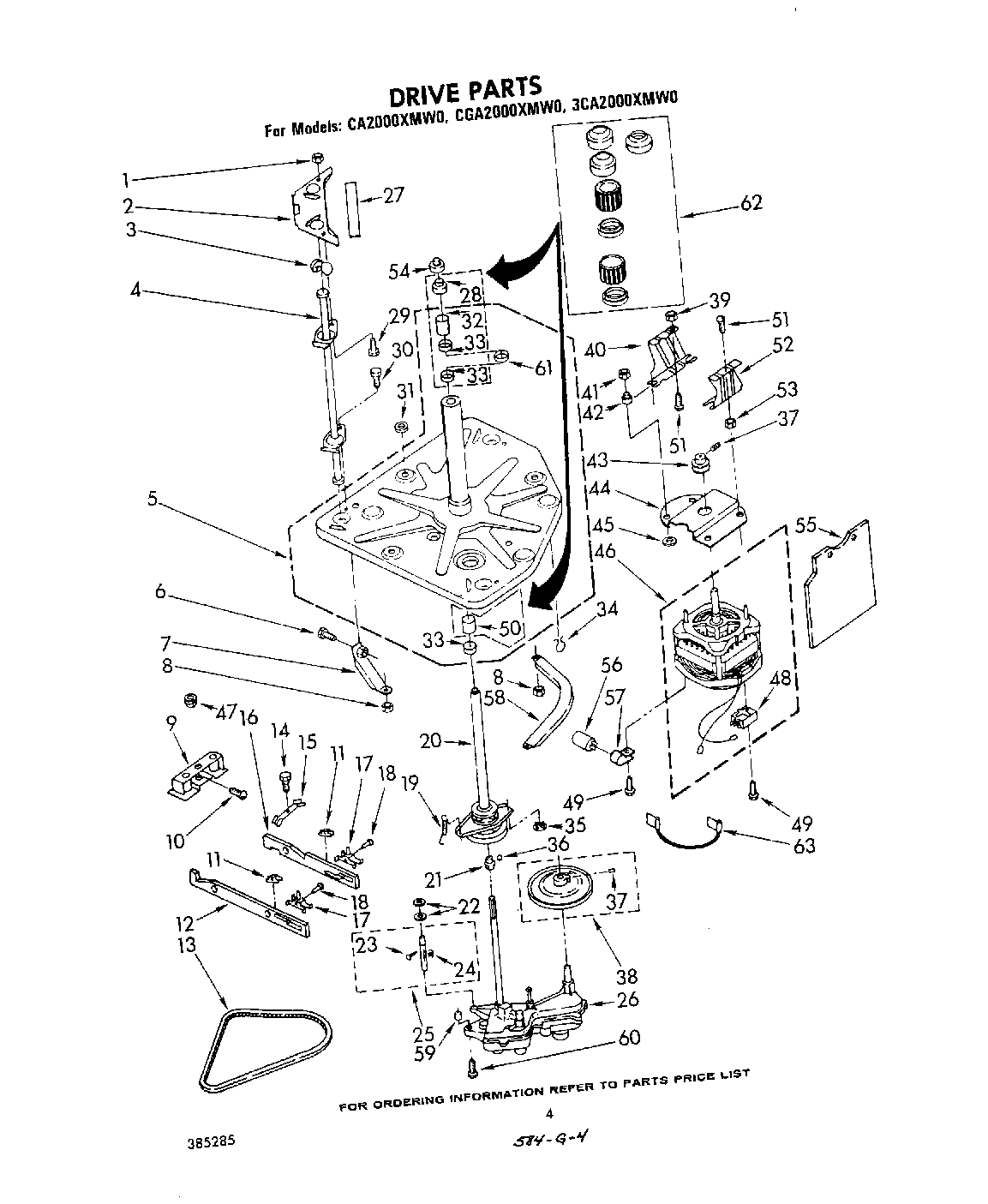

CA2000XMW0 03 – DRIVE

CA2000XMW0 03 – DRIVE

Written by

in

CA2000XMW0 03 – DRIVE

Products

PositionProduct
WPL 357282
190984 Whirlpool Nut
2COVER, GUSSET (R.R.)
2Cover, Gusset (L.R.)
3Ball, Suspension (6)
4Rod, Suspension (3)
5Baseplate & Centerpost
6WP3400516 Whirlpool Screw
7Brace, Baseplate
8Nut, 5/16-24
9Magnet (240 Volt)
9Magnet
10Screw, Taper End
11Guide, Cam Bar
12Cam, Bar Spin
13WP95405 Whirlpool Belt
14Screw, 1/4-28 x 1/2
15Spring, Brake
16Cam, Agitator & Pump
17Plunger
18Rivet
19Spring, Brake Yoke
20Basket Drive & Brake (Refer To Page 9 For Further Breakdown)
21Support, Spin Tube
22WP120393 Whirlpool Washer Assembly
23Pin, Gear Fork Shaft
24Roller, Gear Fork Shaft
25Shaft, Basket Clutch
26Gearcase (For Further Breakdown Refer To Page 10)
27Pad, Gusset Cover (4)
28WP8577376 Whirlpool Seal
29Bolt, 5/16 x 1 (3)
29BOLT, 5/16-18 X 2 3/4
29Bolt, Snubber (1)
29Bolt, 5/16 x 5/8 (2)
30Bolt, 5/16-24
31Gasket, Tub (7)
32WP8546455 Whirlpool Bearing
33W11095997 Whirlpool Seal
3416515 Whirlpool Clip
35Retainer, Brake Yoke
36Ball
37Setscrew, 5/16-18 x 1/2
38Pulley, Main Drive
39WP358160 Whirlpool Nut
40Bracket, Motor Mounting
41Nut (4)
42Grommet, Motor Bracket (4)
43Pulley, Motor
43Pulley, Motor (60 Hz.)
43WPL 93219
44Shield, Motor (Upper)
45WPL 92217
46Motor, 60 Hz.
46Motor, 60 Hz. (Alt.) (General Electric)
46Motor, 60 Hz. (Alt.) (Emerson)
47WP385728 Whirlpool Bushing
48WPL 359642
48WPL 362738
49WP3390631 Whirlpool Screw
50WPL 354195
51WPL 98537
52WPL 93549
53WPL 95721
54Seal, Agitator Shaft Spline
55WPL 357571
56CAPACITOR
57357030 Whirlpool Clamp
58WPL 351499
58WPL 351500
59WPL 16062
60WPL 90877
61Spacer, Centerpost Seal
62WPL 285134
63WPL 370950
