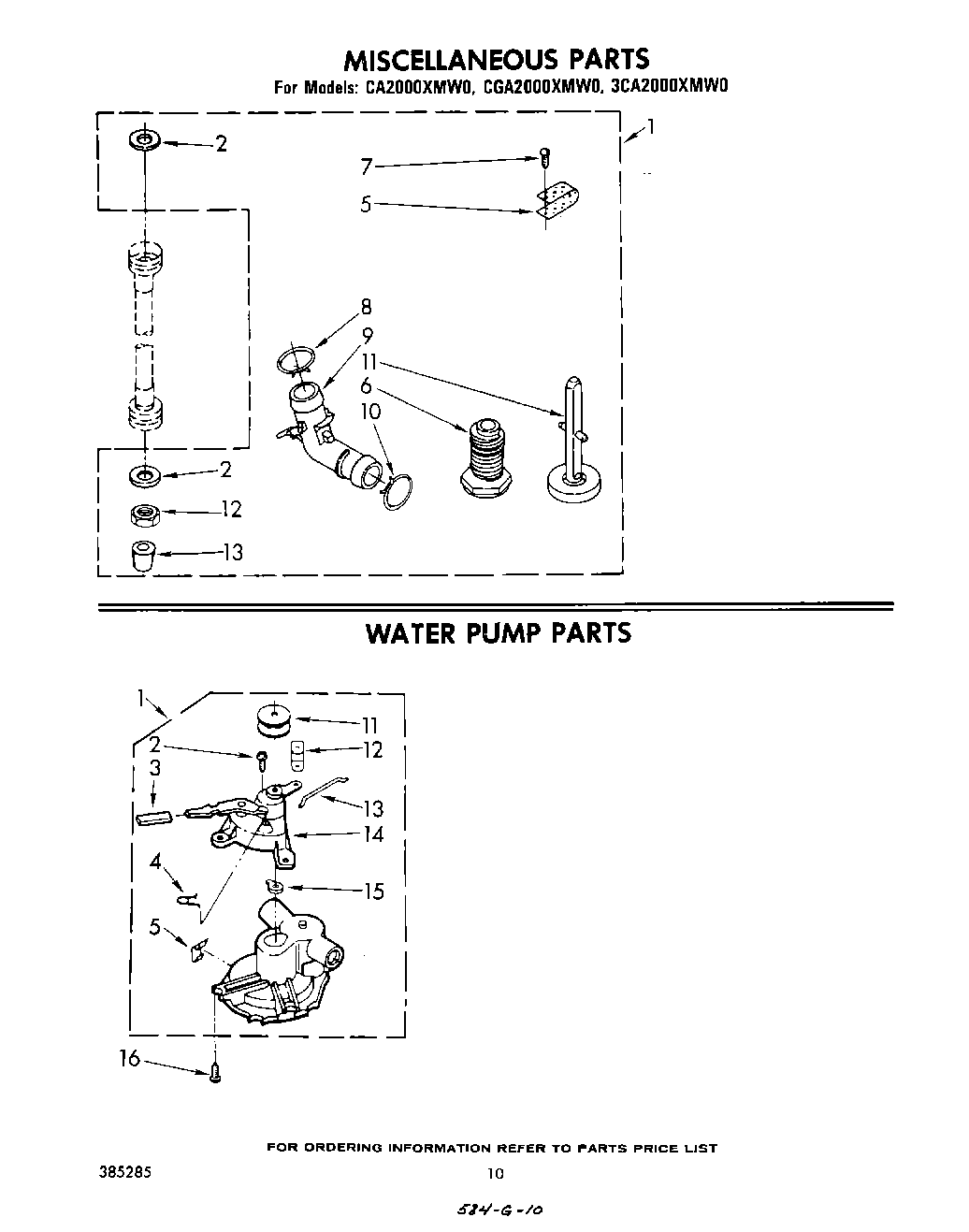

CA2000XMW0 08 – MISCELLANEOUS , WATER PUMP , LITERATURE

Products

Position	Product
1	Miscellaneous Parts Bag
1	Miscellaneous Parts Bag
1	Pump Assembly
2	WP273556 Whirlpool Screw
2	WP16123 Whirlpool Washer
3	Sleeve
4	Spring, Toggle
5	Clip, Retainer
5	Strap, Ground
6	WP367594 Whirlpool Leveling Feet
7	Screw, Ground (10-24 x 1)
8	WP356138 Whirlpool Hose Clamp
9	Connector, Hose
10	WP285655 Whirlpool Hose Clamp
11	Pulley
11	WP358594 Whirlpool Leveling Feet
12	Lever, Valve
12	90984 Whirlpool Nut
13	Rod, Connecting
13	WPL 356674
14	Bearing Block Assembly
15	Wick, Oil
16	Sheet, Installation Instructions (Use W/Model 3CA2100XMW0)
16	Sheet, Installation Instructions (Use W/Model CA2100XMW0 & GCA2100XMW0)
16	Sheet, Top Lock Instructions
16	386011 Whirlpool Screw
16	List, Repair Parts
16	WP72107 Whirlpool Touchup
16	350938 Whirlpool Spray Gun
16	350956 Whirlpool Spray Assembly
16	72017 Whirlpool Appliance Touch-Up Paint White
16	799344 Whirlpool Refrigerator Paint
16	Leveler (Thinner)
16	Almond (Uncut)
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	Golden Harvest
16	Golden Harvest (Uncut)
16	72109 Whirlpool Dacor Avocado Touch-Up Paint
16	Paint, Spray 13 Oz. (Avocado)
16	Enamel, New Avocado (1 Qt. Uncut)
16	WPL 799351
16	350930 Whirlpool White Spray Paint
