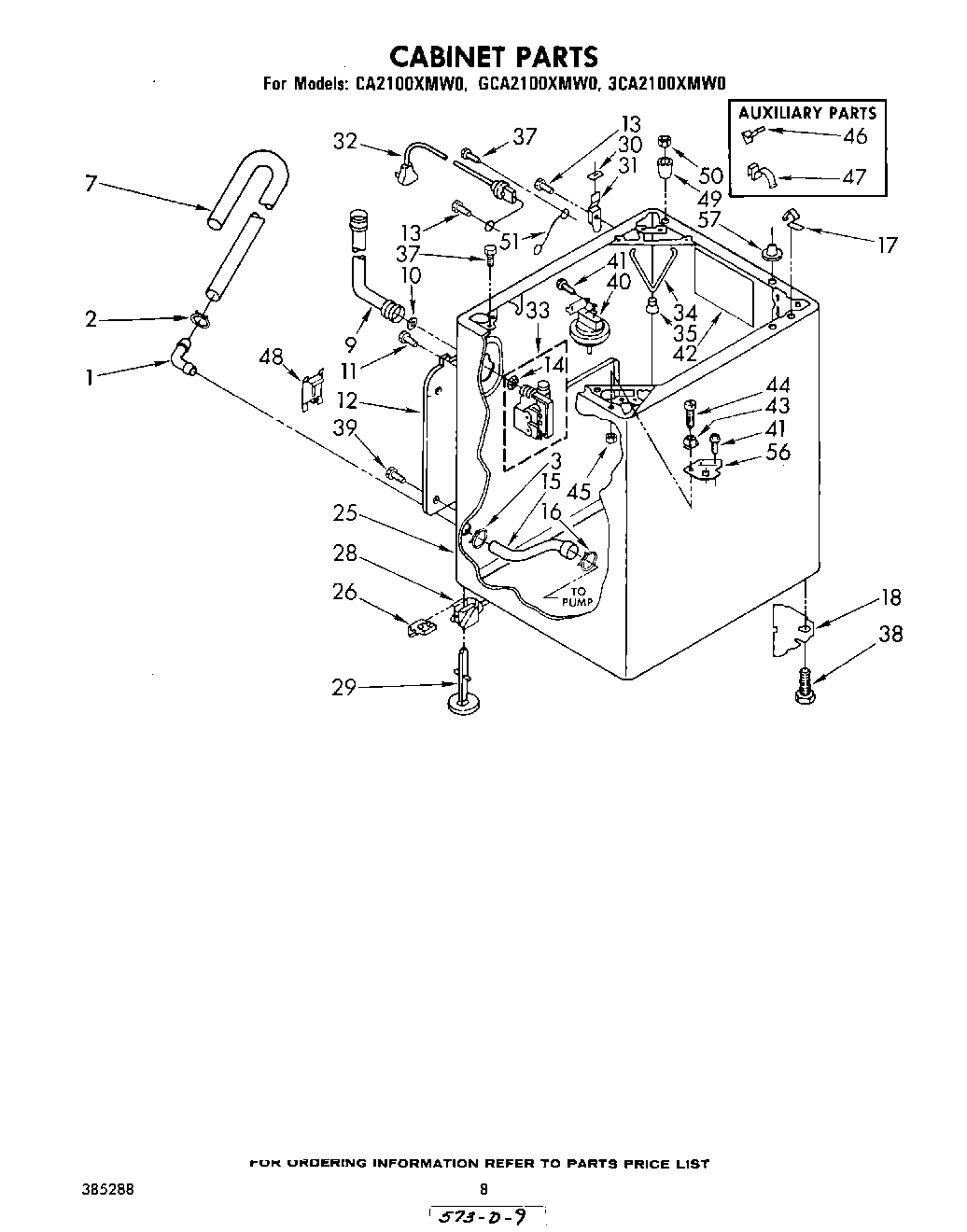

| 1 | Connector, Hose |
| 2 | WP356138 Whirlpool Hose Clamp |
| 7 | WP96743 Whirlpool Hose |
| 9 | WP89503 Whirlpool Washer Fill Hose |
| 10 | WP16123 Whirlpool Washer |
| 11 | WP3351614 Whirlpool Screw |
| 12 | Panel, Rear |
| 13 | SCREW |
| 14 | WP96160 Whirlpool Washer Inlet Valve Screen |
| 15 | Hose, Pump Discharge |
| 16 | WP285655 Whirlpool Hose Clamp |
| 17 | WP18776 Whirlpool Lock |
| 18 | Plate, Gusset |
| 25 | Cabinet (Golden Harvest) |
| 25 | Cabinet |
| 25 | Cabinet (Almond) |
| 25 | Cabinet (New Avocado) |
| 26 | WP359364 Whirlpool Clip |
| 28 | Link, Leveling |
| 29 | WP358594 Whirlpool Leveling Feet |
| 30 | 18849 Whirlpool Pad |
| 31 | Hinge, L.H. |
| 31 | Hinge, R.H. |
| 32 | Cord, Power (120 Volt) |
| 32 | Cord, Power (240 Volt) (Use W/3CFA2000W6) |
| 33 | Valve, Mixing (Alt.) |
| 33 | 285874 Whirlpool Valve Assembly |
| 34 | Spring, Snubber |
| 35 | Pad, Snubber |
| 38 | WP367594 Whirlpool Leveling Feet |
| 40 | Switch, Water Level |
| 41 | WP90767 Whirlpool Screw |
| 42 | Barrier, Splash |
| 43 | Locator, Top |
| 44 | WPL 427190 |
| 45 | WP487939 Whirlpool Refrigerator Nut |
| 46 | 8528351 Whirlpool Clip |
| 47 | WP90016 Whirlpool Clip |
| 48 | Plug, Cabinet |
| 49 | WPL 356674 |
| 50 | 90984 Whirlpool Nut |
| 51 | WPL 364089 |
| 56 | Bracket, Top Lock |
| 57 | Locator, Top |
