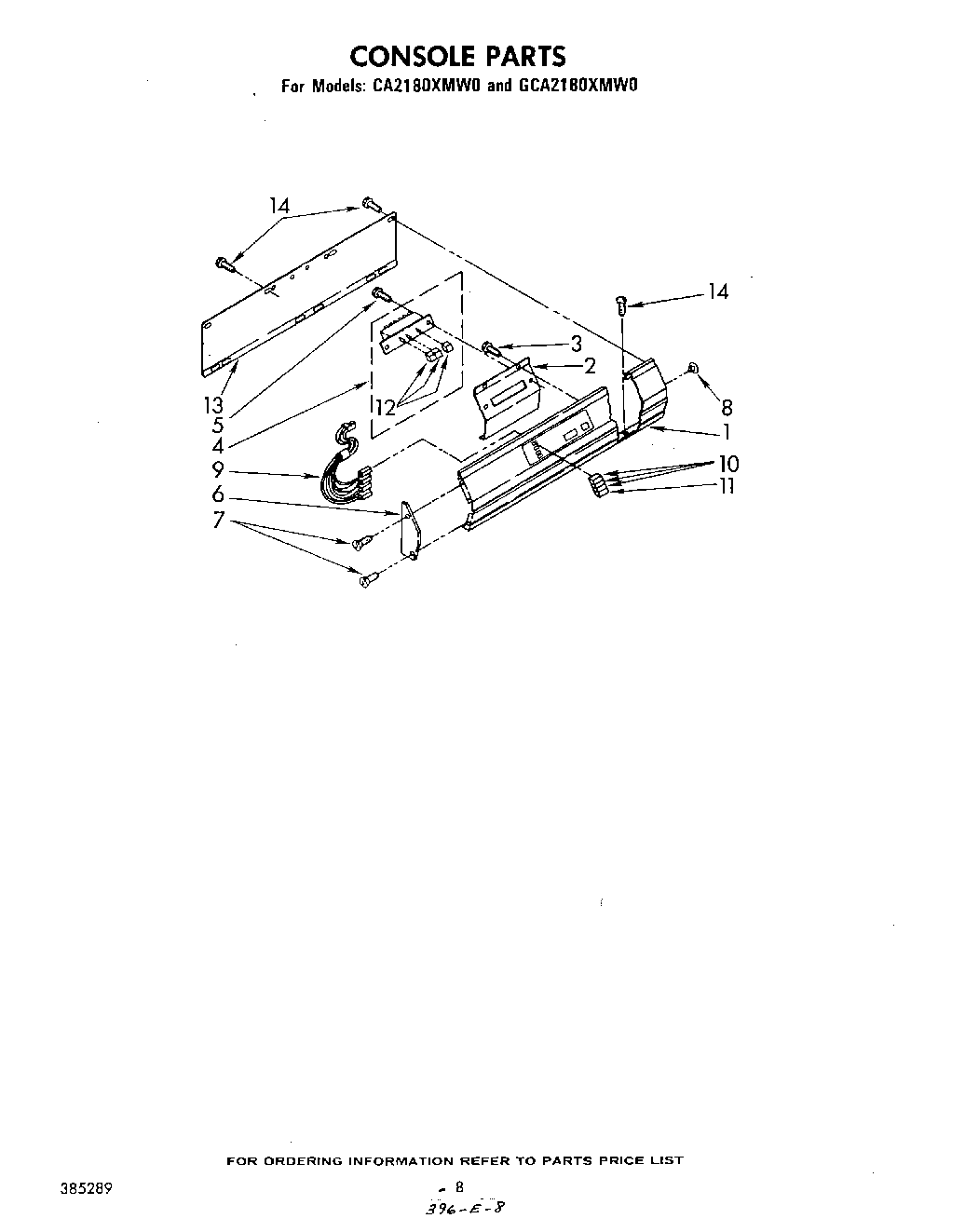

| 1 | Billboard, Console |
| 2 | Bracket, Control |
| 3 | WP90767 Whirlpool Screw |
| 4 | Switch, Cycle Selector |
| 5 | WP965173 Whirlpool Dishwasher Screw |
| 6 | Cap, End (L.H.) |
| 7 | WP355515 Whirlpool Screw |
| 8 | Plug, Button |
| 9 | Lights, Indicator (120 Volt) (Use W\/\C\A\2\1\\00X\M\W0 & GCA2100XMW0) |
| 10 | Lens, Amber (3) |
| 11 | Lens, Yellow (1) |
| 12 | Pushbutton (4) |
| 13 | Panel, Rear Billboard |
| 14 | SCREW |
