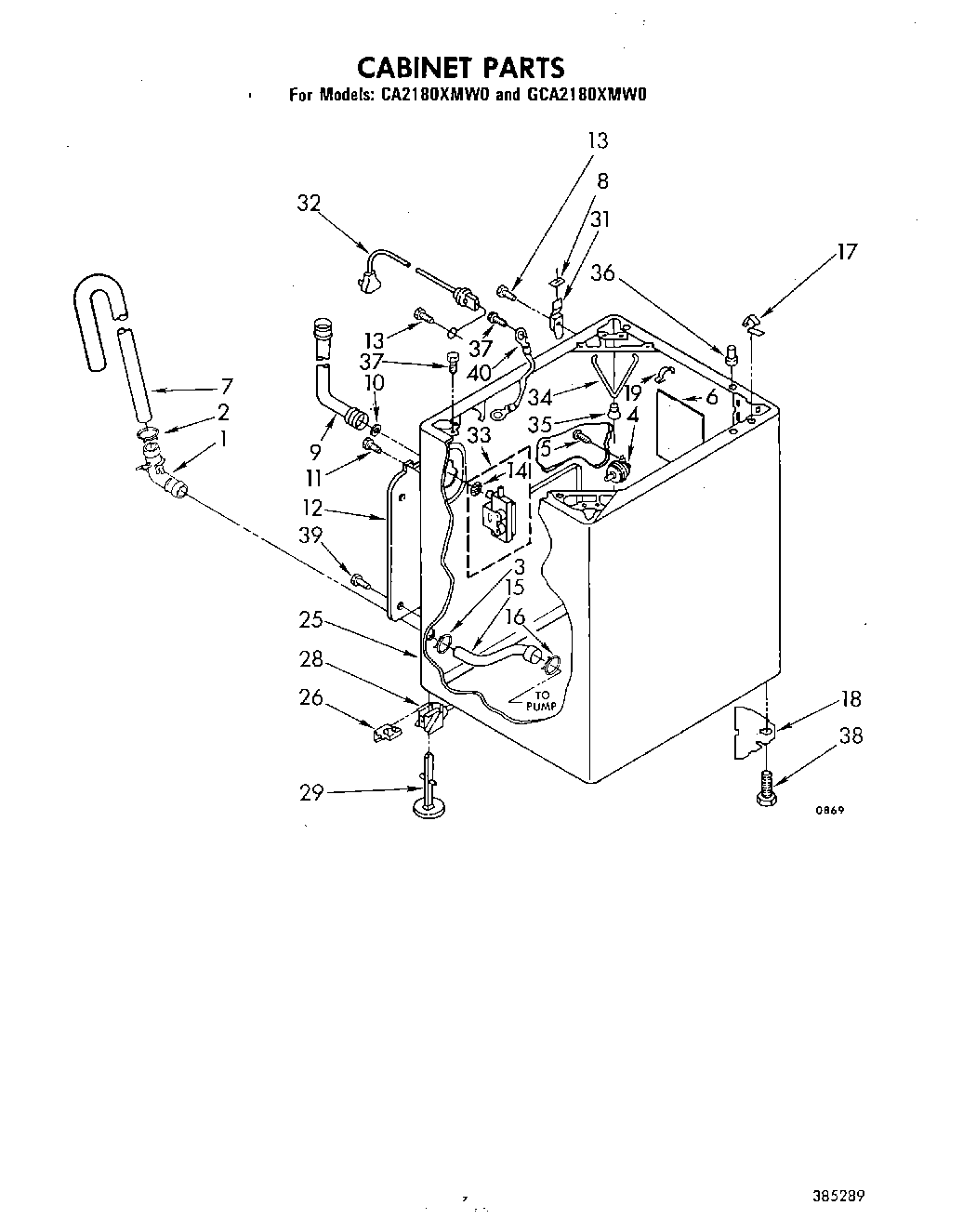

CA2180XMW0 07 – CABINET

CA2180XMW0 07 – CABINET

Written by

in

CA2180XMW0 07 – CABINET

Products

PositionProduct
1Connector, Hose
2WP356138 Whirlpool Hose Clamp
4Switch, Pressure
5WP90767 Whirlpool Screw
6Barrier, Splash
7WP96743 Whirlpool Hose
818849 Whirlpool Pad
9WP89503 Whirlpool Washer Fill Hose
10WP16123 Whirlpool Washer
11WP3351614 Whirlpool Screw
12Panel, Rear
13SCREW
14WP96160 Whirlpool Washer Inlet Valve Screen
15Hose, Pump Discharge
16WP285655 Whirlpool Hose Clamp
17WP18776 Whirlpool Lock
18Plate, Gusset
198528351 Whirlpool Clip
25Cabinet
26WP359364 Whirlpool Clip
28Link, Leveling
29WP358594 Whirlpool Leveling Feet
31Hinge, L.H.
31Hinge, R.H.
32Cord, Power (120 Volt)
33Valve, Mixing (358277) (Alt.) (358971) (Alt.) (Serviced Only As Complete Assemblies)
34Spring, Snubber
35Pad, Snubber
36Locator, Top
38WP367594 Whirlpool Leveling Feet
40WPL 364089
