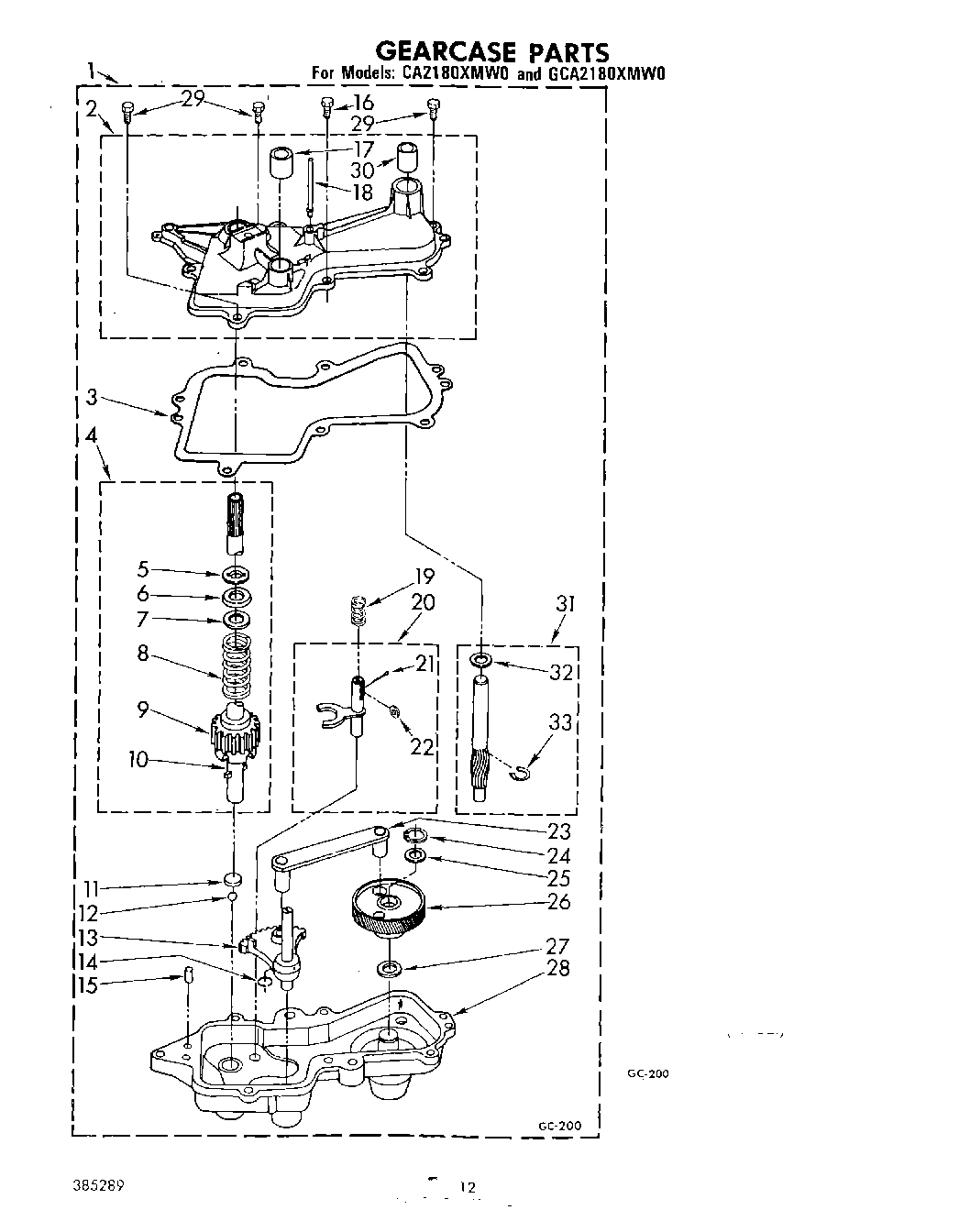

CA2180XMW0 10 – GEARCASE

Products

Position	Product
1	Gearcase (For Further Breakdown Refer To Page 10)
2	Cover, Gearcase
3	Gasket, Gearcase
4	Shaft, Agitator
5	Ring, Retainer
6	Seal, Agitator Shaft
7	Shield, Agitator Spring
8	Spring, Agitator Shaft
9	Gear, Agitator Shaft
10	Shaft, Agitator
11	285205 Whirlpool Bearing
13	Gear, Sector
14	Ring, Retainer
15	Pin, Dowel
16	Bolt, 5/16-24 x 3/4 (4)
17	Bearing, Gear Fork
18	Support, Brake Shoe Yoke
19	Spring, Gear Fork Shaft
20	Fork, Agitator Gear
21	Pin, Gear Fork Shaft
22	Roller, Gear Fork Shaft
23	Rod, Connecting
24	Ring, Retaining
25	Washer, Retainer
26	Gear, Main Drive
27	Washer, Thrust
28	Gearcase
29	Bolt, 5/16-24 x 1-1/8 (2)
30	Bearing, Drive Pinion
31	Pinion, Drive
32	Washer, Drive Pinion
33	Ring, Retainer
33	350572 Whirlpool Oil Transmission 15 Oz
