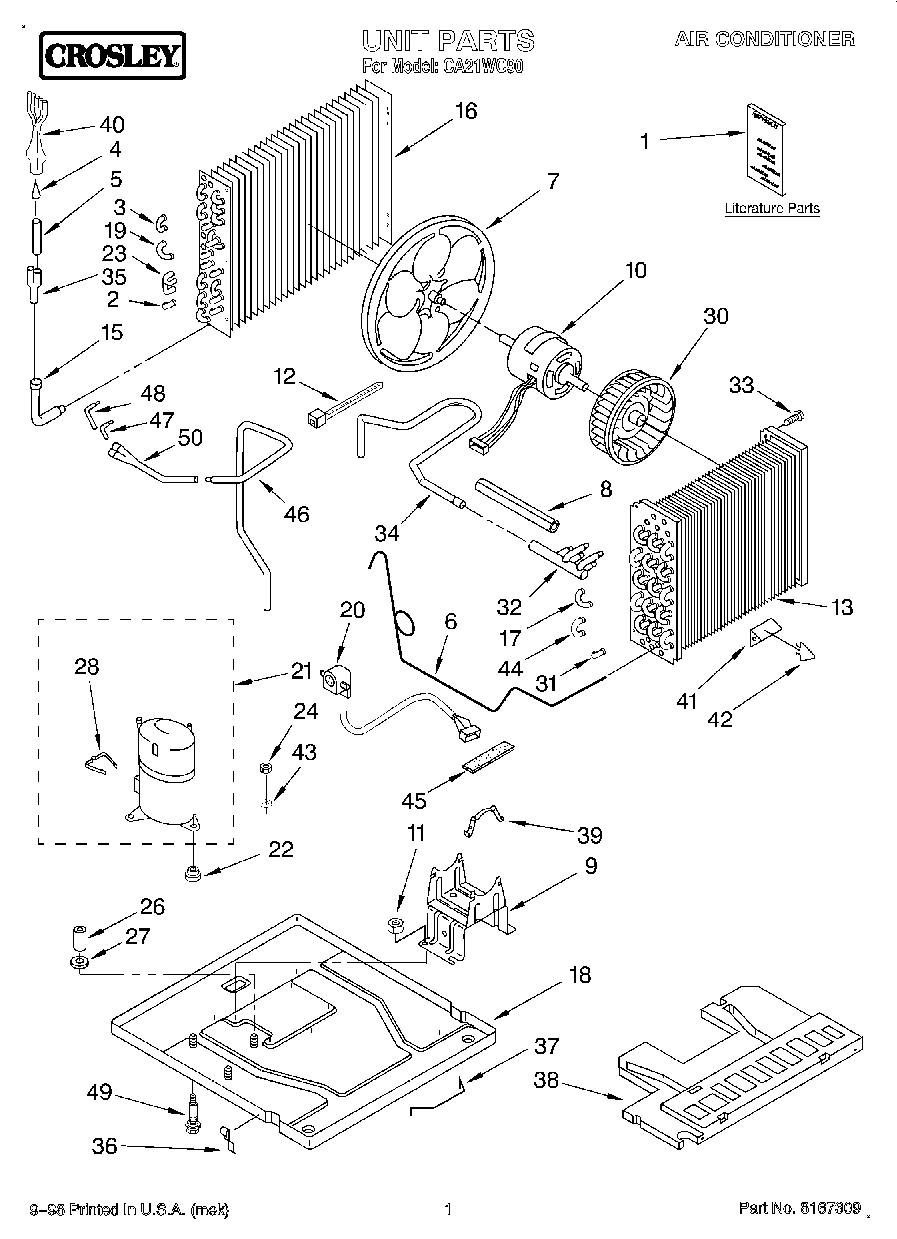

CA21WC90 01 – UNIT, LITERATURE

Products

Position	Product
1	Tech Sheet
1	Use & Care Guide
1	Wiring Diagram
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (5)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
15	Tube, Connecting
16	Condenser
17	Bend, Return Evaporator (4)
18	Base
19	Tube, Riser (2)
20	Harness, Wiring
21	Compressor
22	Grommet (3)
23	Bend, Return (3-Way)
24	Locknut (3)
26	Sleeve, Mounting
27	Spacer, Grommet
28	Retainer, Terminal Cover
30	Wheel, Blower
31	Bend, Return Evaporator (11)
32	Manifold, Suction
33	WP489069 Whirlpool Compactor Screw
34	Tube, Suction
35	Tube, Flow Divider
36	Clamp (2)
37	WPL 647971
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Distributor
41	Anticipator
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
44	Bend, Return Evaporator (4)
45	Seal, Restrictor Tube
46	Tube, Discharge
47	Tube, Feeder
48	Tube, Feeder
49	Bolt, Compressor
50	Tube, Discharge Top Assembly (Includes 51 & 52)
