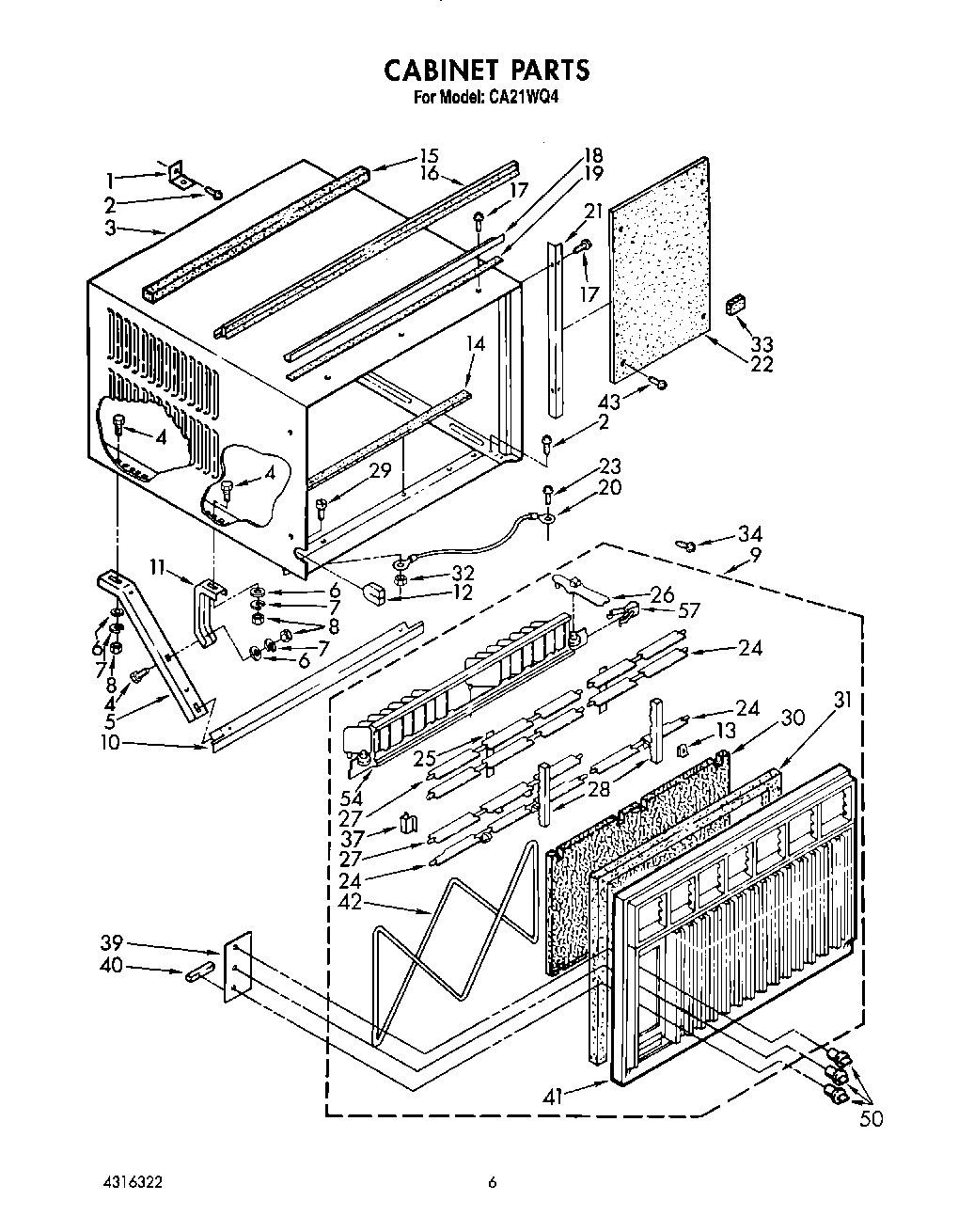

CA21WQ4 04 – CABINET

Products

Position	Product
1	Bracket
2	Screw (Window Lock Bracket)
3	Cabinet
3	Insulation Cabinet
4	Bolt, 1/4 x 3/4 (6)
5	Support, Cabinet (2)
6	WP120393 Whirlpool Washer Assembly
7	Lockwasher (6)
8	Nut, Hex (6)
9	Front, Cabinet (Assembly)
10	Bracket, Support
11	Support, Retainer (2)
12	Grommet, Appliance Cable
13	Clip, Cabinet Front (2)
14	Seal, Bottom
15	Gasket, Meeting Rail
16	Gasket, Sash
17	WP489069 Whirlpool Compactor Screw
18	Angle, Top Mounting
19	Strip, Seal
20	Wire, Ground
21	Angle (2)
22	Board, Filler
23	Screw, 8 x 3/8
24	Louver, Horizontal (Relieved)
25	Retainer (4)
26	Louver, Horizontal (Handle)
27	Louver, Horizontal (4)
28	Rack, Louver (2)
29	Screw, 8 x 3/8
30	Filter, Air
31	Seal, Front (Top & Sides)
31	Seal, Front (Bottom)
32	WP486255 Whirlpool Air Conditioner Nut
33	Spacer, Block (4)
34	Screw (2)
37	Clip, Retainer (4)
39	Plate, Escutcheon
40	Spacer, Escutcheon Plate (2)
41	Front, Cabinet
42	Retainer, Filter
43	Screw 8-18 x .295
50	Knob, Control (3)
54	WPL 953064
57	Detent Spring (2)
