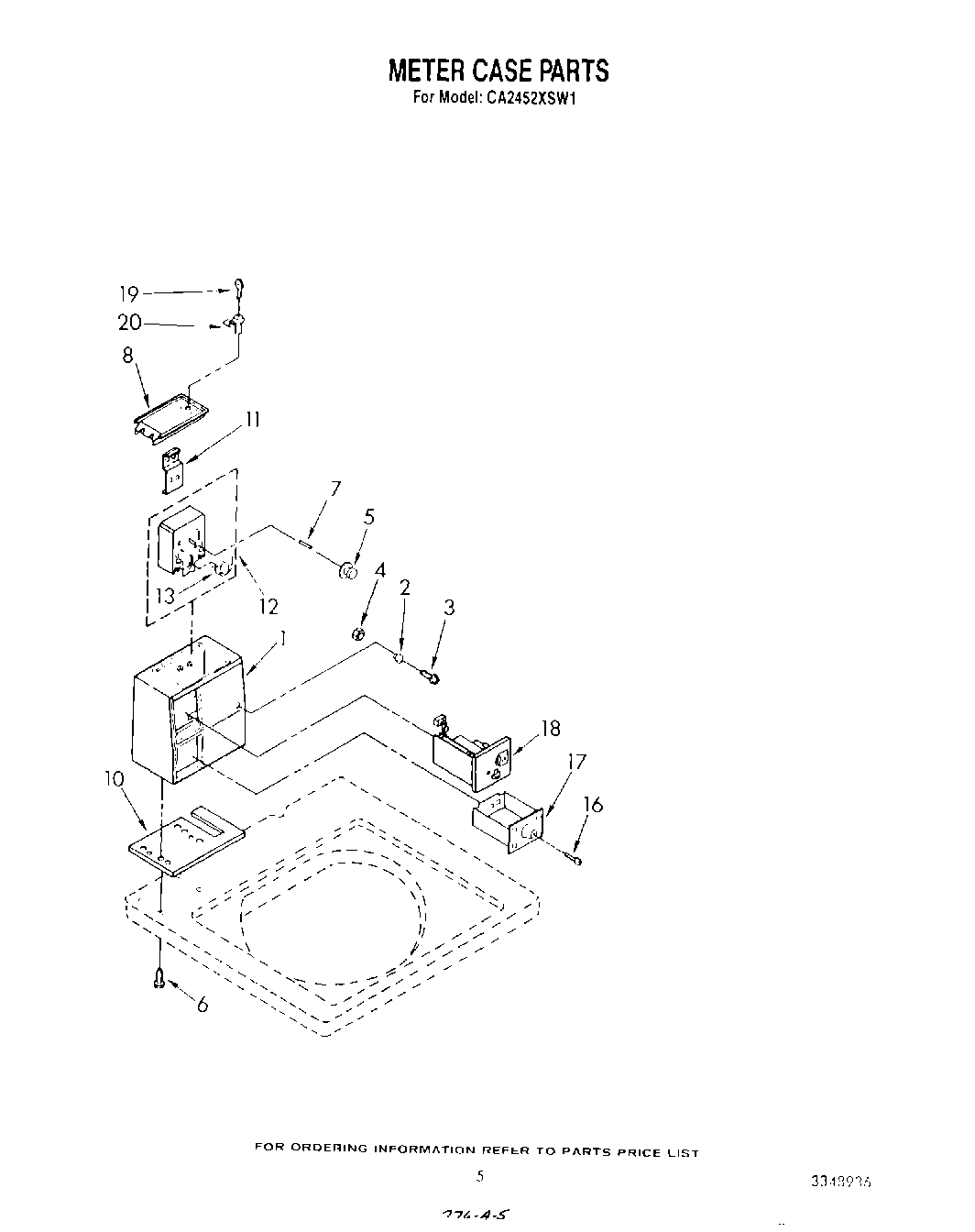

CA2452XSW1 04 – METER CASEadmin2025-04-26T10:53:03+00:00CA2452XSW1 04 – METER CASE
Products
| Position | Product |
|---|
| 1 | Meter Case (Golden Harvest) |
| 1 | Meter Case (Almond) |
| 1 | Meter Case (White) |
| 2 | Bumper |
| 3 | 339805 Whirlpool Screw |
| 4 | Nut |
| 5 | Knob, Timer |
| 6 | W11715721 Whirlpool Screw Assembly |
| 7 | WP688805 Whirlpool Spring Clip |
| 8 | Door, Service (New Gold) |
| 8 | Door, Service (For Almond Model) |
| 8 | W11283272 Whirlpool Washer Dryer Meter Case Access Door |
| 10 | Pad, Meter Case |
| 11 | Bracket, Timer |
| 11 | WP356418 Whirlpool Screw |
| 12 | Timer, 60 Hz. (Timer Motor Not A Service Part) |
| 13 | Motor, Timer |
| 16 | Key, Money Box |
| 17 | Money Box With Lock |
| 18 | Drop Coin Mechanism |
| 19 | Key, Service Door |
| 20 | Security Lock & Cam Assembly |
| 20 | To Order Coin Mechanism Parts Contact One Of Vendors Listed. |
| 20 | H. GreenWald Company 1340 Metropolitan Avenue Brooklyn, New York 11237 |
| 20 | Equiptment Systems Devices 1401 Dreshertown Road Dresher, Pa 19025 |
