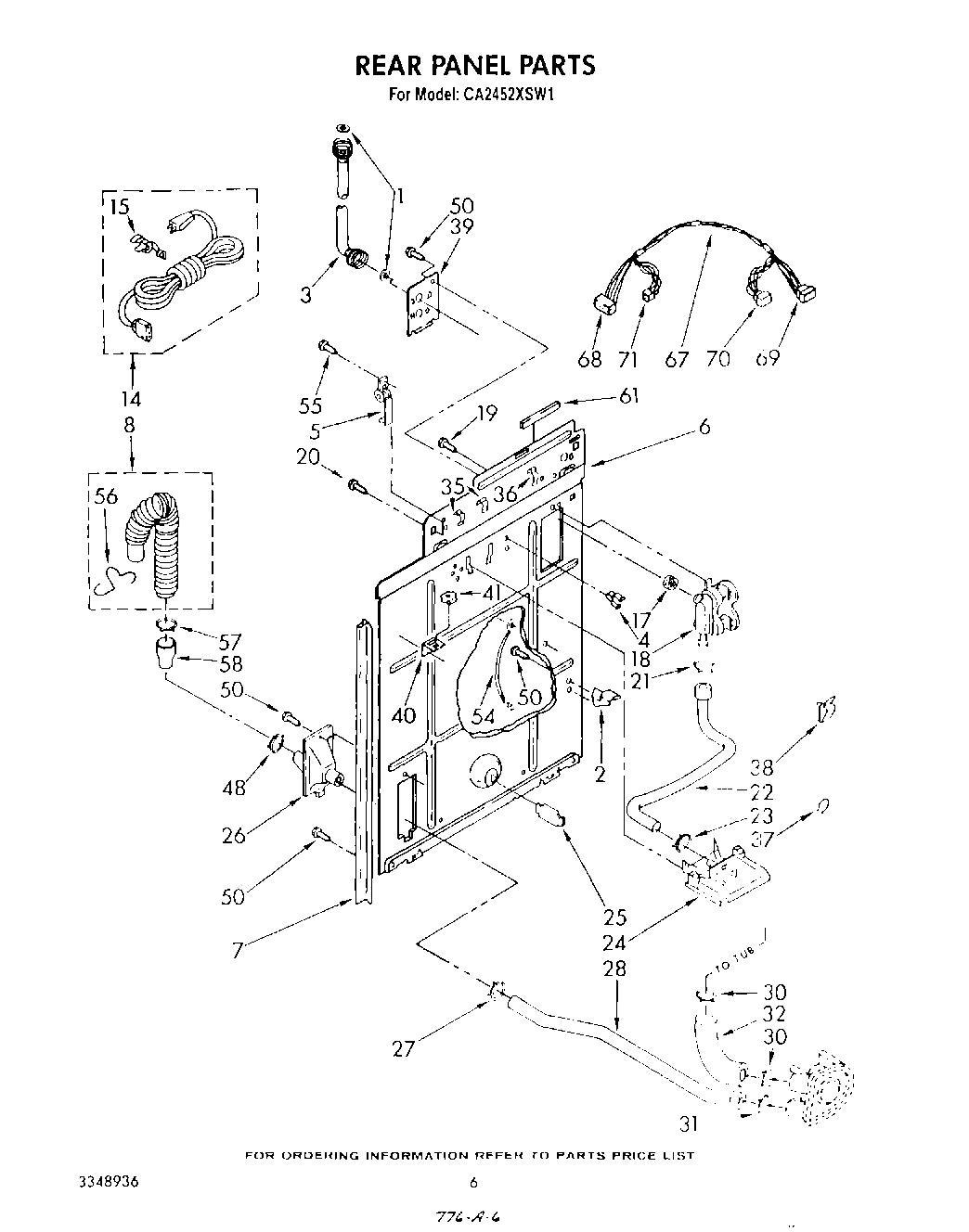

CA2452XSW1 05 – REAR PANELadmin2025-04-26T10:54:06+00:00CA2452XSW1 05 – REAR PANEL
Products
| Position | Product |
|---|
| 1 | WP16123 Whirlpool Washer |
| 2 | Pin, Cabinet Guide (2) |
| 3 | WP89503 Whirlpool Washer Fill Hose |
| 4 | Clip, Tubular |
| 5 | Hinge, Console (2) |
| 6 | Panel, Rear |
| 7 | WP62747 Whirlpool Pad |
| 8 | 285666 Whirlpool Drain Hose 10' |
| 8 | 285664 Whirlpool Drain Hose |
| 14 | Cord, Power |
| 15 | Strain Relief, Power Cord |
| 17 | WP96160 Whirlpool Washer Inlet Valve Screen |
| 18 | 285805 Whirlpool Washer Water Inlet Valve |
| 20 | SCREW |
| 21 | WP596669 Whirlpool Hose Clamp |
| 22 | HOSE |
| 24 | WP3347034 Whirlpool Vacuum Break |
| 25 | WP8519200 Whirlpool Support Assembly |
| 26 | WPW10358149 Whirlpool Hose |
| 27 | WP356138 Whirlpool Hose Clamp |
| 28 | WP3348552 Whirlpool Hose |
| 30 | WP371502 Whirlpool Clamp |
| 31 | WP285655 Whirlpool Hose Clamp |
| 32 | 285871 Whirlpool Hose and Clamp |
| 36 | 8528351 Whirlpool Clip |
| 37 | Clip, Harness (3) |
| 38 | Clip, Harness |
| 39 | Plate, Mixing Valve |
| 40 | Bracket, Top Lock |
| 41 | WP90406 Whirlpool Nut |
| 50 | WP3390631 Whirlpool Screw |
| 54 | WPL 364089 |
| 55 | WP308685 Whirlpool Microwave Screw |
| 56 | WPL 3350222 |
| 57 | WP616099 Whirlpool Clamp |
| 58 | WP384496 Whirlpool Hose Coupling |
| 61 | Edge Protector |
| 67 | Harness, Timer (Includes Illus. 68 Thru 71) |
| 68 | W10876590 Whirlpool Connector |
| 69 | Plug, Cabinet Harness |
| 70 | Connector |
| 71 | Plug, Terminal (6 Way) |
