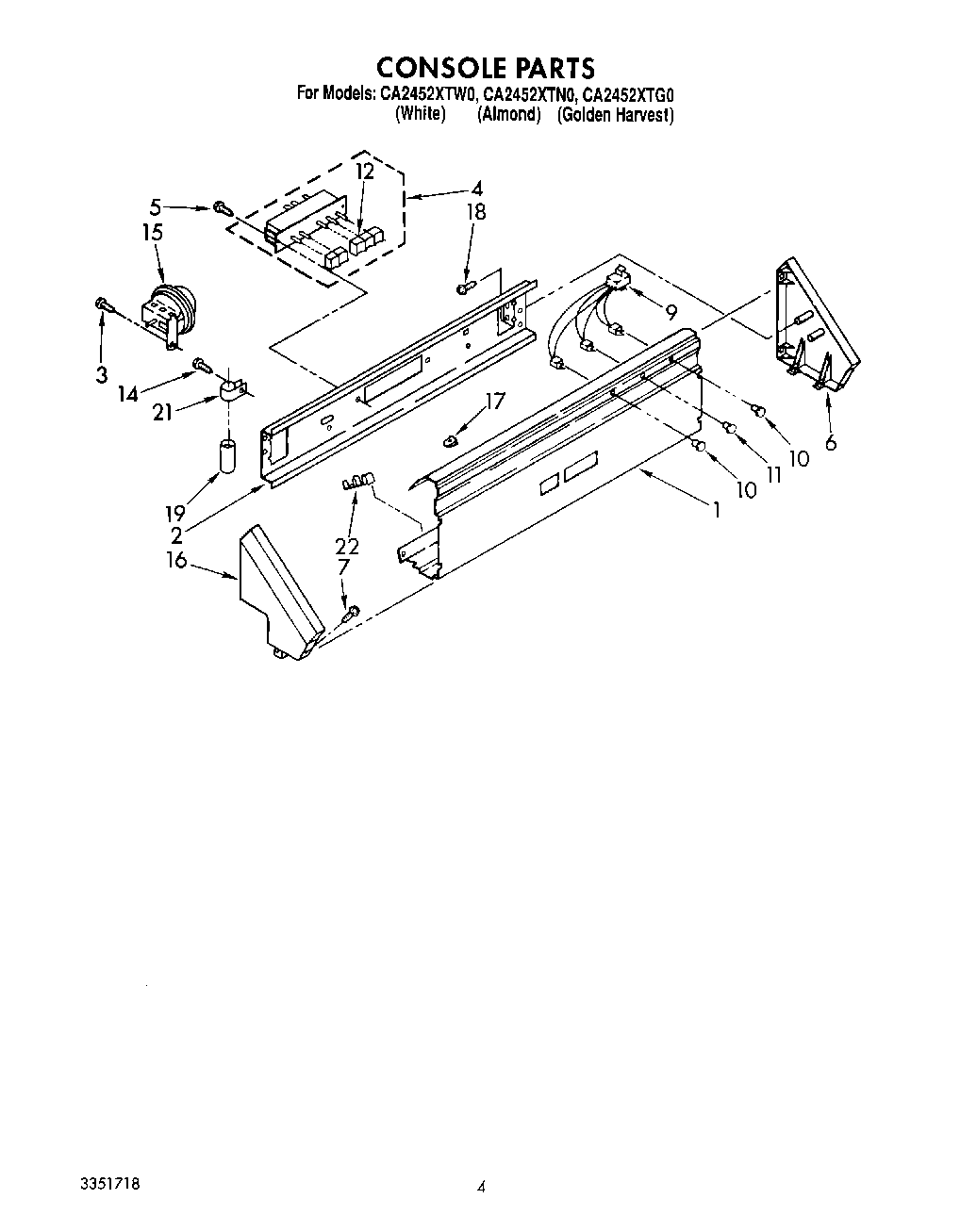

CA2452XTG0 02 – CONSOLE
Written by
in
CA2452XTG0 02 – CONSOLE
Products
Position
Product
1
Panel, Console
2
Bracket, Control
3
WP90767 Whirlpool Screw
4
Switch, Cycle Selector (Includes Illus. No. 12)
5
WP965173 Whirlpool Dishwasher Screw
6
WPL 63795
7
WPL 64211
10
WP3348109 Whirlpool Light Lens
11
WP3348110 Whirlpool Light Lens
12
Button (4)
14
SCREW
15
Switch, Water Level
16
End Cap (L.H.)
17
WP689559 Whirlpool Nut
18
WPL 355326
19
CAPACITOR
21
357030 Whirlpool Clamp
22
W10113937 Whirlpool Clamp
←
