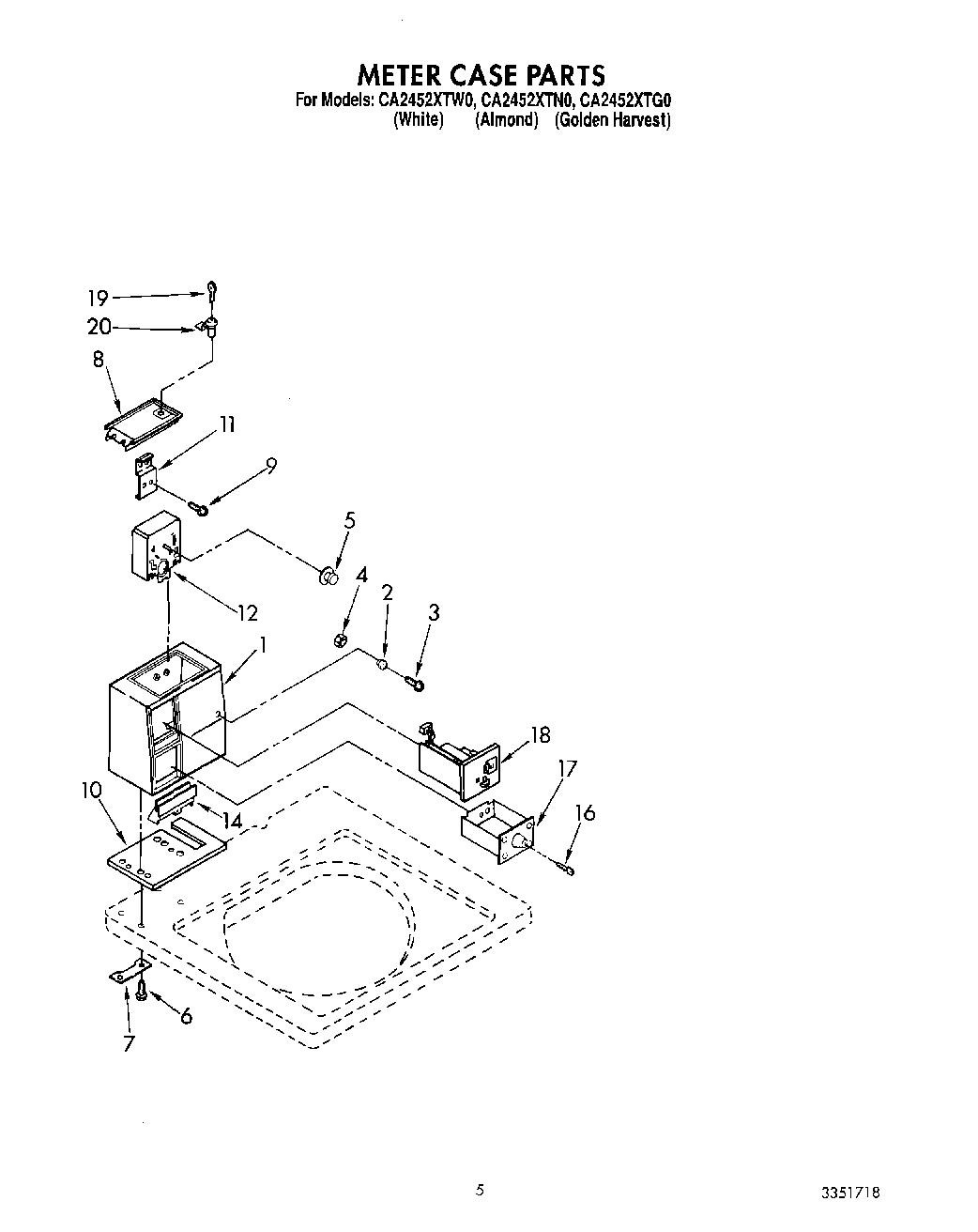

CA2452XTG0 03 – METER CASEadmin2025-04-26T10:52:40+00:00CA2452XTG0 03 – METER CASE
Products
| Position | Product |
|---|
| 1 | Meter Case (White) |
| 1 | Meter Case (Almond) |
| 1 | Meter Case (Golden Harvest) |
| 2 | Bumper |
| 3 | 339805 Whirlpool Screw |
| 4 | Nut |
| 5 | Knob, Timer |
| 6 | W11715721 Whirlpool Screw Assembly |
| 7 | 3347825 Whirlpool Plate |
| 8 | Door, Service (Golden Harvest) |
| 8 | W11283272 Whirlpool Washer Dryer Meter Case Access Door |
| 8 | Door, Service (Almond) |
| 9 | WP356418 Whirlpool Screw |
| 10 | Pad, Meter Case |
| 11 | Bracket, Timer |
| 12 | Timer, 60 Hz. (Timer Motor Not A Service Part) |
| 14 | Spacer, Money Vault (Golden Harvest) |
| 14 | Spacer, Money Vault (White) |
| 14 | Spacer, Money Vault (Almond) |
| 16 | xKey, Money Box |
| 17 | xxMoney Box With Lock |
| 18 | Drop Coin Mechanism |
