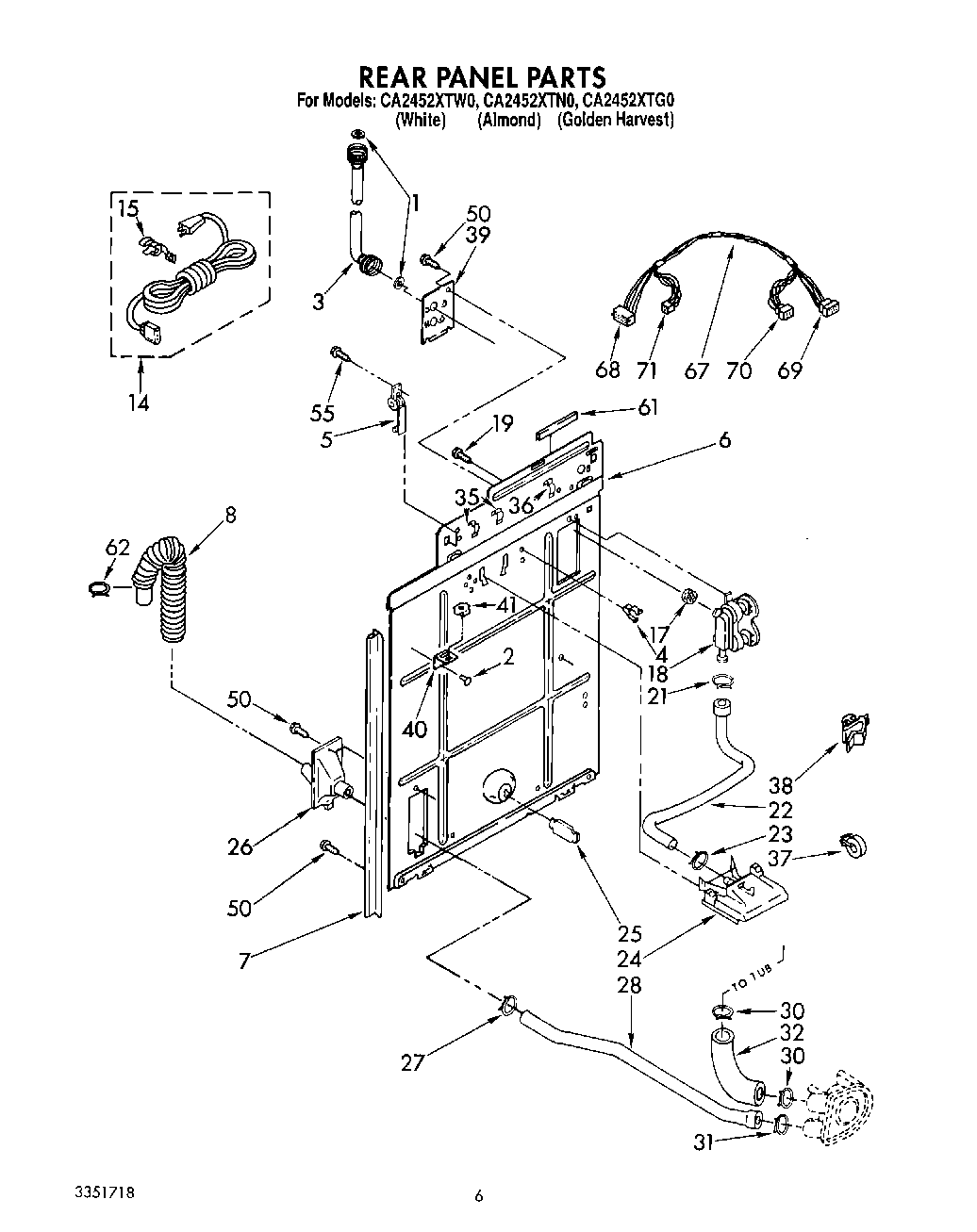

CA2452XTG0 04 – REAR PANEL

Written by

Products

Position	Product
1	WP16123 Whirlpool Washer
2	Rivet (2)
3	WP89503 Whirlpool Washer Fill Hose
4	Clip, Tubular
5	Hinge, Console (2)
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
14	285928 Whirlpool Power Cord Assembly
15	Strain Relief, Power Cord
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	285805 Whirlpool Washer Water Inlet Valve
22	HOSE
23	WP596669 Whirlpool Hose Clamp
24	WP3347034 Whirlpool Vacuum Break
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	WP3348552 Whirlpool Hose
30	WP371502 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
36	8528351 Whirlpool Clip
37	8559320 Whirlpool Clip
38	Clip, Harness
39	Plate, Mixing Valve
40	Bracket, Top Lock
41	WP90406 Whirlpool Nut
50	WP3390631 Whirlpool Screw
55	WP308685 Whirlpool Microwave Screw
61	Edge Protector
62	WP3357331 Whirlpool Clamp
67	Harness, Timer (Includes Illus. 68 Thru 71)
68	W10876590 Whirlpool Connector
69	Plug, Cabinet Harness
70	Connector
71	Plug, Terminal (6 Way)
