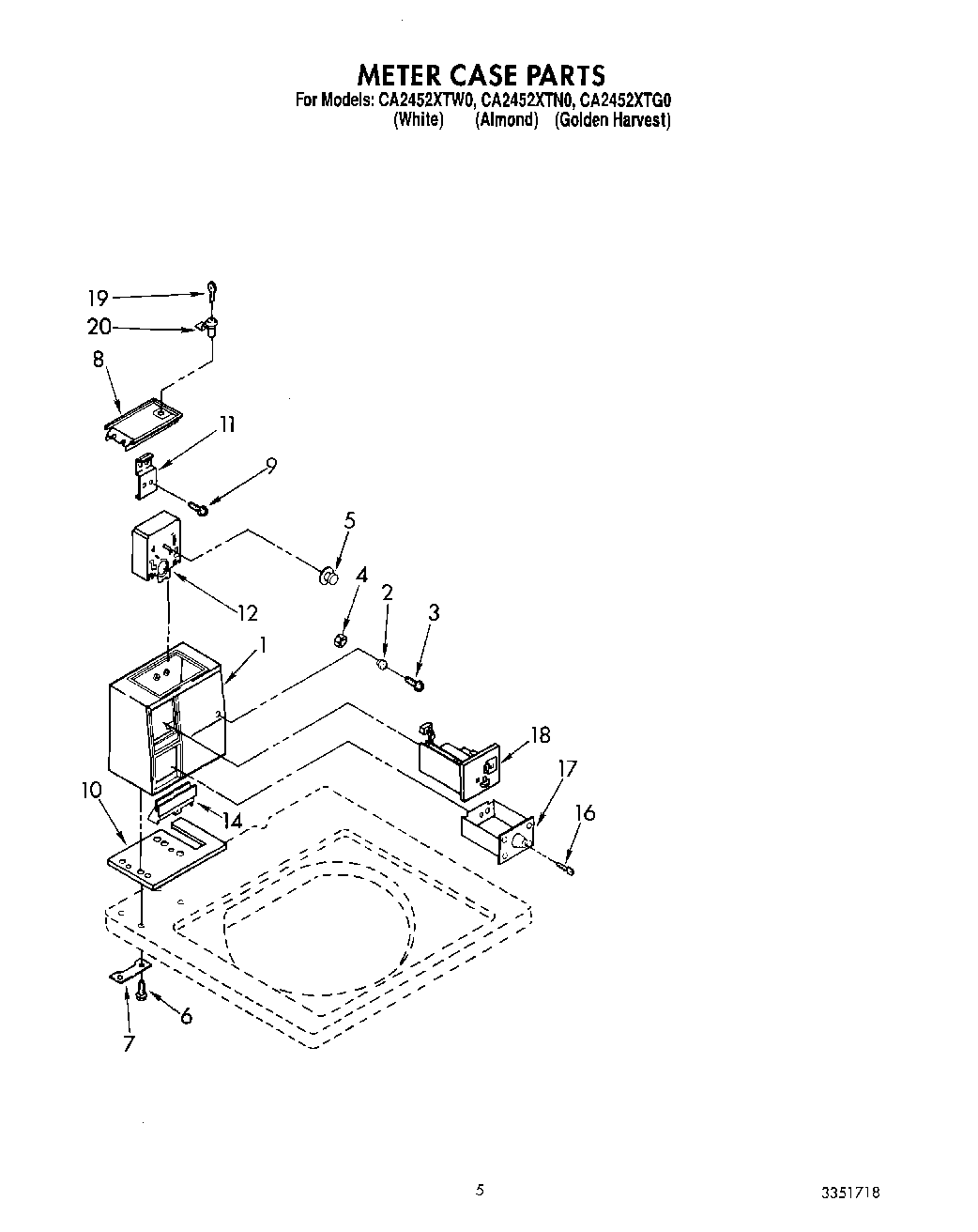

CA2452XTN0 03 – METER CASE

Written by

Products

Position	Product
1	Meter Case (Almond)
1	Meter Case (Golden Harvest)
1	Meter Case (White)
2	Bumper
3	339805 Whirlpool Screw
4	Nut
5	Knob, Timer
6	W11715721 Whirlpool Screw Assembly
7	3347825 Whirlpool Plate
8	Door, Service (Golden Harvest)
8	W11283272 Whirlpool Washer Dryer Meter Case Access Door
8	Door, Service (Almond)
9	WP356418 Whirlpool Screw
10	Pad, Meter Case
11	Bracket, Timer
12	Timer, 60 Hz. (Timer Motor Not A Service Part)
14	Spacer, Money Vault (Golden Harvest)
14	Spacer, Money Vault (Almond)
14	Spacer, Money Vault (White)
16	xKey, Money Box
17	xxMoney Box With Lock
18	Drop Coin Mechanism
