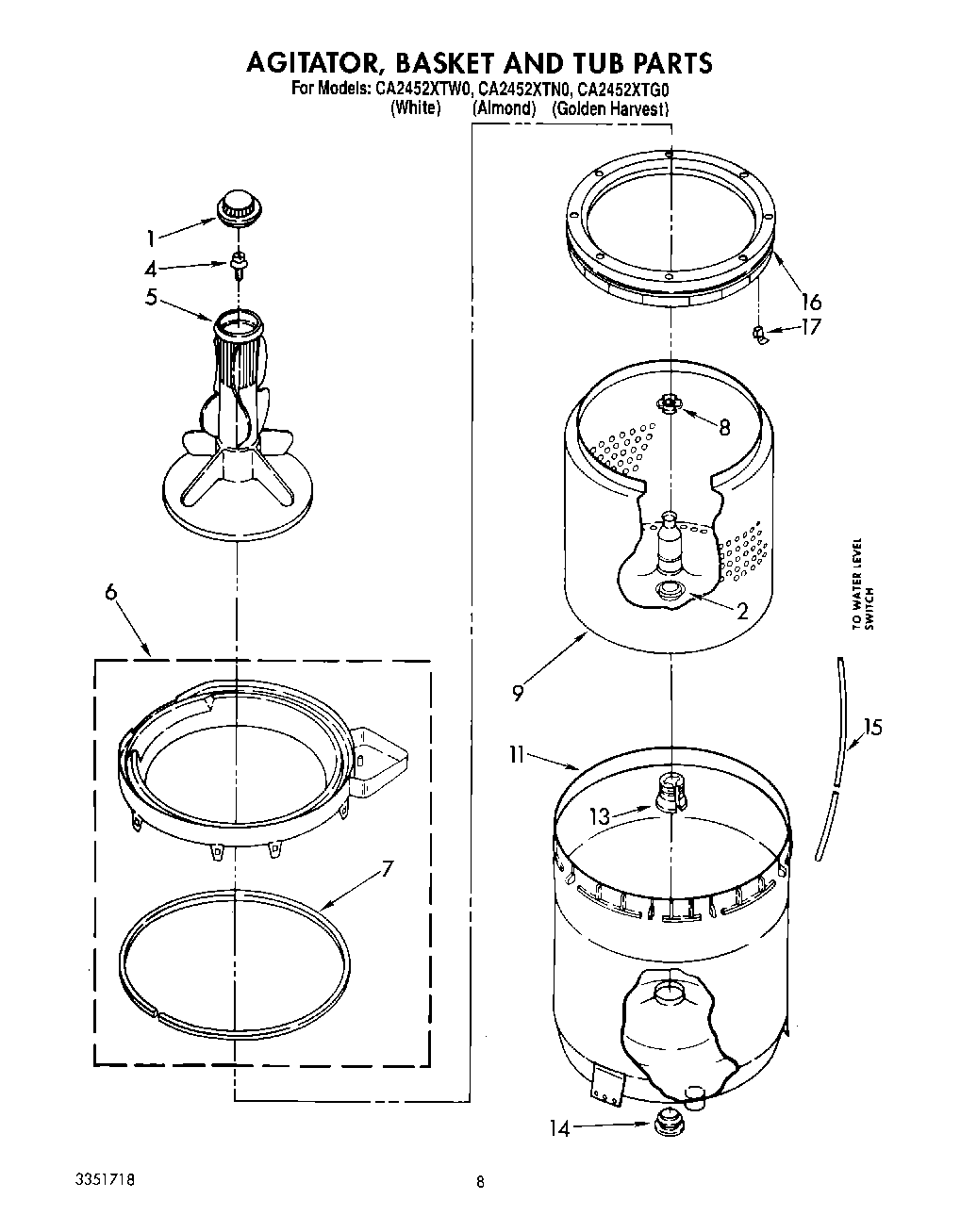

CA2452XTW0 05 – AGITATOR, BASKET AND TUB

Products

Position	Product
1	WP3355758 Whirlpool Agitator Cap
2	Snap-In-Plugs (4)
4	WP358237 Whirlpool Agitator Bolt
5	Agitator
6	Tub Ring & Gasket Assembly
7	WP3359586 Whirlpool Tub Seal
8	WP21366 Whirlpool Spanner Nut
9	Basket
11	Tub
13	WP389140 Whirlpool Drive Block or Bell
14	W10814296 Whirlpool Washer Center Post Seal Gasket
15	WP353244 Whirlpool Hose
16	WP8519815 Whirlpool Washer Balance Ring Clip
17	WP3956205 Whirlpool Balance Ring
