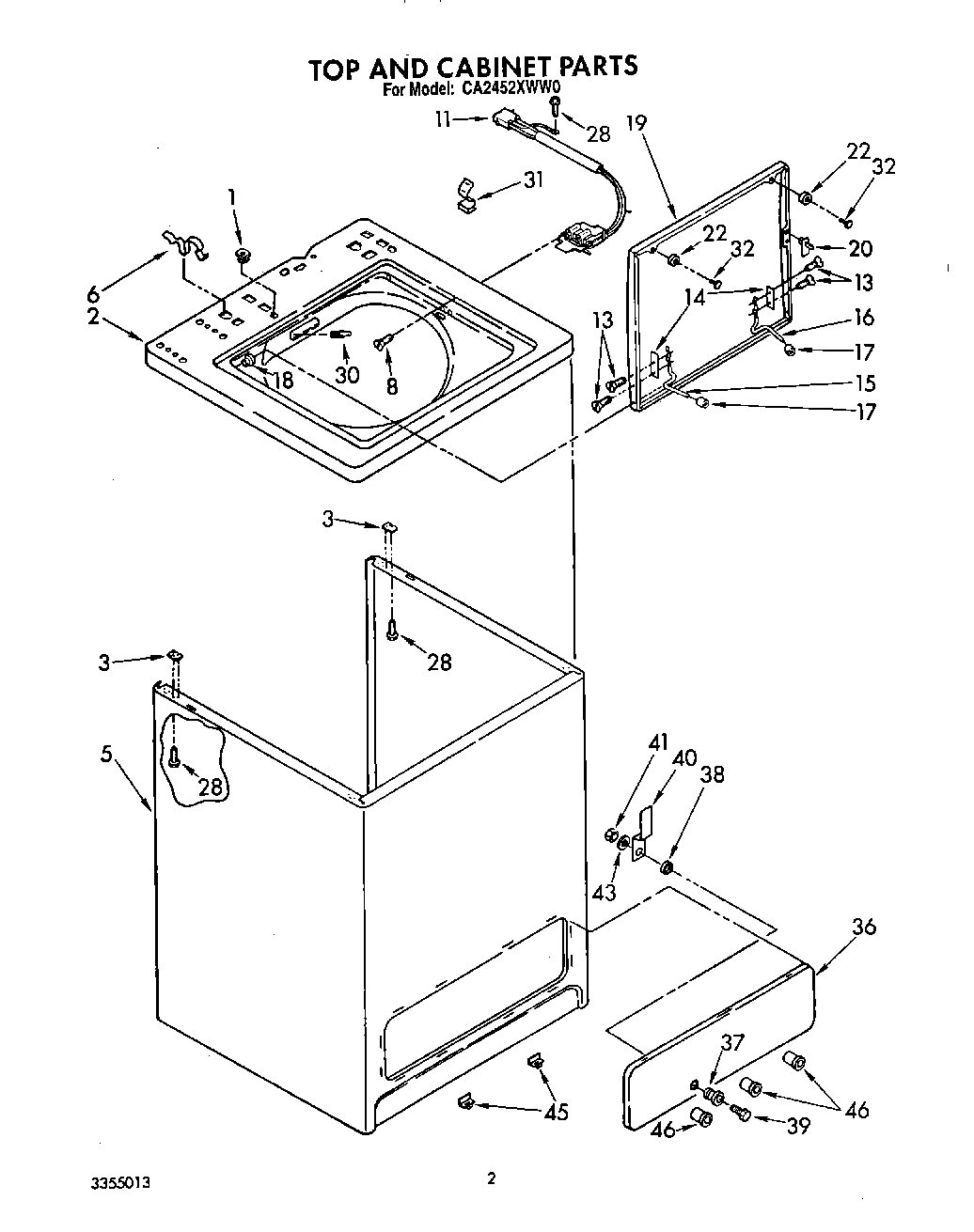

CA2452XWG0 02 – TOP AND CABINET, LIT/OPTIONAL

Written by

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Golden Harvest
	Golden Harvest (Uncut)
	Shipping Kit
	WPL LIT3355013
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WP285195 Whirlpool Sealer Assembly
	WPL LIT3356993
	WPL LIT3355024
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350572 Whirlpool Oil Transmission 15 Oz
	799344 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	WP72107 Whirlpool Touchup
	350938 Whirlpool Spray Gun
	Leveler (Thinner)
	Almond (Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
1	Nut, Push-In (2)
2	Top (White)
2	Top (Golden Harvest)
2	Top (Almond)
3	WP62750 Whirlpool Spacer
5	Cabinet (Golden Harvest)
5	Cabinet (Almond)
5	Cabinet (White)
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (Golden Harvest)
19	WPW10193854 Whirlpool Lid Assembly
19	Lid (Almond)
20	WP358684 Whirlpool Strike Assembly
22	BUMPER
28	SCREW
30	Rivet, Serial Nameplate
31	WP90016 Whirlpool Clip
32	WP356907 Whirlpool Rivet
36	Panel, Service (White)
36	Panel, Service (Almond)
36	Panel, Service (Golden Harvest)
37	Housing, Lock
38	Clip, Strain Relief
39	Lock Screw
40	Cam Lock
41	Nut, 3/8-16
43	Washer, Spring
45	Spacer (2)
46	Sleeve (3)
