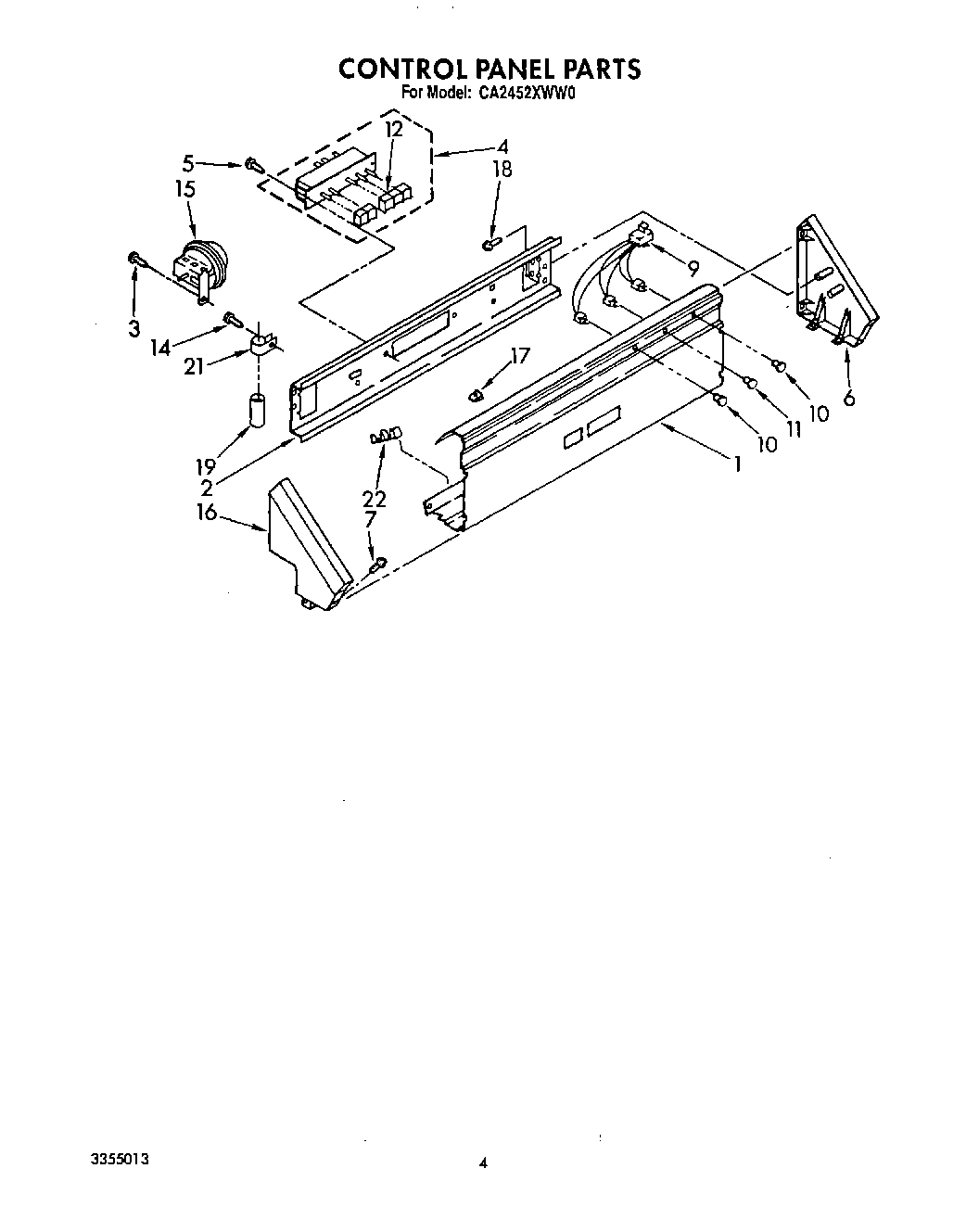

CA2452XWG0 03 – CONTROL PANEL

Products

Position	Product
1	Panel, Console
2	Bracket, Control
3	WP90767 Whirlpool Screw
4	Switch, Cycle Selector (Includes Illus. No. 12)
5	WP965173 Whirlpool Dishwasher Screw
6	WPL 63795
7	WPL 64211
10	WP3348109 Whirlpool Light Lens
11	WP3348110 Whirlpool Light Lens
12	Button (4)
14	SCREW
15	Switch, Water Level
16	End Cap (L.H.)
17	WP689559 Whirlpool Nut
18	WPL 355326
19	CAPACITOR
21	357030 Whirlpool Clamp
22	W10113937 Whirlpool Clamp
