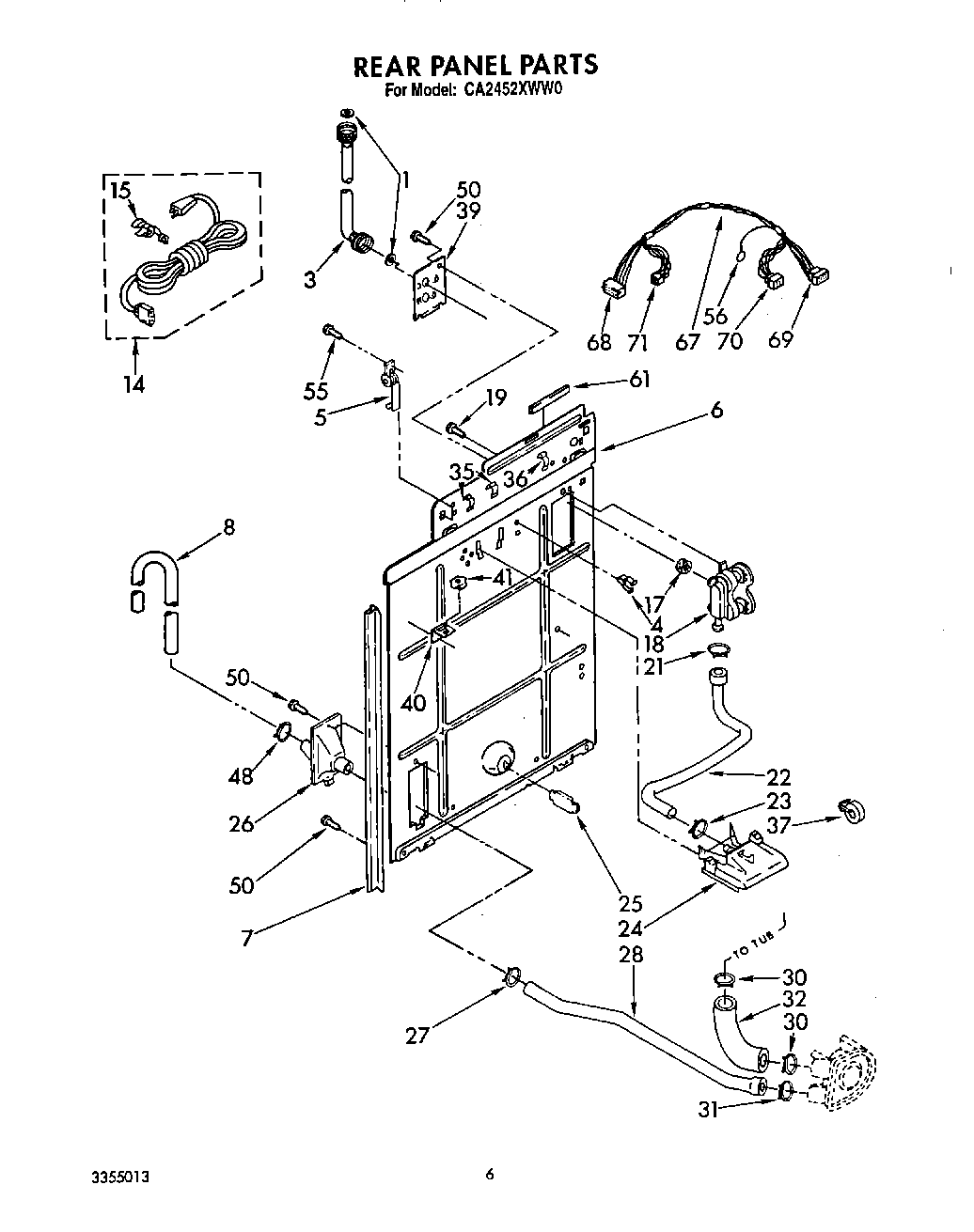

CA2452XWG0 05 – REAR PANEL

Written by

Products

Position	Product
1	WP16123 Whirlpool Washer
3	WP89503 Whirlpool Washer Fill Hose
4	Clip, Tubular
5	Hinge, Console (2)
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	WP96743 Whirlpool Hose
14	Cord, Power
15	Strain Relief, Power Cord
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	285805 Whirlpool Washer Water Inlet Valve
22	HOSE
23	WP596669 Whirlpool Hose Clamp
24	WP3347034 Whirlpool Vacuum Break
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
28	WP3348552 Whirlpool Hose
30	WP371502 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
36	8528351 Whirlpool Clip
37	8559320 Whirlpool Clip
39	Plate, Mixing Valve
40	Bracket, Top Lock
41	WP90406 Whirlpool Nut
48	WP356138 Whirlpool Hose Clamp
50	WP3390631 Whirlpool Screw
55	WP308685 Whirlpool Microwave Screw
56	Terminal, Ring
61	Edge Protector
67	Harness, Timer (Includes Illus. 68 Thru 71)
68	W10876590 Whirlpool Connector
69	Plug, Cabinet Harness
70	Connector
71	Plug, Terminal (6 Way)
