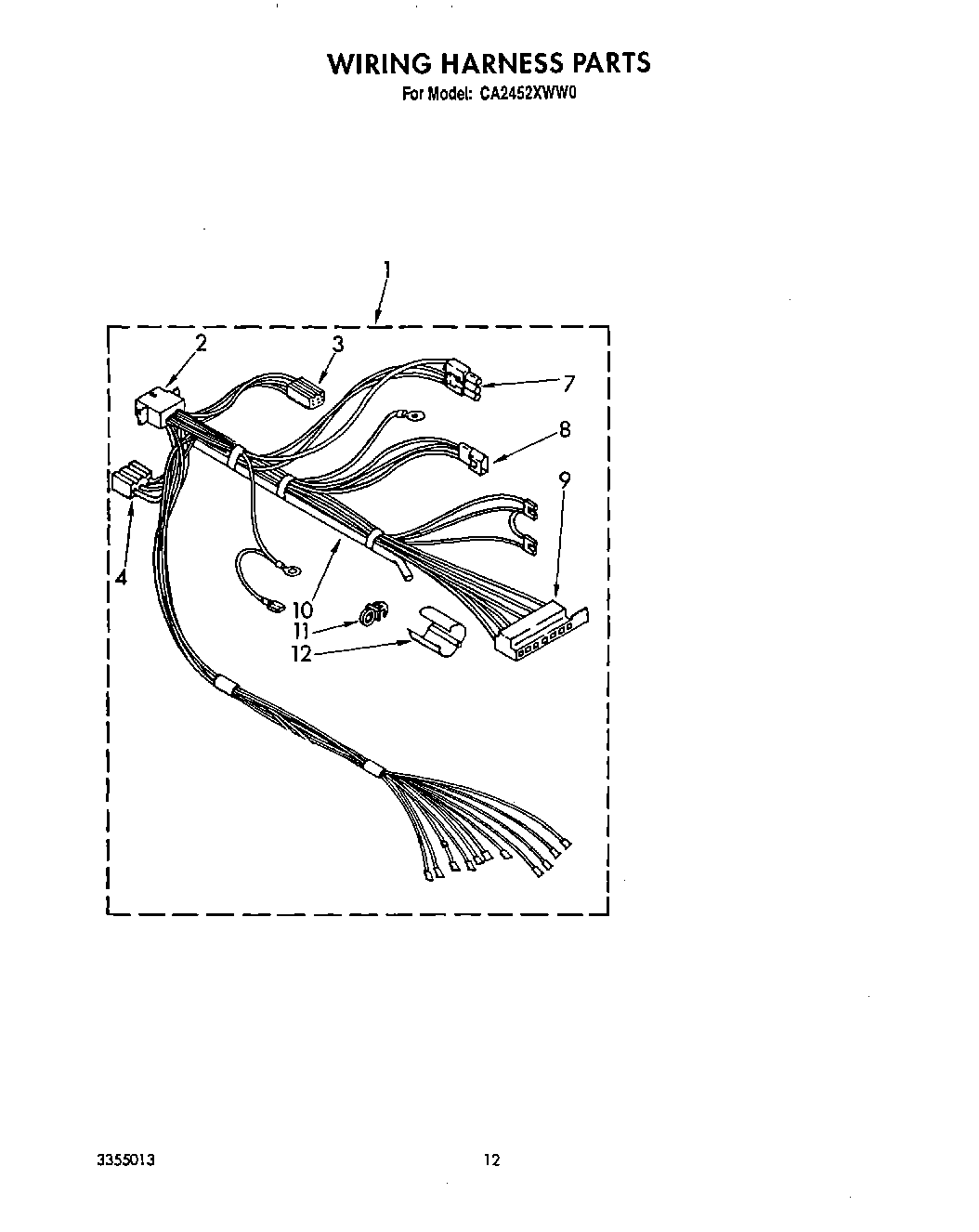

CA2452XWG0 10 – WIRING HARNESS

Written by

Products

Position	Product
1	Harness, Console
2	Cap, Terminal
3	Plug, Terminal (6 Way)
4	Receptacle, (6-Way) (Use Term. 94613)
7	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
8	353424 Whirlpool Connector
9	WP62505 Whirlpool Connector
10	WP353244 Whirlpool Hose
11	Clip, Harness
12	Protector, Harness
