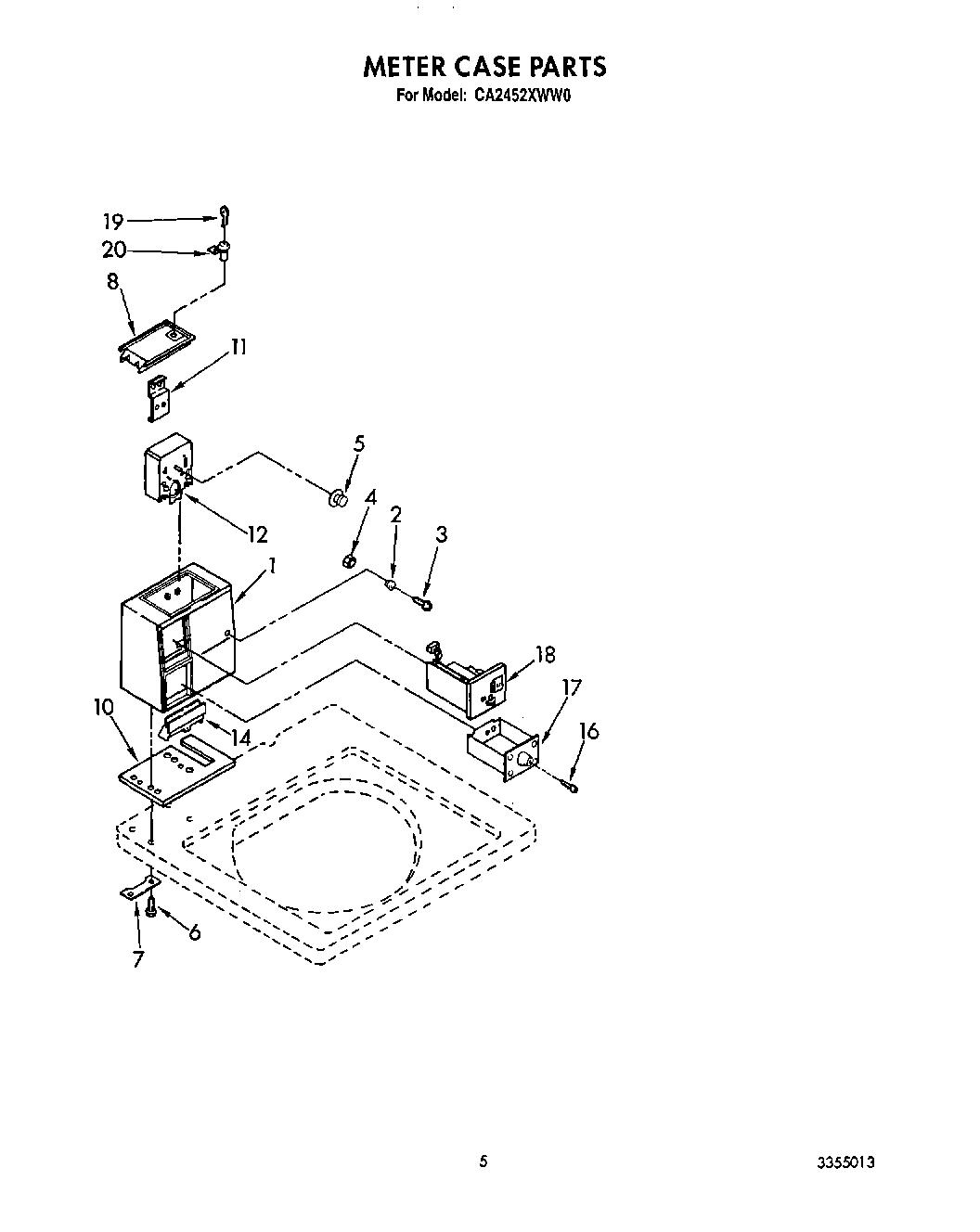

CA2452XWW0 04 – METER CASE

CA2452XWW0 04 – METER CASE

Written by

in

CA2452XWW0 04 – METER CASE

Products

PositionProduct
1Meter Case (Golden Harvest)
1Meter Case (White)
1Meter Case (Almond)
2Bumper
3339805 Whirlpool Screw
4Nut
5Knob, Timer
6W11715721 Whirlpool Screw Assembly
73347825 Whirlpool Plate
8Door, Service (For Almond Model)
8W11283272 Whirlpool Washer Dryer Meter Case Access Door
8Door, Service (New Gold)
10Pad, Meter Case
11WP356418 Whirlpool Screw
11Bracket, Timer
12WP3355023 Whirlpool Timer
13Timer Motor (Not a Serviceable Part)
14Spacer, Money Vault (Golden Harvest)
14Spacer, Money Vault (White)
14Spacer, Money Vault (Almond)
16Key, Money Box
17Money Box With Lock
18Drop Coin Mechanism
19Key, Service Door
20Security Lock & Cam Assembly
20Equipment Systems Devices 1401 Dreshertown Road Dresher, Pa 19025
20To Order Coin Mechanism Parts Contact One Of Vendors Listed.
20H. GreenWald Company 1340 Metropolitan Avenue Brooklyn, New York 11237
