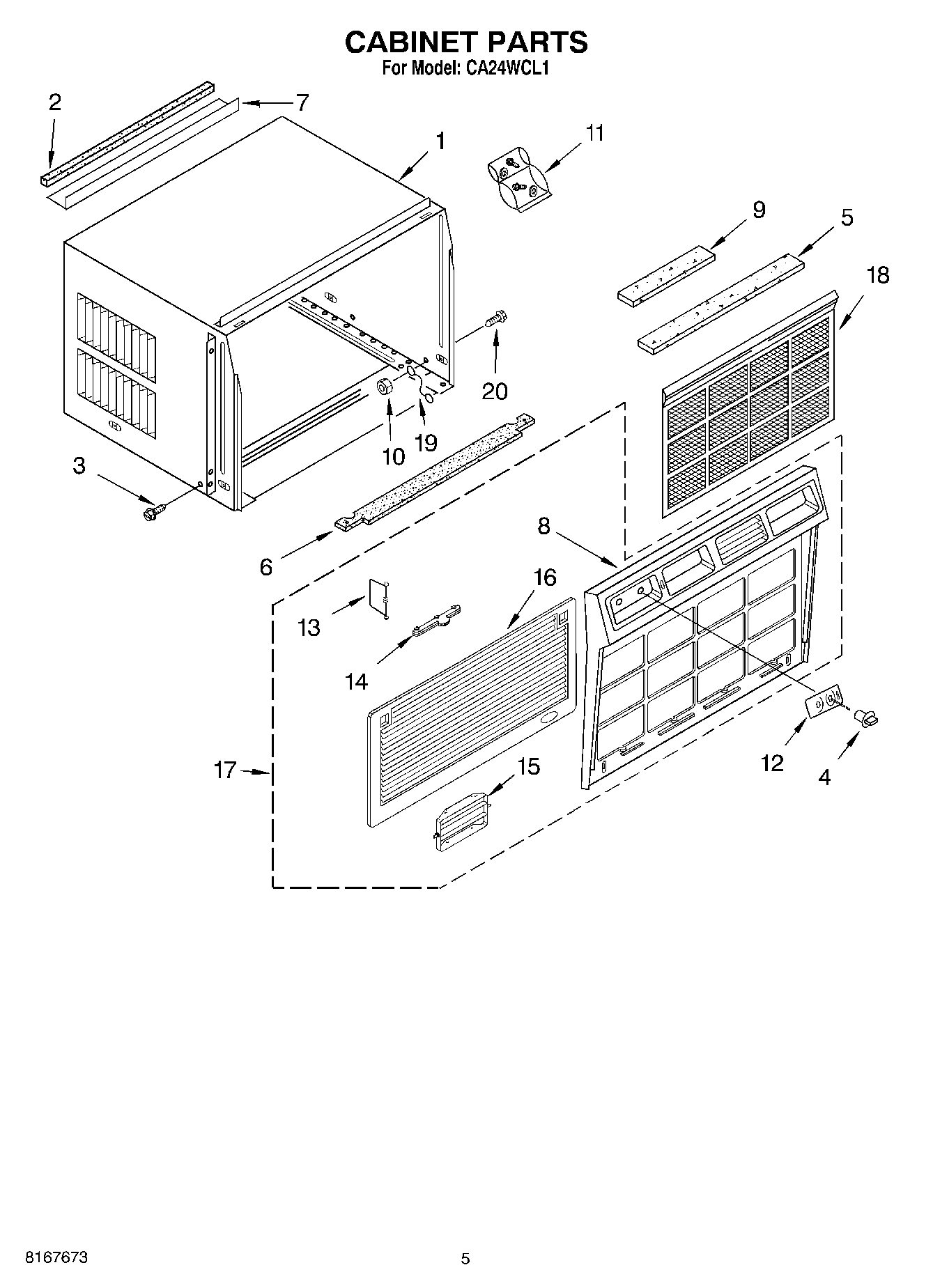

CA24WCL1 03 – CABINET PARTS

CA24WCL1 03 – CABINET PARTS

Written by

in

CA24WCL1 03 – CABINET PARTS

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP489069 Whirlpool Compactor Screw
4WP8031121 Whirlpool Air Conditioner Control Knob
5Seal, Hood-Large
6Seal
7Angle (Top)
8Frame, Front
9Seal, Hood-Small
10WP486255 Whirlpool Air Conditioner Nut
11Bag, Accessory
12Escutcheon
13Louver, Verticle
14Link, Verticle Louver (2)
15Cartridge
16Door, Filter
17Front, Complete
18Filter
19Wire, Ground
20WP488234 Whirlpool Air Conditioner Screw
