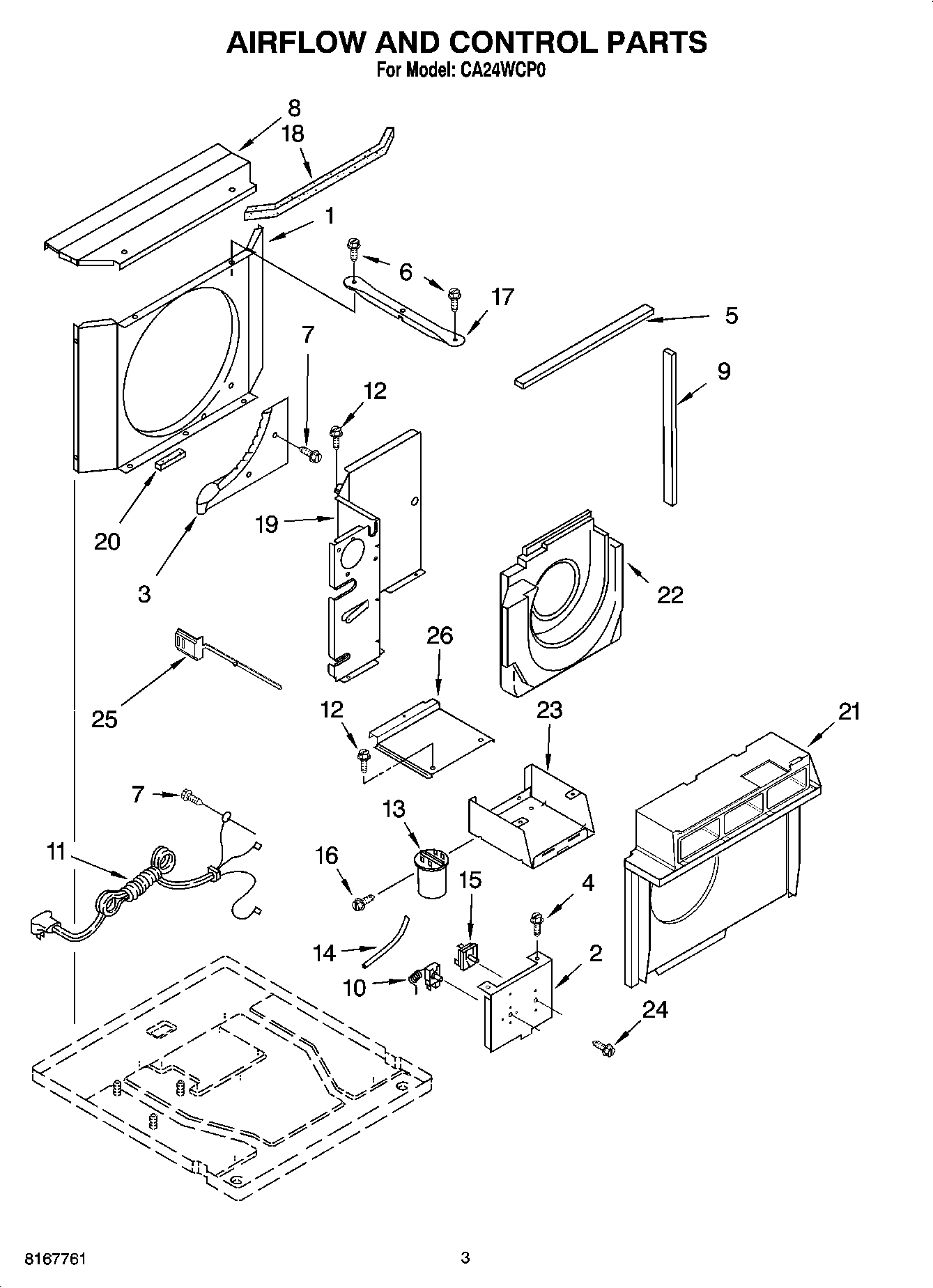

CA24WCP0 02 – AIRFLOW AND CONTROL PARTS

Products

Position	Product
1	Shroud, Condenser
2	Panel, Control
3	Cup, Condensate
4	Screw 8-18 x .295
5	Seal (Top)
6	WP308685 Whirlpool Microwave Screw
7	WP489069 Whirlpool Compactor Screw
8	Top, Condenser
9	Seal (Side)
10	Thermostat
11	Cord, Appliance
12	Screw, 8 x 3/8
13	Capacitor
14	Sleeve, Insulator
15	Switch, Rotary
16	WP489478 Whirlpool Refrigerator Screw
17	Support, Unit (2)
18	Seal, Shroud
19	Dividing Wall
20	Seal, Condensate Cup
21	Shroud Assembly, Evaporator
22	Housing, Air
23	Control Box
24	Screw, 6-32 x .175
25	Door, Exhaust
26	Cover, Control Box
