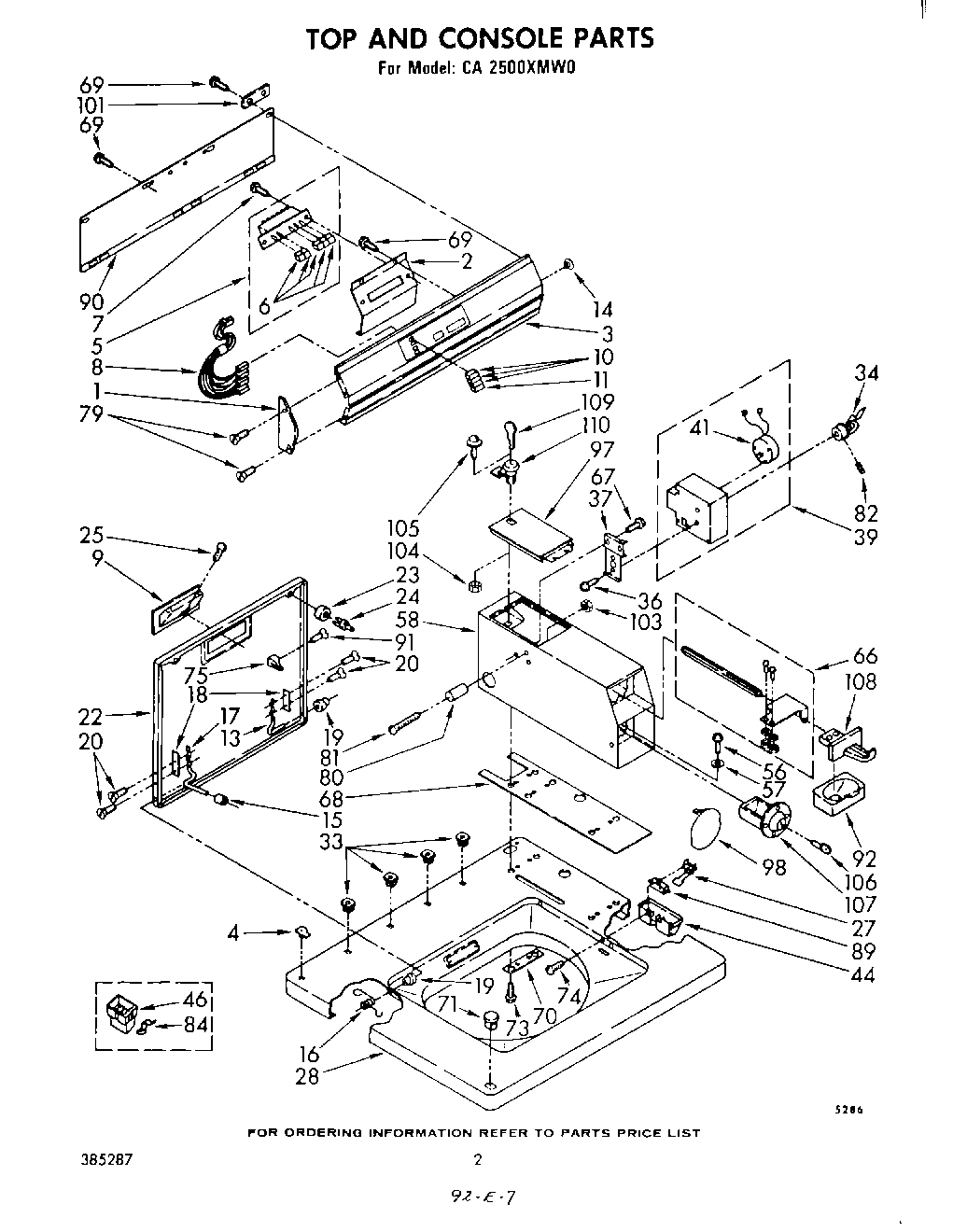

CA2500XMW0 02 – TOP AND CONSOLE

CA2500XMW0 02 – TOP AND CONSOLE

Written by

in

CA2500XMW0 02 – TOP AND CONSOLE

Products

PositionProduct
1Cap, End (L.H.)
2Bracket, Control
3Billboard, Console
4Nut, Push-In (1)
5Switch, Cycle Selector
6Pushbutton (4)
7WP965173 Whirlpool Dishwasher Screw
8Lights, Indicator (120 Volt) (Use W\/\C\A\2\1\\00X\M\W0 & GCA2100XMW0)
9Handle, Lid (Almond)
9Handle, Lid (Golden Harvest)
9Handle, Lid (New Avocado)
9Handle, Lid (White)
10Lens, Amber (3)
11Lens, Yellow (1)
13WP91770 Whirlpool Hinge
14Plug, Button
15Bumper, Lid Hinge
16Spring, Hinge
17Hinge, L.H.
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
22Lid (Golden Harvest)
22Lid (New Avocado)
22Lid (White)
22Lid (Almond)
23BUMPER
24WP356907 Whirlpool Rivet
25Screw
27Switch Actuator Assembly
28Top (White)
28Top (New Avocado)
28Top (Golden Harvest)
28Top (Almond)
33Nut, Push-In (2)
34Clutch, Timer
36WP356418 Whirlpool Screw
37Bracket, Timer
39Timer, 60 Hz. (120 Volt) (Use W/Models CA2000XMW0 & GCA2000XMW0)
41Motor, Timer (60 Hz.)
44WP359231 Whirlpool Shield
46Cap, Terminal
56Bolt, 5/16-24 x 3/4 (4)
57Lockwasher, 5/16
58Meter Case Assembly (Almond)
58Meter Case Assembly (White)
58Meter Case Assembly (New Avocado)
58Meter Cas
66WPL 385558
67339805 Whirlpool Screw
68WP3954812 Whirlpool Cushion
69SCREW
70Plate & Nut Assembly
71WP387371 Whirlpool Plug
73Screw
74Screw & Washer, Lid Switch (2)
75Strike, Lid Switch
79WP355515 Whirlpool Screw
80Stop, Lid
81WPL 132926
82Setscrew, 10-32
84WP90016 Whirlpool Clip
89W10820036 Whirlpool Door Switch Kit
90WPL 356441
91Screw & Washer
92WP385421 Whirlpool Coin Operated Laundry Funnel
97Door, Service (Golden Harvest)
97Door, Service (Almond)
97Door, Service (New Avocado)
97W11283272 Whirlpool Washer Dryer Meter Case Access Door
98WPL 376429
101WPL 357856
103Nut, Hex
105Screw & Washer
