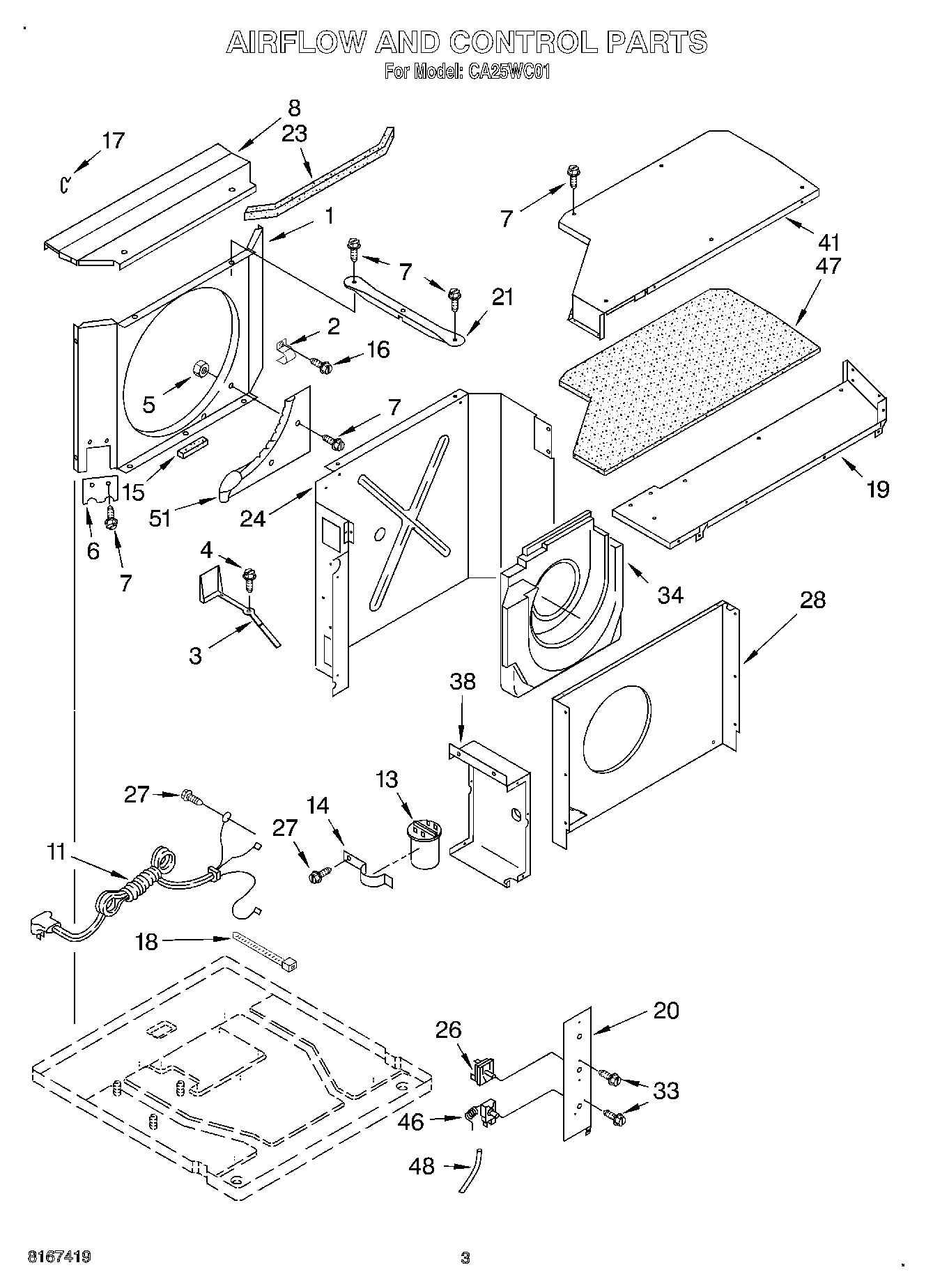

CA25WC01 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	Clip, Wet Loop
3	Door, Exhaust
4	Screw, 8-18 x .437
5	WP488130 Whirlpool Air Conditioner Nut
6	Clip, Nylon
7	Screw, 8 x 3/8
8	Top, Condenser
11	Cable, Appliance
13	Capacitor
14	Bracket, Capacitor
15	Seal, Condensate Cup
17	Clip, Shroud (2)
18	WPW10339879 Whirlpool Wire Tie
19	Top, Evaporator Shroud
20	Panel, Control
21	Support, Unit (2)
23	Seal, Shroud
24	Dividing Wall
26	Switch, Rotary
27	WP489069 Whirlpool Compactor Screw
28	Shroud Assembly, Evaporator
33	Screw, 6-32 x .175
34	Housing, Air
38	Control Box (R.S.)
41	Cover, Top
46	Control, Temperature
47	Insulation, Top Cover
48	Sleeve, Insulating
51	Cup, Condensate
