CA25WQ4 02 – UNIT, LIT/OPTIONAL

CA25WQ4 02 – UNIT, LIT/OPTIONAL

Written by

in

CA25WQ4 02 – UNIT, LIT/OPTIONAL

Products

PositionProduct
List, Repair Parts
Sheet, Tech And Wiring Diagram
Instructions, Installation
Wiring Diagram
Guide, Use And Care

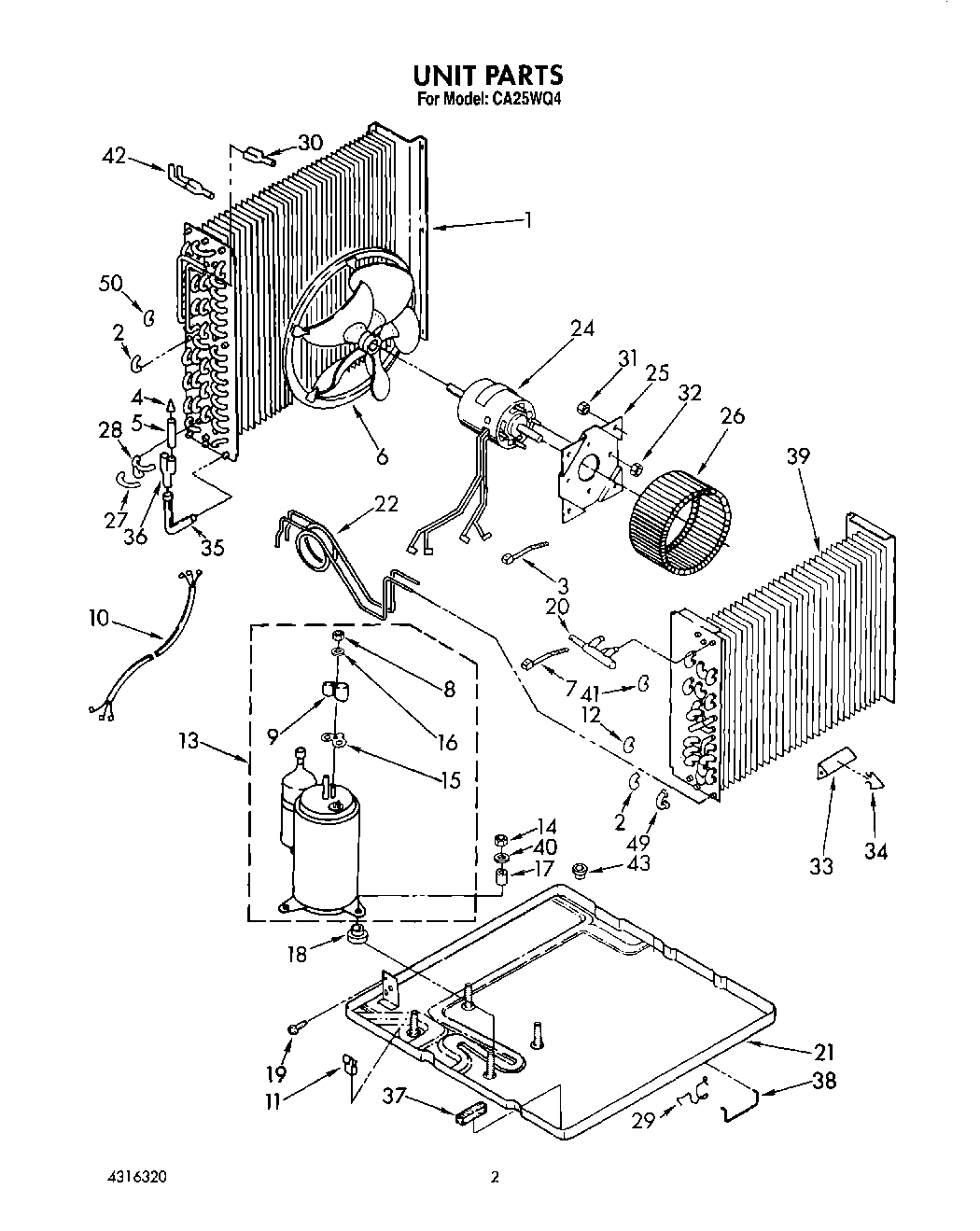

1Condenser
2Bend, Return Evaporator (11)
4Strainer
5Tube, Outlet (Includes Illus. 4)
6Blade, Fan
7WPW10339879 Whirlpool Wire Tie
8WP950027 Whirlpool Mounting Nut
9WP950036 Whirlpool Cover Assembly
10Harness, Wiring
11Clamp, Restrictor Tube
12Bend, Return Condenser (3) Evaporator (1)
13Compressor
14Locknut (3)
15WP950035 Whirlpool Cover Gasket
16Gasket, Nut
17Sleeve (3)
18Grommet (3)
19WP488729 Whirlpool Refrigerator Door Screw
20Tube, Manifold
21Base
22Tube, Restrictor (3) (53.0“ Length)
24Motor, Fan
25WPL 998024
26Wheel, Blower
27Bend, Return
28Bend, Return (3-Way)
29Clip, Mtg. (3)
30Tube, Flow Divider
31Nut, Hex (4)
32WP488130 Whirlpool Air Conditioner Nut
33Anticipator
34Clip (2)
35Tube, Outlet
36Tube, Flow Divider
37Seal
38WPL 647971
39Evaporator
40Washer, Flat (3)
41Tube, Riser (2)
42Divider, Complete
43Bushing, Base
49WP855199 Whirlpool Bend Return
50Bend, Return Evaporator (4)
