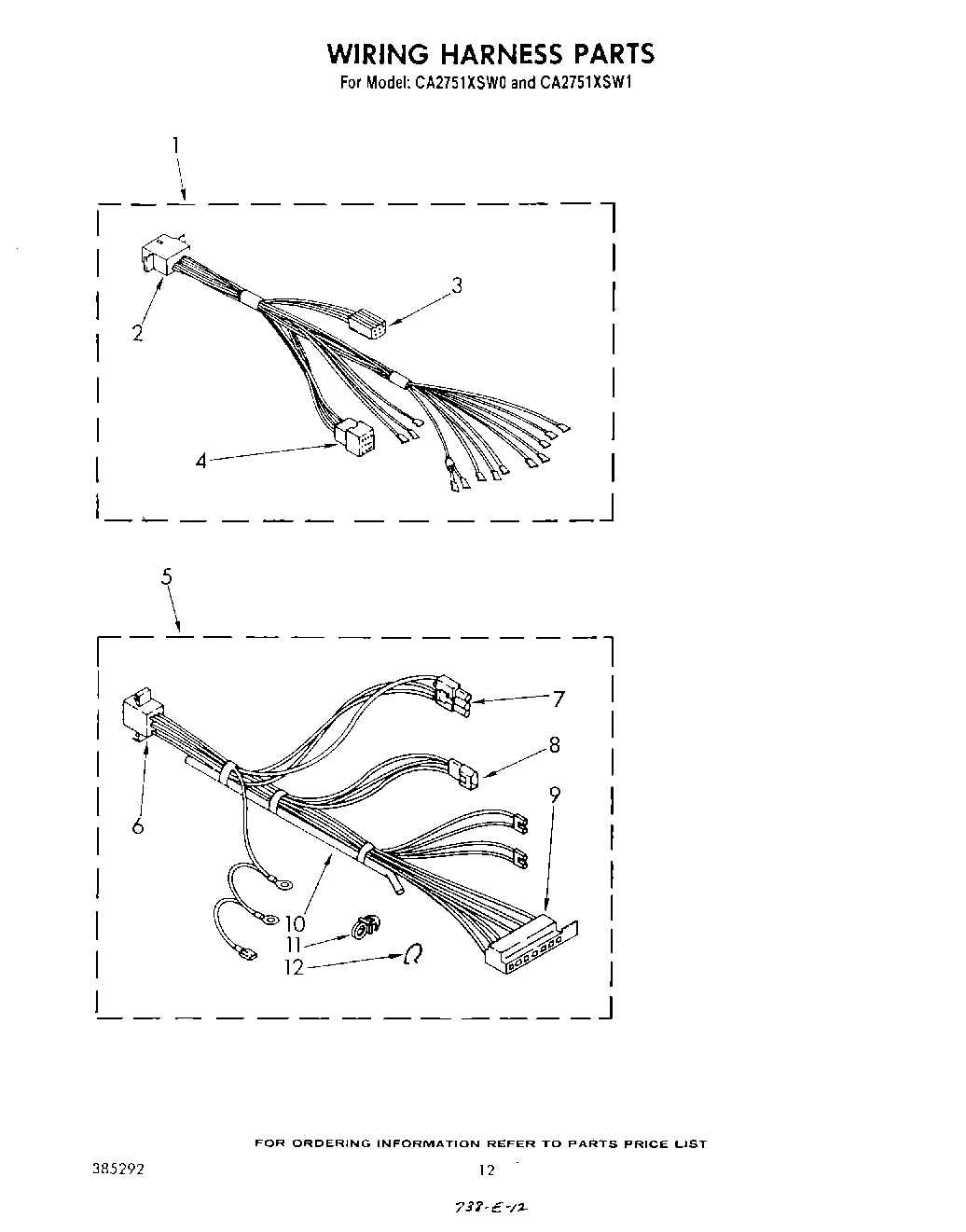

CA2751XSW0 10 – WIRING HARNESS

Products

Position	Product
1	Harness, Console
2	Plug, Terminal (15 Way)
3	Plug, Terminal (6 Way)
4	Cap, Terminal
5	Harness and Pressure Switch Hose
6	Plug, Cabinet Harness
7	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
8	353424 Whirlpool Connector
9	WP62505 Whirlpool Connector
10	WP353244 Whirlpool Hose
11	Clip, Harness
12	Protector, Harness
