CA2751XSW1 04 – METER CASE

CA2751XSW1 04 – METER CASE

Written by

in

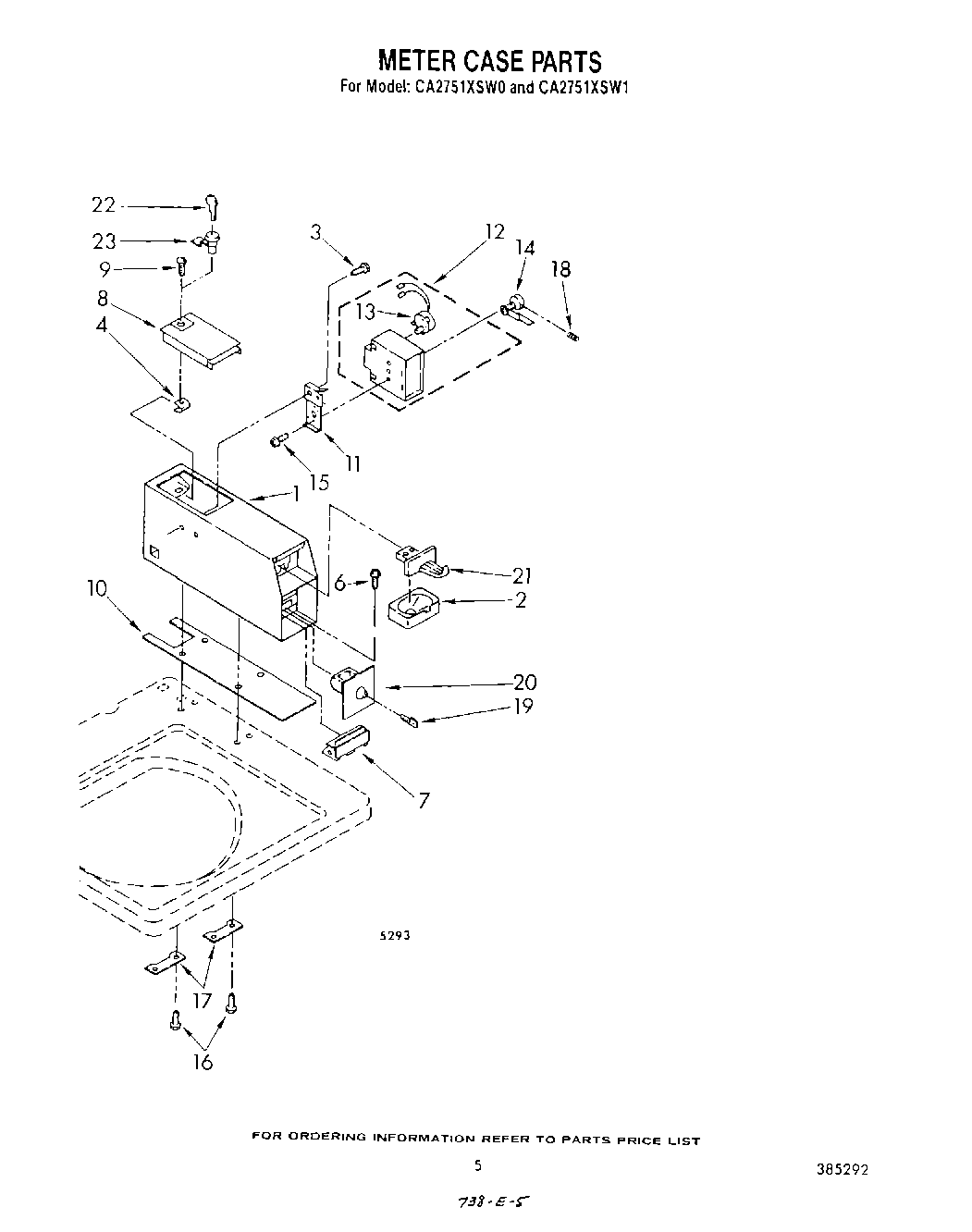

CA2751XSW1 04 – METER CASE

Products

PositionProduct
1Meter Case (White)
2WP385421 Whirlpool Coin Operated Laundry Funnel
3339805 Whirlpool Screw
4WP90406 Whirlpool Nut
5Lockwasher, 5/16
6Bolt, 5/16-24 x 3/4 (4)
7Guide, Drawer
8W11283272 Whirlpool Washer Dryer Meter Case Access Door
9Screw & Washer
10WP3954812 Whirlpool Cushion
11Bracket, Timer
12WP3955668 Whirlpool Timer
13Motor, Timer
14Clutch, Timer
15WP356418 Whirlpool Screw
16W10841059 Whirlpool Screw
173347825 Whirlpool Plate
18Setscrew, 10-32
19Key, Money Box
20Money Box With Box
21Coin Chute
22Key, Service Door
23Security Lock & Cam Assembly
23To Order Coin Mechanism Parts Contact One Of Vendors Listed.
23Reed Industries 1445 Rock Mountain Boulevard Stone Mountain, Georgia 30083
23H. GreenWald Company 1340 Metropolitan Avenue Brooklyn, New York 11237
23Equiptment Systems Devices 1401 Dreshertown Road Dresher, Pa 19025
