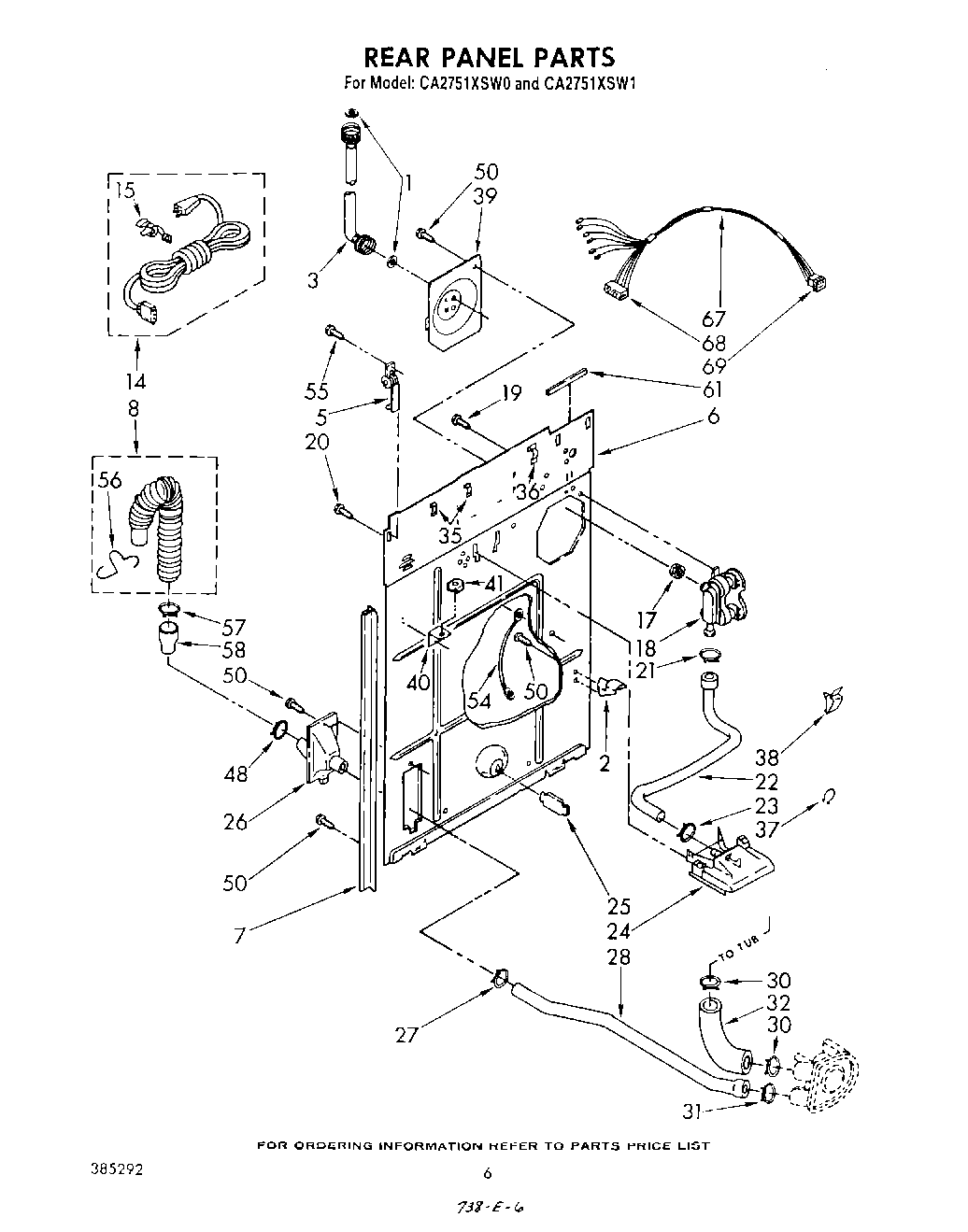

CA2751XSW1 05 – REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	Pin, Cabinet Guide (2)
3	WP89503 Whirlpool Washer Fill Hose
5	Hinge, Console (2)
6	285929 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
14	Cord, Power
15	Strain Relief, Power Cord
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	285805 Whirlpool Washer Water Inlet Valve
20	SCREW
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	WP3348552 Whirlpool Hose
30	WP371502 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
36	8528351 Whirlpool Clip
37	Clip, Harness (3)
38	Clip, Harness
39	285930 Whirlpool Plate
40	Bracket, Top Lock
41	WP90406 Whirlpool Nut
50	WP3390631 Whirlpool Screw
54	WPL 364089
55	WP308685 Whirlpool Microwave Screw
56	WPL 357247
57	WP616099 Whirlpool Clamp
58	WP384496 Whirlpool Hose Coupling
61	Edge Protector
67	Harness, Timer (Includes Illus. 68 & 69)
68	W10876590 Whirlpool Connector
69	Cap, Terminal (15 Way)
