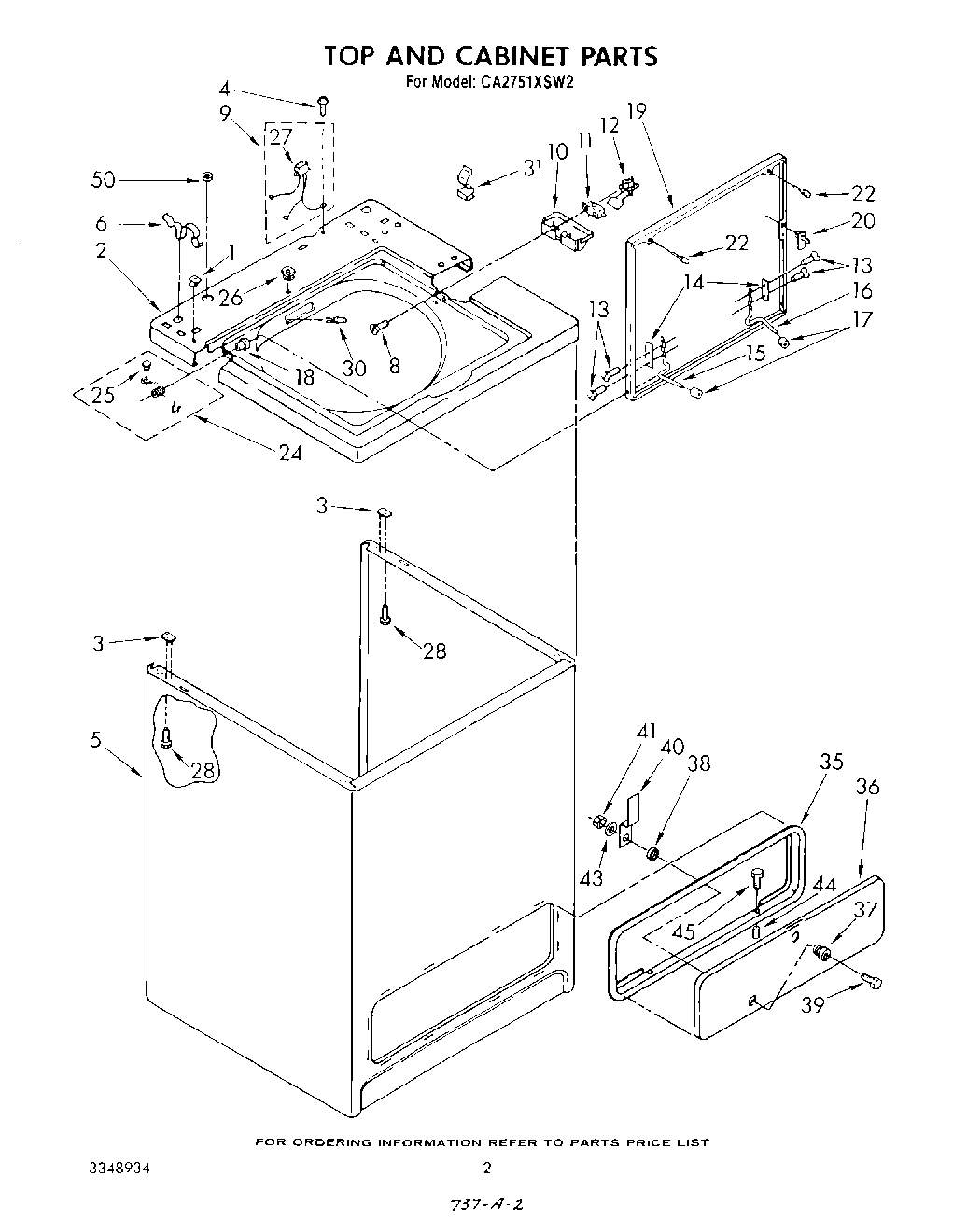

CA2751XSW2 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

CA2751XSW2 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Written by

in

CA2751XSW2 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT3349736
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WP285195 Whirlpool Sealer Assembly
Golden Harvest (Uncut)
Golden Harvest
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350572 Whirlpool Oil Transmission 15 Oz
WPL LIT3348934
Almond (Uncut)
Leveler (Thinner)
350938 Whirlpool Spray Gun
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
1Nut, Push-In (2)
2Top (Golden Harvest)
2Top (White)
2Top (Almond)
3WP62750 Whirlpool Spacer
5Cabinet (Golden Harvest)
5Cabinet (Almond)
5Cabinet (White)
6WP62780 Whirlpool Cabinet Clip
8Screw & Washer, Lid Switch (2)
9Harness, Lid Switch
10WP359231 Whirlpool Shield
11W10820036 Whirlpool Door Switch Kit
12Actuator, Lid Switch
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP91770 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Almond)
19WPW10193854 Whirlpool Lid Assembly
19Lid (Golden Harvest)
20WP358684 Whirlpool Strike Assembly
22BUMPER
24Spring & Button, Lid ((L.H.))
25Plug, Button
26Stop, Push-In Top
27Plug, Terminal (3-Way)
28SCREW
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
35Molding, Service Panel (Almond)
35Molding, Service Panel (Golden Harvest)
35Molding, Service Panel (White)
36Panel, Service (Golden Harvest)
36Panel, Service (White)
36Panel, Service (Almond)
37Housing, Lock
38Clip, Strain Relief
39Lock Screw
40Cam Lock
41Nut, 3/8-16
43Washer, Spring
44Stand Off (3)
45Screw, 6-32 x 1/4 (3)
50WP387371 Whirlpool Plug
