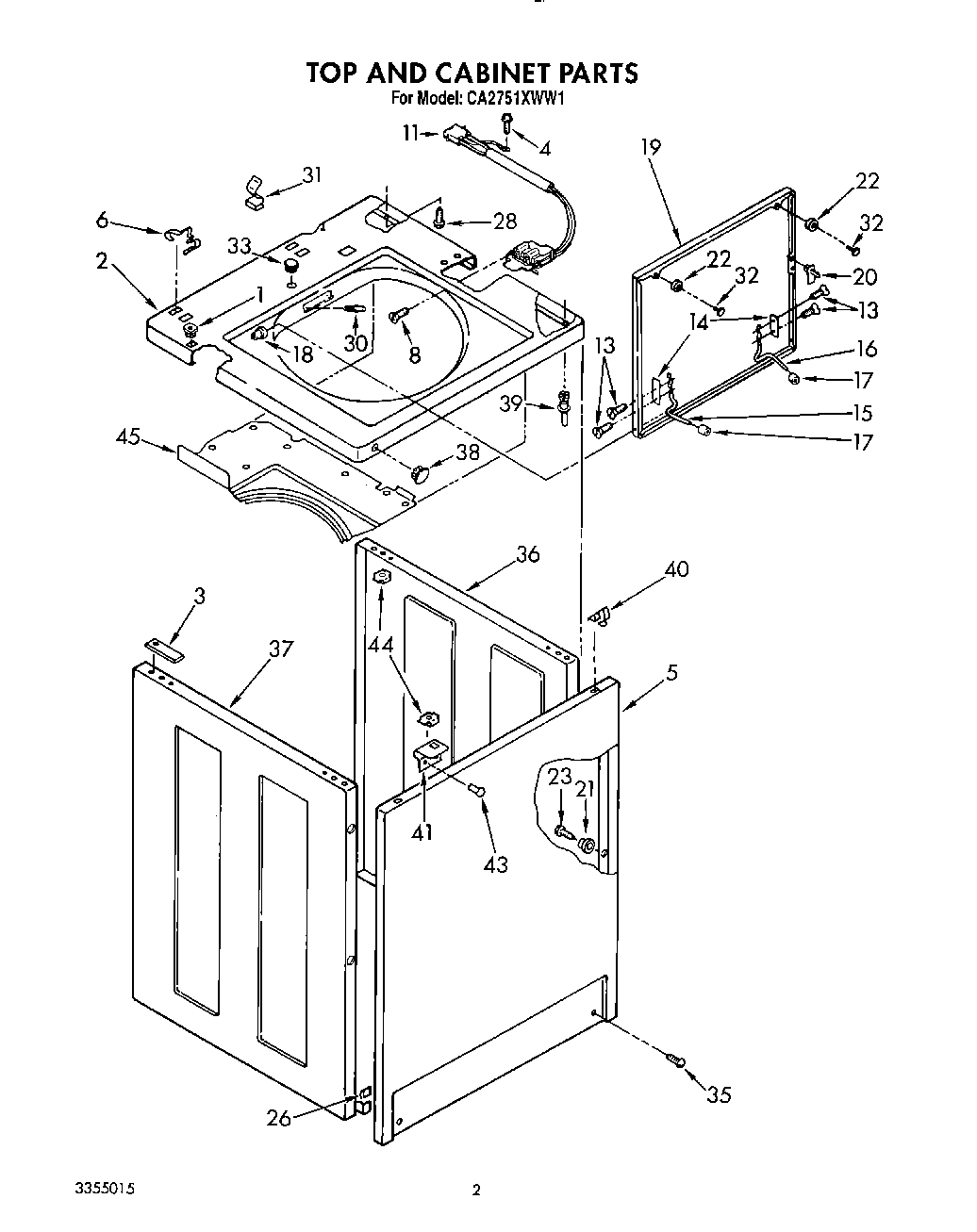

CA2751XWN1 02 – TOP AND CABINET, LIT/OPTIONAL

CA2751XWN1 02 – TOP AND CABINET, LIT/OPTIONAL

Written by

in

CA2751XWN1 02 – TOP AND CABINET, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT3355015
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
Shipping Kit
Golden Harvest (Uncut)
Golden Harvest
WPL LIT3355024
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350572 Whirlpool Oil Transmission 15 Oz
WPL LIT3356990
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
WP285195 Whirlpool Sealer Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
1Nut, Push-In (2)
2Top (White)
2Top (For Almond Model)
2Top (For Golden Harvest Model)
3Spacer, Cabinet To Top (4)
4SCREW
5WP3358500 Whirlpool Panel
5Panel, Front (Golden Harvest)
5Panel, Front (Almond)
6WP62780 Whirlpool Cabinet Clip
8WP3356311 Whirlpool Screw
11285671 Whirlpool Lid Switch Assembly
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP91770 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Golden Harvest)
19WPW10193854 Whirlpool Lid Assembly
19Lid (Almond)
20WP358684 Whirlpool Strike Assembly
21Locator (4)
22BUMPER
23WP9741232 Whirlpool Dishwasher Screw
26WP98234 Whirlpool Nut
28Screw (2)
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
32WP356907 Whirlpool Rivet
33Stop, Push-In Top
35WP3373329 Whirlpool Dishwasher Screw
36Panel, R. H. (Golden Harvest)
36Panel, R. H. (Almond)
36Panel, R. H. (White)
37Panel, L. H. (For Golden Harvest Model)
37Panel, L. H. (White)
37Panel, L. H. (Almond)
38WP387371 Whirlpool Plug
39Pin, Locator (2)
40WP18776 Whirlpool Lock
41Bracket, Lock
43Rivet (2)
44WP90406 Whirlpool Nut
45Shield, Lid Switch
