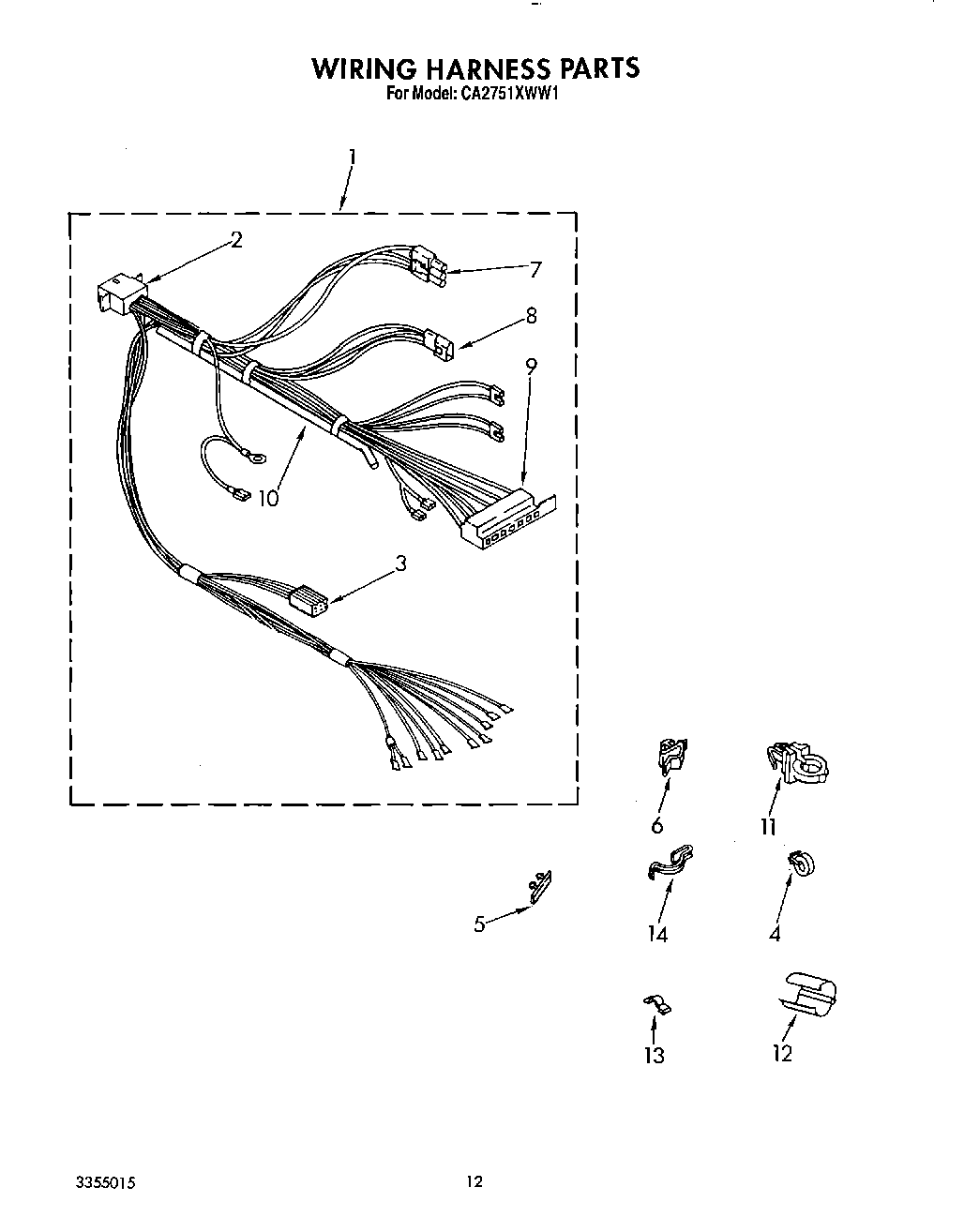

CA2751XWN1 10 – WIRING HARNESS

Products

PositionProduct
1Harness, Base & Pressure Switch Hose
2Plug, Terminal (15 Way)
2WP94614 Whirlpool Terminal
3WP596797 Whirlpool Terminal
3Plug, Terminal (6 Way)
48559320 Whirlpool Clip
5WP389379 Whirlpool Retainer
6Clip, Harness
7WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
8353424 Whirlpool Connector
9WP62505 Whirlpool Connector
10WP353244 Whirlpool Hose
11Clip, Harness
12Protector, Harness
138528351 Whirlpool Clip
