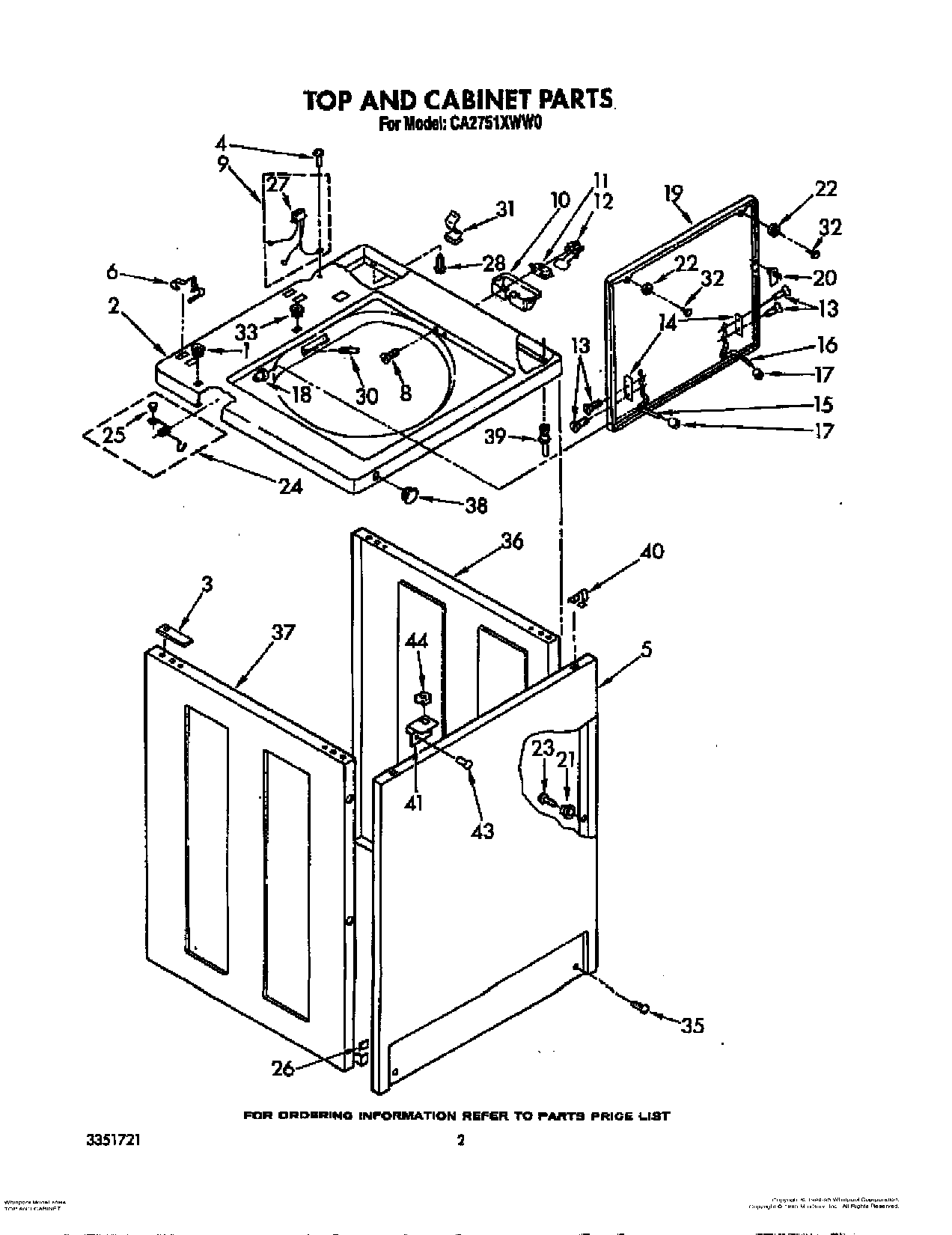

CA2751XWW0 02 – TOP AND CABINET, LIT/OPTIONAL

CA2751XWW0 02 – TOP AND CABINET, LIT/OPTIONAL

Written by

in

CA2751XWW0 02 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Golden Harvest
	Golden Harvest (Uncut)
	Shipping Kit
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WP285195 Whirlpool Sealer Assembly
	WPL LIT3351721
	WPL LIT3354199
	WPL LIT3354383
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350572 Whirlpool Oil Transmission 15 Oz
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	WP72107 Whirlpool Touchup
	350938 Whirlpool Spray Gun
	799344 Whirlpool Refrigerator Paint
	Leveler (Thinner)
	Almond (Uncut)
1	Nut, Push-In (2)
2	Top (White)
2	Top (Almond)
2	Top (Golden Harvest)
3	Spacer, Cabinet To Top (4)
4	SCREW
5	WP3358500 Whirlpool Panel
5	Panel, Front (Almond)
5	Panel, Front (Golden Harvest)
6	WP62780 Whirlpool Cabinet Clip
8	Screw & Washer, Lid Switch (2)
9	Harness, Lid Switch
10	WP359231 Whirlpool Shield
11	W10820036 Whirlpool Door Switch Kit
12	Actuator, Lid Switch
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP91770 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (Golden Harvest)
19	Lid (White)
19	Lid (Almond)
20	WP358684 Whirlpool Strike Assembly
21	Locator (4)
22	BUMPER
23	WP9741232 Whirlpool Dishwasher Screw
24	Spring & Button, Lid
25	Plug, Button
26	WP98234 Whirlpool Nut
27	Plug, Terminal (3-Way)
28	Screw (2)
30	Rivet, Serial Nameplate
31	WP90016 Whirlpool Clip
32	WP356907 Whirlpool Rivet
33	Stop, Push-In Top
35	WP3373329 Whirlpool Dishwasher Screw
36	Panel, R. H. (Golden Harvest)
36	Panel, R. H. (White)
36	Panel, R. H. (Almond)
37	Panel, L. H. (White)
37	Panel, L. H. (Almond)
37	Panel, L. H. (For Golden Harvest Model)
38	WP387371 Whirlpool Plug
39	Pin, Locator (2)
40	WP18776 Whirlpool Lock
41	Bracket, Lock
43	Rivet (2)
44	WP90406 Whirlpool Nut
