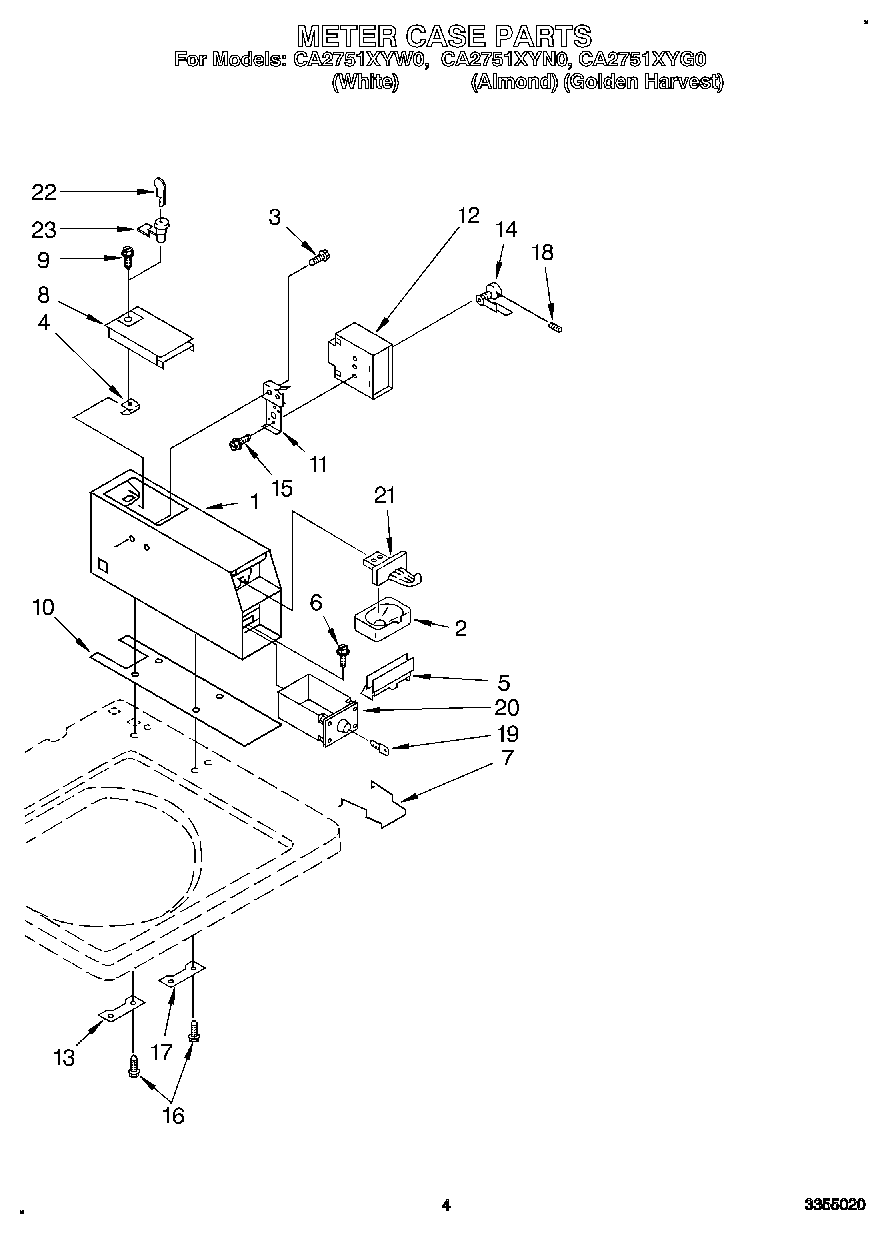

CA2751XYW0 03 – METER CASE

Products

Position	Product
1	Meter Case (White)
1	Meter Case (For Golden Harvest Model)
1	Meter Case (For Almond Model)
2	WP385421 Whirlpool Coin Operated Laundry Funnel
3	339805 Whirlpool Screw
4	WP90406 Whirlpool Nut
5	Spacer, Money Vault (Golden Harvest)
5	Spacer (Money Vault) (White)
5	Spacer, Money Vault (For Almond Model)
6	W11715721 Whirlpool Screw Assembly
6	3353994 Whirlpool Screw Assembly
7	Guide, Drawer
8	Door, Service (For Almond Model)
8	Door, Service (New Gold)
8	W11283272 Whirlpool Washer Dryer Meter Case Access Door
9	Screw & Washer
10	WP3954812 Whirlpool Cushion
11	Bracket, Timer
12	Timer (With 2nd Rinse Cycle)
12	WP3355023 Whirlpool Timer
13	Plate, Mounting
14	Clutch, Timer
14	WP354987 Whirlpool C-Clip
15	WP356418 Whirlpool Screw
16	W10841059 Whirlpool Screw
17	3347825 Whirlpool Plate
18	Setscrew, 10-32
