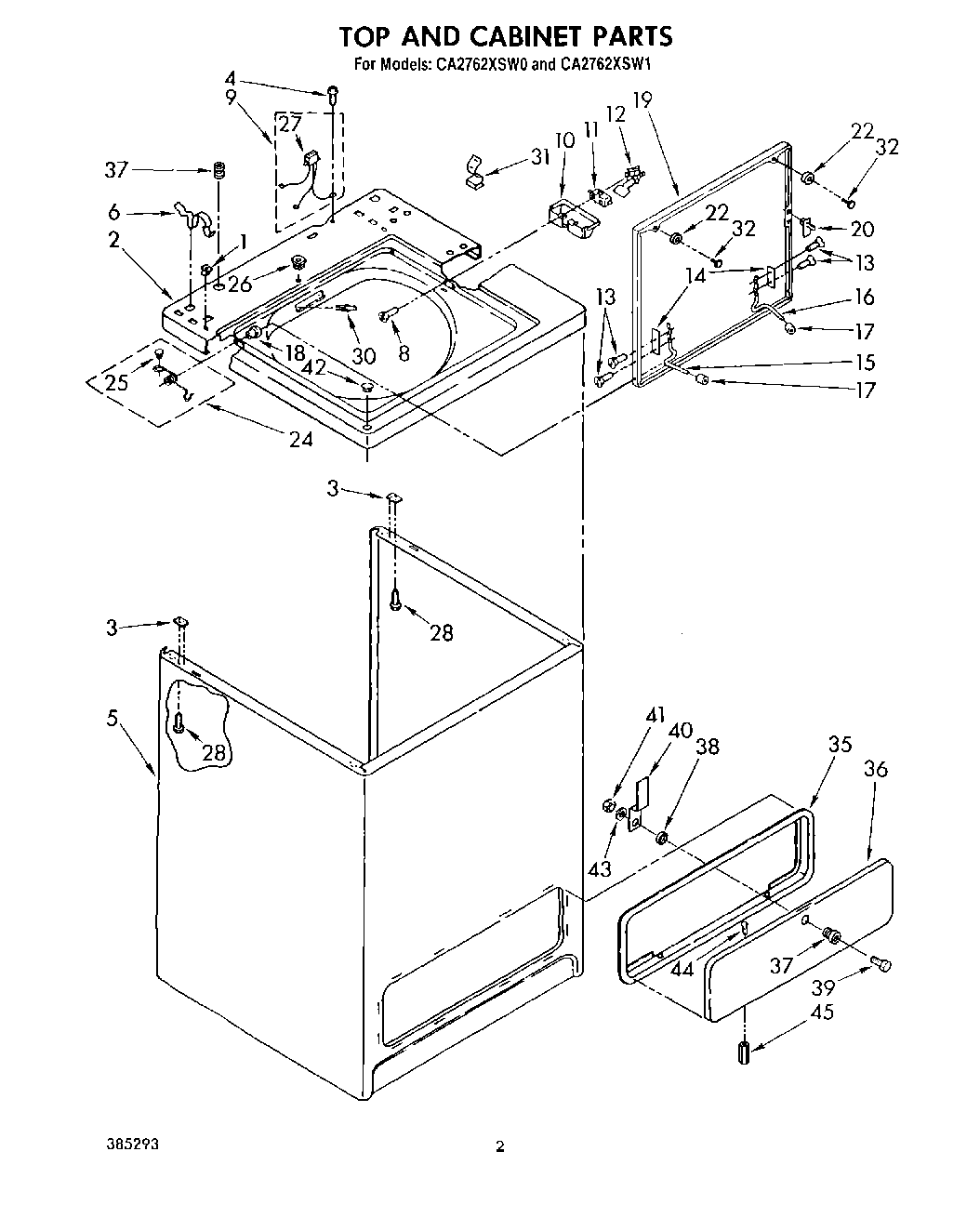

CA2762XSW0 02 – TOP AND CABINET, LIT/OPTIONAL

CA2762XSW0 02 – TOP AND CABINET, LIT/OPTIONAL

Written by

in

CA2762XSW0 02 – TOP AND CABINET, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WPL LIT387194
Golden Harvest (Uncut)
WPL LIT385238
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WPL LIT387736
WP285195 Whirlpool Sealer Assembly
WPL LIT385293
350572 Whirlpool Oil Transmission 15 Oz
799344 Whirlpool Refrigerator Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
WPL 261880
1Nut, Push-In (2)
2Top (Golden Harvest)
2Top (White)
2Top (Almond)
3WP62750 Whirlpool Spacer
4SCREW
5Cabinet (White)
5Cabinet (Almond)
5Cabinet (Golden Harvest)
6WP62780 Whirlpool Cabinet Clip
8Screw & Washer, Lid Switch (2)
9Harness, Lid Switch
10WP359231 Whirlpool Shield
11W10820036 Whirlpool Door Switch Kit
12Actuator, Lid Switch
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP91770 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Golden Harvest)
19WPW10193854 Whirlpool Lid Assembly
19Lid (Almond)
20WP358684 Whirlpool Strike Assembly
22BUMPER
24Spring & Button, Lid ((R.H.))
24Spring & Button, Lid ((L.H.))
25Plug, Button
26Stop, Push-In Top
27Plug, Terminal (3-Way)
28WP3390631 Whirlpool Screw
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
32WP356907 Whirlpool Rivet
35Molding, Service Panel (Golden Harvest)
35Molding, Service Panel (Almond)
35Molding, Service Panel (White)
36Panel, Service (Almond)
36Panel, Service (Golden Harvest)
36Panel, Service (White)
37Housing, Lock
38Clip, Strain Relief
39Lock Screw
40Cam Lock
41WP358160 Whirlpool Nut
42WP387371 Whirlpool Plug
43Washer, Spring
44Screw,
45Stand Off (3)
